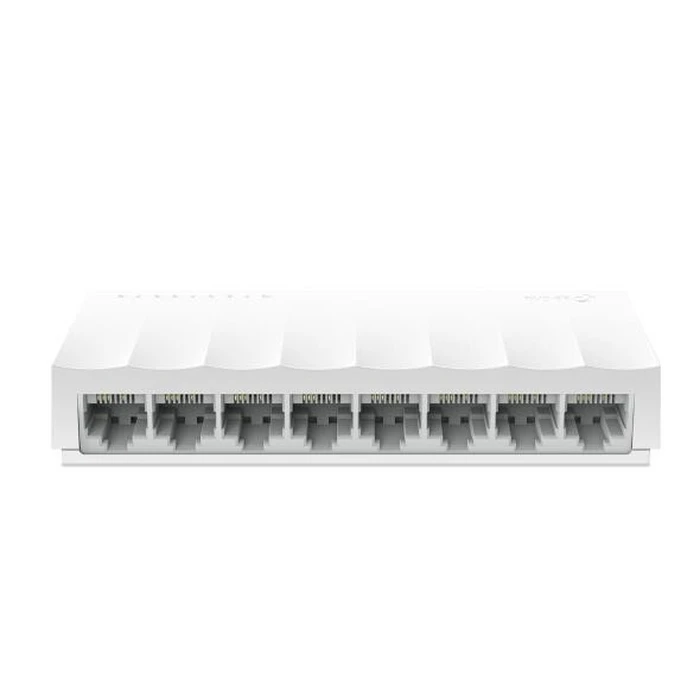

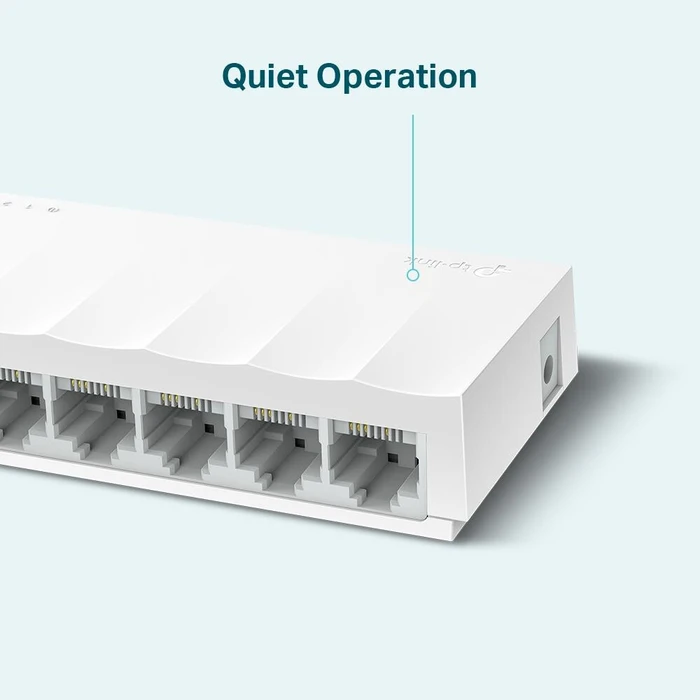

Network Switch TP-LINK LS1008 Unmanaged (10/100) White v1

Technical Specifications

• Switch type
  Unmanaged
• Basic switching RJ-45 Ethernet ports quantity
  8
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Networking standards
  IEEE 802.3iIEEE 802.3uIEEE 802.3x
• 10G support
  N
• Flow control support
  Y
• Auto MDI/MDI-X
  Y
• Auto-negotiation
  Y
• Switching capacity
  1.6 Gbit/s
• Forwarding rate
  1.2 Mpps
• MAC address table
  2000 entries
• Store-and-forward
  Y
• Jumbo frames support
  Y
• Jumbo frames
  2000
• Packet buffer memory
  0.75 MB
• Product colour
  White
• Housing material
  Plastic
• Wall mountable
  Y
• Power supply included
  N
• DC input voltage
  5 V
• Input current
  0.6 A
• Power consumption (max)
  2.64 W
• Power over Ethernet (PoE)
  N
• Operating temperature (T-T)
  0 - 40 °C
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  5 - 90%
• Heat dissipation
  9.002 BTU/h
• Width
  124.6 mm
• Depth
  48.7 mm
• Height
  22.8 mm
• Quick start guide
  Y
