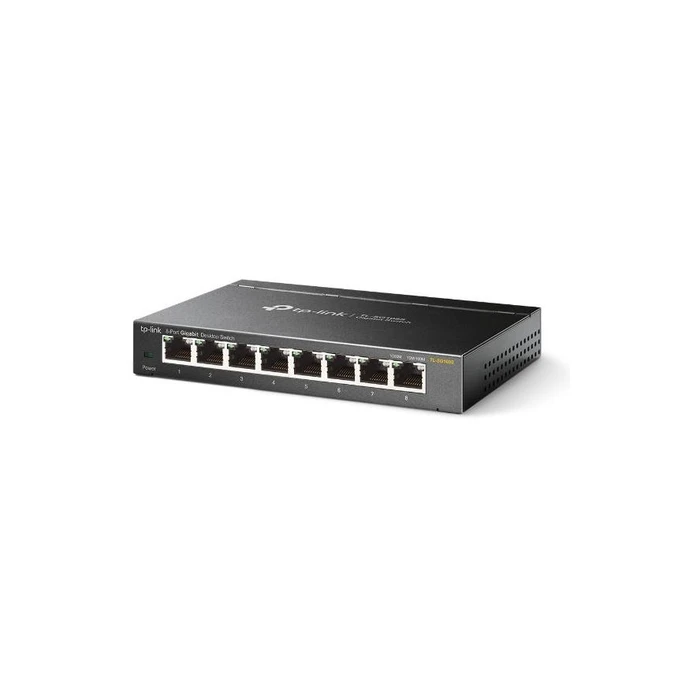

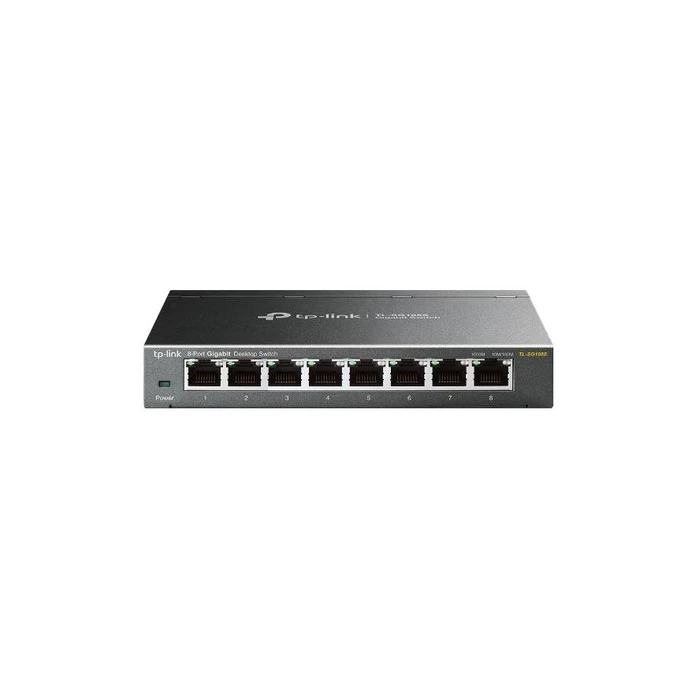

Network Switch TP-Link 8x GE TL-SG108s metal housing v1

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) connections
  8th
• Network standard
  IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• supported cable types
  Cat3, Cat4, Cat5, Cat5e
• Full duplex
  yes
• Auto-aging of MAC addresses supported
  yes
• Self-learning of MAC addresses supported
  yes
• Auto-negotiation function
  yes
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Data packet buffer memory
  1.5 MB
• MAC address table
  4096 entries
• Routing / switching capacity
  16 Gbit / s
• Transfer rate
  11.9 Mpps
• Store-and-forward
  yes
• Jumbo frames support
  yes
• Jumbo frames
  16000
• IGMP snooping
  yes
• Multicast support
  yes
• Certification
  CE, FCC, RoHS
• Rack installation
  no
• Product color
  black
• LED indicators
  yes
• Wall mounting
  yes
• Switch type
  Unmanaged
• Switch level
  L2
• Quality of Service (QoS) support
  yes
• Plug & Play
  yes
• Packaging width
  191 mm
• Packaging depth
  130 mm
• Packing height
  92 mm
• Package weight
  520 g
• Supplied cables
  AC
• Quick start overview
  yes
• Rubber feet
  yes
• Packaging type
  box
• AC power adapter
  yes
• width
  158 mm
• depth
  100.6 mm
• height
  25.4 mm
• Operating temperature range
  0 - 40 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  5 - 90%
• Power over Ethernet (PoE)
  no
• Power supply included
  yes
• AC input voltage
  220 V
• AC input frequency
  50 Hz
• DC input voltage
  9 V
• Input current
  0.6 A
• Output voltage
  9 V
• Output current
  0.6 A
• Power consumption (max.)
  3.3 W
