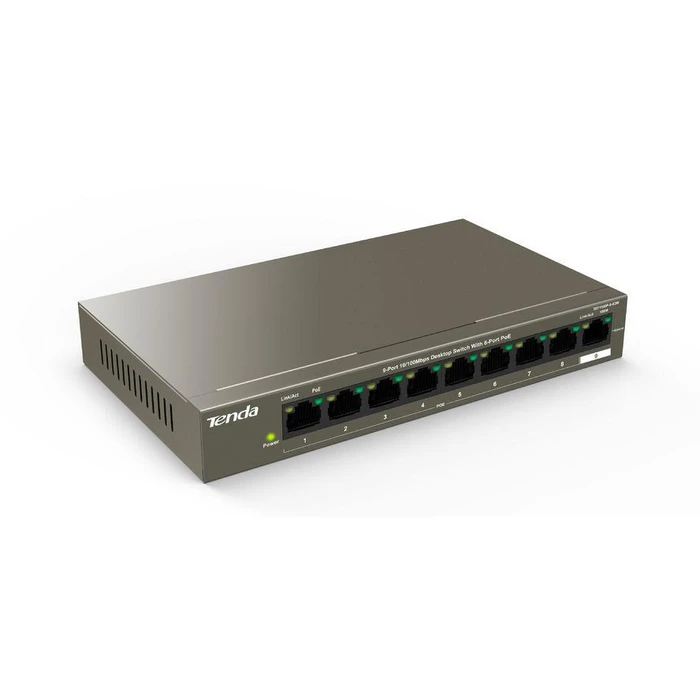

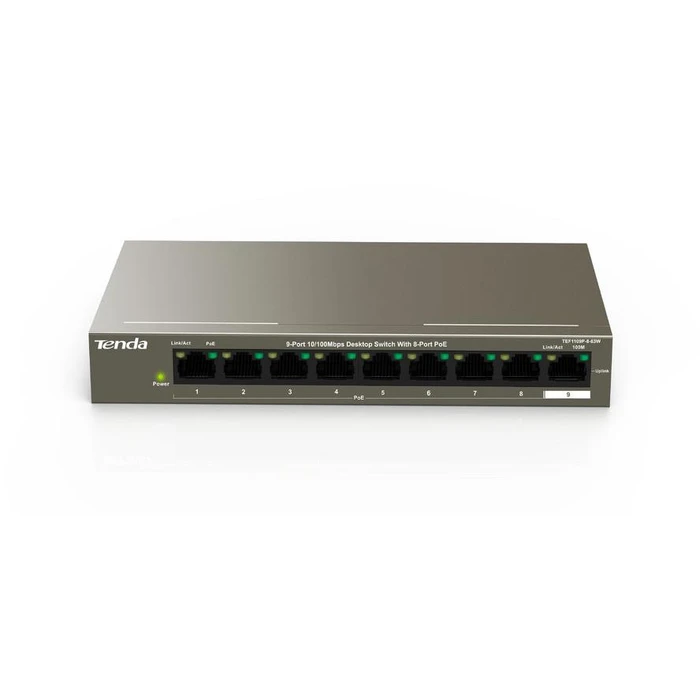

Network Switch Tenda 9-Port FE TEF1109P-8-63W 58W (8x PoE)

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  9
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• VLAN support
  yes
• Network standard
  IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• MAC address table
  4000 entries
• Routing / switching capacity
  1.8 Gbit / s
• Certification
  3C, FCC, CE, ROHS
• Product color
  black
• LED indicators
  Activity, link, PoE, power
• Mean Time Between Failures (MTBF)
  50000 h
• width
  177.5 mm
• depth
  104 mm
• height
  26 mm
• Operating temperature range
  0 - 40 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  5 - 90%
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet (PoE) connections
  8th
• Power over Ethernet (PoE) power per connection
  30 W
• Total power over Ethernet (PoE)
  58 W
• Pressure rise protection
  yes
• Pressure rise protection voltage
  6 kV
• AC input voltage
  100-240V
• AC input frequency
  50-60 Hz
• DC input voltage
  51 V
• Input current
  1.25 A
• Power consumption (max.)
  63 W
