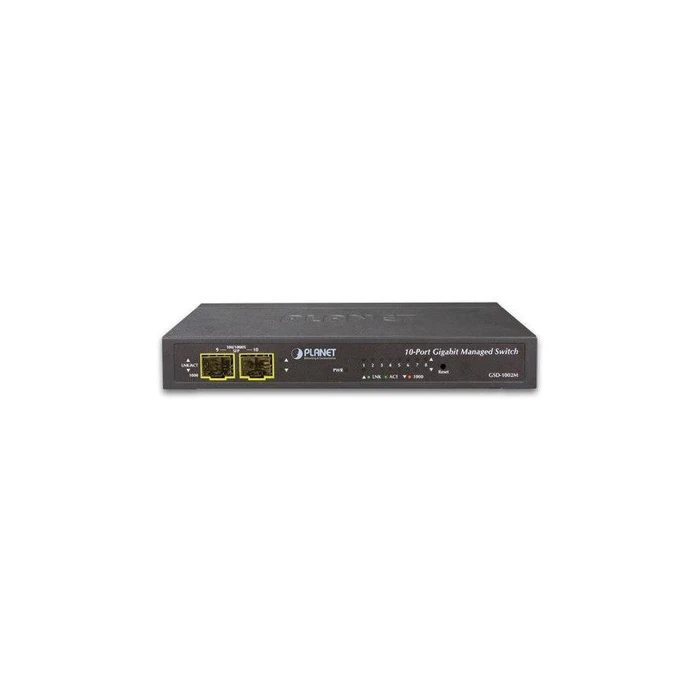

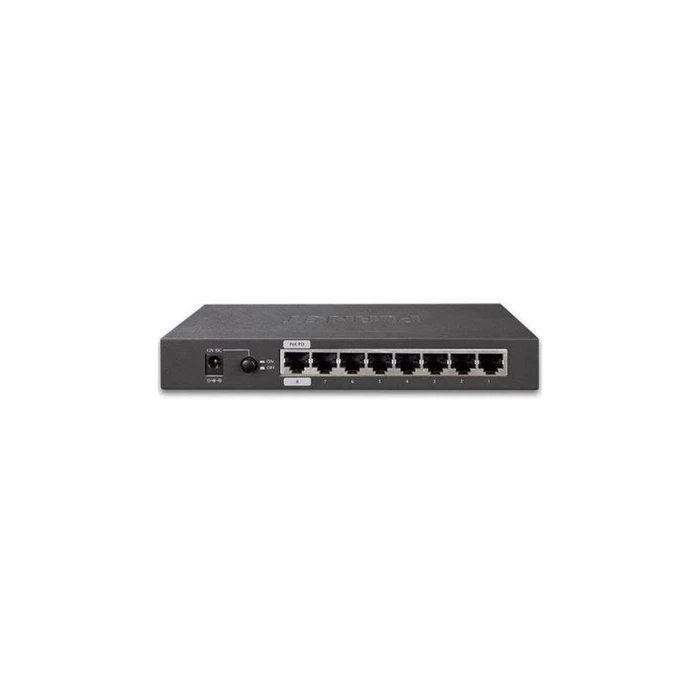

Network Switch PLANET 8-Port GE + 2-Port SFP Managed Desktop

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  2
• VLAN support
  yes
• Network standard
  IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u , IEEE 802.3x, IEEE 802.3z
• 10G support
  no
• Full duplex
  yes
• Auto MDI / MDI-X
  yes
• MAC address table
  8000 entries
• Routing / switching capacity
  20 Gbit / s
• Passage
  14.8 Mpps
• Store-and-forward
  yes
• IGMP snooping
  yes
• Supported security algorithms
  SNMP, SSH, SSL / TLS
• Filter MAC addresses
  yes
• SSH / SSL support
  yes
• Supported network protocols
  IPv4 / IPv6 IP-based ACL / MAC-based ACL
• Certification
  FCC Part 15 Class A, CE
• Form factor
  1U
• Product color
  black
• LED indicators
  Activity, link, performance
• MIB support
  RFC 3635 Ethernet-like MIB, RFC 2863 Interface Group MIB, RFC 2819 RMON (1, 2, 3, 9), RFC 1493 Bridge MIB
• Switch type
  Managed
• Switch level
  L2 +
• Quality of Service (QoS) support
  yes
• Buffer size
  512 KB
• width
  191 mm
• depth
  86 mm
• height
  26 mm
• Weight
  396 g
• Heat dissipation
  37.2 BTU / hour
• Operating temperature range
  0 - 50 ° C
• Storage temperature range
  -20 - 70 ° C
• Humidity in operation
  5 - 95%
• Storage humidity
  5 - 95%
• Input voltage
  12 V
• Number of power supply units
  1
• Power consumption (in operation)
  10.9 W
