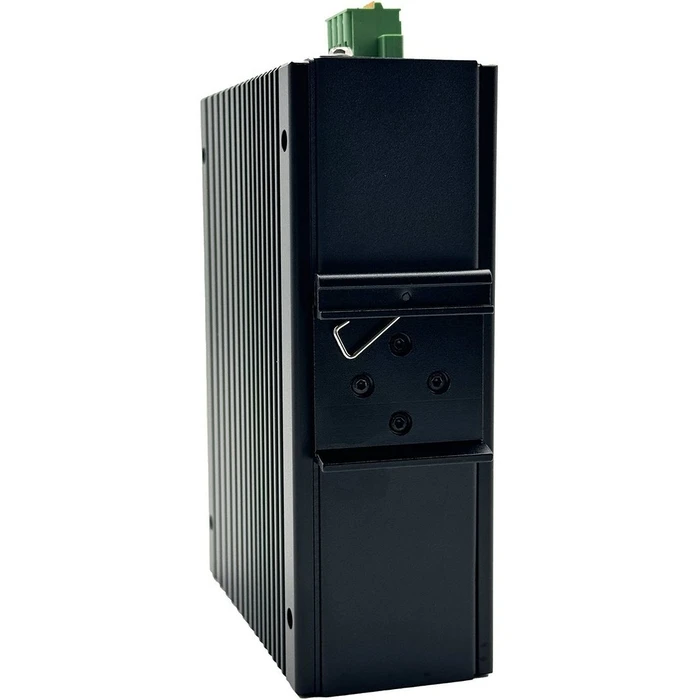

Network Switch LevelOne 10x GE IGU-1071 8x 1GbE,2x 2.5GbE SFP sw

Technical Specifications

• Master (outer) cases per pallet (air)
  28 pc(s)
• Pallet gross length
  80 cm
• Pallet gross width
  120 cm
• Pallet height (air)
  164.4 cm
• Compliance certificates
  CE, Federal Communications Commission (FCC), RoHS, UKCA
• Basic switching RJ-45 Ethernet ports quantity
  8
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity
  8
• SFP module slots quantity
  2
• Console port
  RJ-45
• Width
  54 mm
• Depth
  115 mm
• Height
  158 mm
• Weight
  1.12 kg
• Power source
  DC
• Power supply included
  No
• Redundant power supply (RPS) support
  Yes
• Number of power supply units
  2
• DC input voltage
  12 - 58 V
• Power consumption (max)
  10 W
• Surge protection
  Yes
• Surge protection voltage
  6 kV
• Operating temperature (T-T)
  -40 - 75 °C
• Storage temperature (T-T)
  -40 - 85 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  5 - 95%
• IP Source Guard (IPSG)
  Yes
• Networking standards
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• 10G support
  No
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
• Port mirroring
  Yes
• Flow control support
  Yes
• Link aggregation
  Yes
• Spanning tree protocol
  Yes
• Ethernet Ring Protection Switching (ERPS)
  Yes
• VLAN support
  Yes
• MAC address table
  16000 entries
• Switching capacity
  26 Gbit/s
• Forwarding rate
  38.6 Mpps
• Jumbo frames support
  Yes
• Jumbo frames
  10000
• Packet buffer memory
  12 MB
• Cables included
  LAN (RJ-45)
• Quick start guide
  Yes
• Terminal block included
  Yes
• DIN rail included
  Yes
• Package width
  230 mm
• Package depth
  180 mm
• Package height
  70 mm
• Package weight
  1.38 kg
• DHCP features
  DHCP server
• Access Control List (ACL)
  Yes
• IGMP snooping
  Yes
• Security algorithms
  HTTPS, SSH
• IP-MAC-Port binding
  Yes
• Authentication
  MAC-based authentication, Port-based authentication
• Authentication type
  IEEE 802.1x, RADIUS
• Switch type
  Managed
• Switch layer
  L2+
• Quality of Service (QoS) support
  Yes
• Web-based management
  Yes
• ARP inspection
  Yes
• Configuring Location Settings (CLI)
  Yes
• System event log
  Yes
• Remote administration
  Y
• Product colour
  Black
• LED indicators
  Power, System
• International Protection (IP) code
  IP40
• DIN rail mounting
  Yes
• Country of origin
  China
