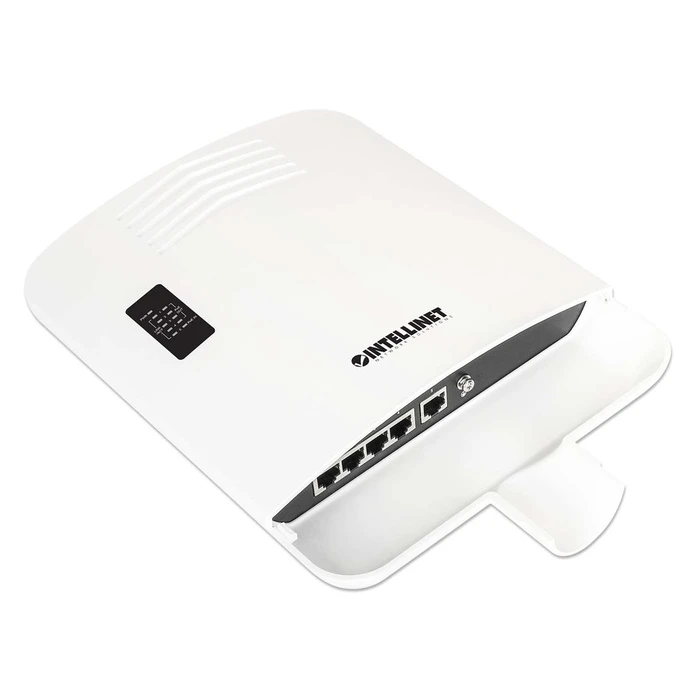

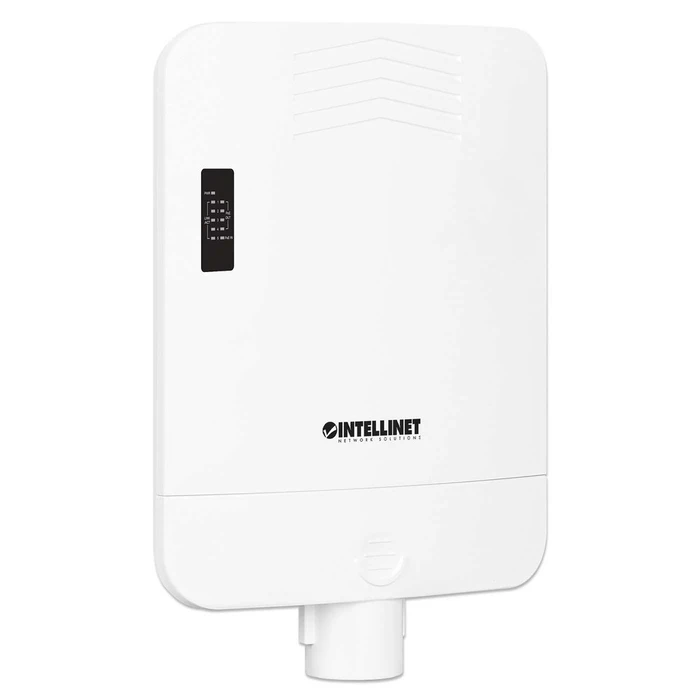

Network Switch Intellinet Outdoor 5-Port Gig PoE Passthrough

Technical Specifications

• MAC address table
  2k
• Buffer memory
  2 Mbits
• Forwarding rate
  7.44 Mpps
• MTBF
  >50k hours
• Backplane speed/switch fabric
  10 Gbps
• Switch architecture
  store and forward
• Certifications
  FCC, CE, RoHS, UKCA, NDAA
• Pin 1
  DC (-)
• Pin 2
  DC (-)
• Pin 3
  DC (+)
• Pin 4
  DC (+)
• Pin 5
  DC (+)
• Pin 6
  DC (+)
• Pin 7
  DC (-)
• Pin 8
  DC (-)
• Pin 1
  DC (-)
• Pin 2
  DC (-)
• Pin 3
  DC (+)
• Pin 6
  DC (+)
• PoE input voltage
  50.0 57.0 V DC
• 90.0 W (IEEE 802.3bt) input
  85 W total output
• 30.0 W (IEEE 802.3at) input
  25.0 W total output
• 15.4 W (IEEE 802.3af) input
  10.4 W total output
• Dimensions (L x W x H)
  299 x 206 x 65 mm (11.77 x 8.11 x 2.66 in.)
• Net weight
  1 kg (2.2 lbs.)
• Gross weight
  1.3 kg (2.87 lbs.)
• Operating temperature
  -40 80°C (-40 176°F)
• Storage temperature
  -40 80°C (-40 176°F)
• Operating humidity
  up to 90% RH, non-condensing
• Storage humidity
  up to 95% RH, non-condensing
