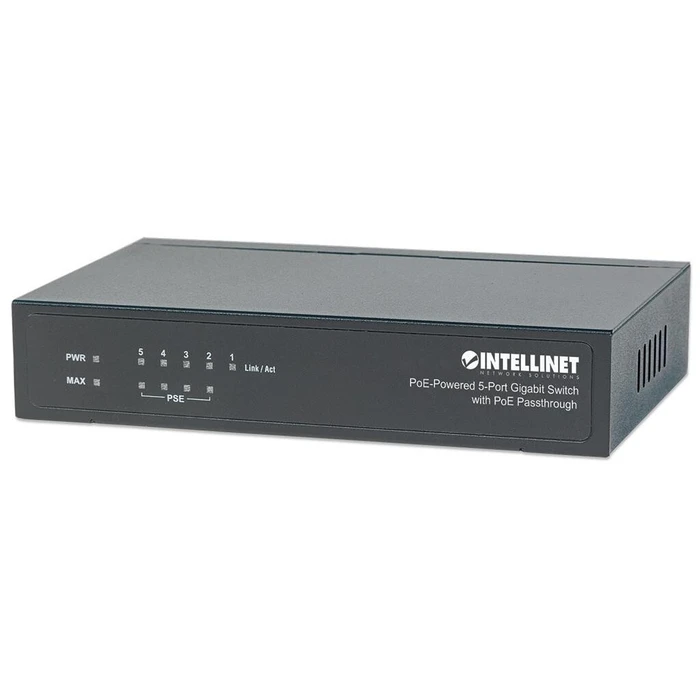

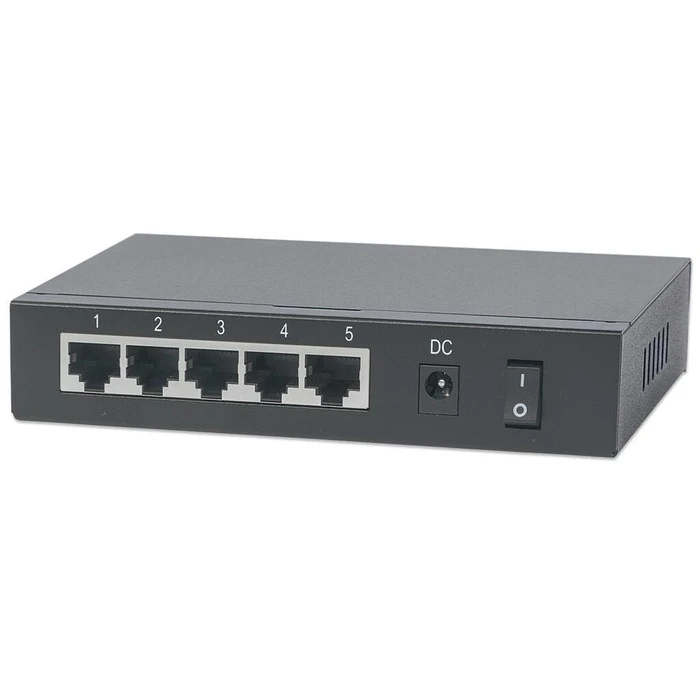

Network Switch Intellinet 5x GE 4x PSE PoE+ 1x PD IEEE 802.3az

design
certificationFCC Class B, CE, RoHS
Colour of productblack
LED displaysActivity, Link, Power
housing materialmetal
power
buffer size256 KB
energy
AC input voltage100-240 V
AC input frequency50/60 Hz
output voltage48 V
output current1.5A
Power consumption (max.)75 W
input power2.5
Power over Ethernet (PoE)
Power over Ethernet (PoE) support
Total output Power over Ethernet (PoE)26 W
Connectors and Interfaces
Number of base switching RJ-45 Ethernet ports5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Copper Ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
supported cable typesCat5e, Cat6
10G support no
Flow control support
data transmission
MAC address table2048 entries
Routing / Switching capacity10 Gbit / s
Store-and-Forward
Packet forwarding rate (100 Mbit / s)148800 pps
Packet forwarding rate (1 Gbit / s)1488000 pps
Packet forwarding rate (10 Mbit / s)14880 pps
Weight & dimensions
width140 mm
depth78 mm
height28 mm
mass600 g
operating conditions
Temperature range in operation0 - 40 ° C
Storage temperature range0 - 70 ° C
Humidity in operation10 - 90%
packaging information
operating manual
AC power adapter
cables includedAC
