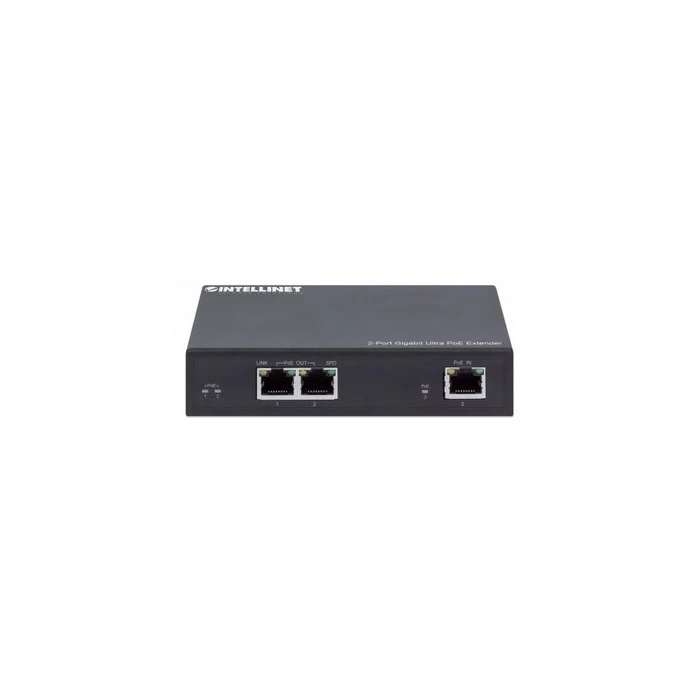

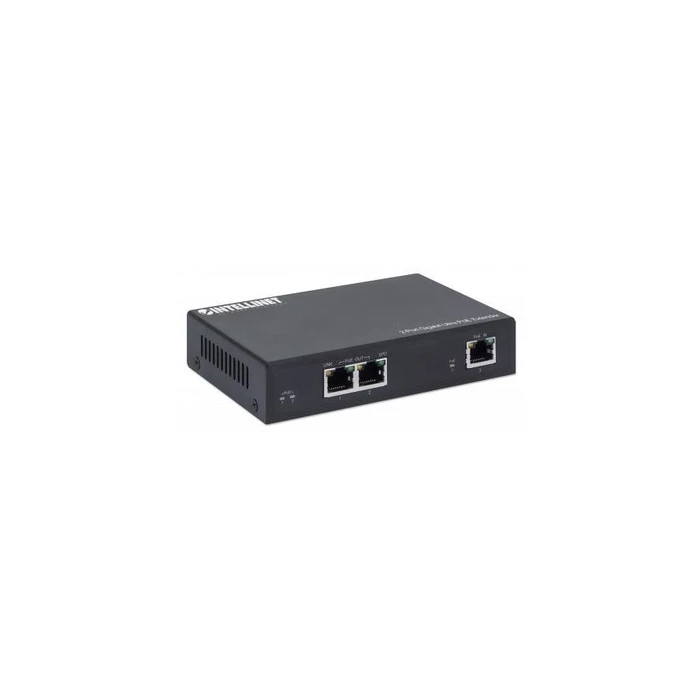

PoE Adapter INTELLINET 2-Port Gigabit Ultra PoE-Extender 60W

Technical Specifications

• Cabling technology
  10/100 / 1000Base-T (X)
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
• Number of Ethernet LAN ports (RJ-45)
  3
• Number of Power over Ethernet (PoE) connections
  2
• Certification
  FCC A, CE
• Product color
  black
• Housing material
  metal
• LED indicators
  Activity, Link, PoE
• Power over Ethernet (PoE)
  yes
• Total power over Ethernet (PoE)
  60 W
• Power over Ethernet (PoE) voltage range
  44-57 V.
• Operating temperature range
  0 - 40 ° C
• Storage temperature range
  -10 - 70 ° C
• Humidity in operation
  20-85%
• width
  130 mm
• depth
  86 mm
• height
  29 mm
• Weight
  331 g
• Type
  Network transmitter
• Maximum possible transmission distance
  100 m
• Data transfer rate
  6000 Mbit / s
• supported cable types
  Cat5e
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Support data flow control
  yes
• MAC address table
  2048 entries
• Jumbo frames support
  yes
• Duplex system
  Full
• Sustainability certificates
  RoHS
• operating manual
  yes
