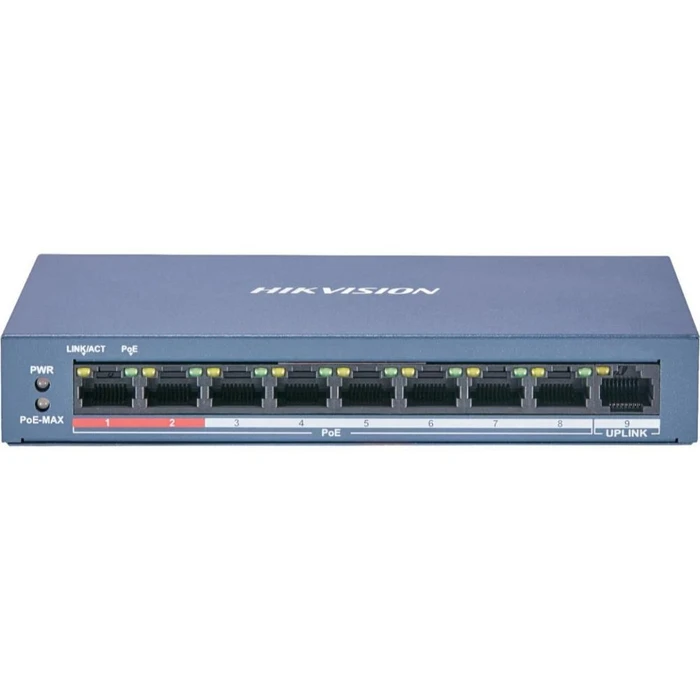

The Hikvision DS-3E0109P-E/M(B) is a proficient layer 2 (L2) 100M PoE switch tailored for surveillance and network applications.
This device is specifically designed to enhance performance in high-priority surveillance settings, featuring:
- 8 x 100M PoE ports for extensive power and data transmission.
- 1 x 100M Ethernet port for standard connections.
With adherence to IEEE 802.3at and IEEE 802.3af standards, the switch guarantees compatibility with a multitude of devices. Moreover, its PoE power management capabilities ensure efficient power output, reaching a maximum of 30 W per port and a total budget of 60 W.
In terms of performance, the switch boasts:
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.339 Mpps
This advanced switch features:
- Surge Protection: 6 KV for PoE ports
- Long-Distance Transmission: up to 250 meters
Its robust design ensures high reliability and efficiency across diverse network environments.
-
Number of Ports9
-
Port TypeRJ45 ports, full duplex, MDI/MDI-X adaptive
-
Port Configuration8 x 100M PoE ports, 1 x 100M Ethernet port
-
PoE StandardsIEEE 802.3at/af
-
Maximum Port Power30 W
-
Total Power Budget60 W
-
Switching Capacity1.8 Gbps
-
Packet Forwarding Rate1.339 Mpps
-
Internal Cache1 Mbits
-
Power Supply Standard48 VDC, 1.35 A
-
Power Consumption Idle5 W
-
Max Power Consumption65 W
-
Dimensions170 mm x 27.6 mm x 93.1 mm
-
Weight0.35 kg
-
Shell MaterialMetal, fan-free design
-
Operating Temperature0°C to 40°C
-
Storage Temperature-40°C to 85°C
-
Relative Humidity5% to 95%
-
Surge Protection6 KV for PoE ports
-
High Priority PortsYes
-
Long-Distance TransmissionUp to 250 m
-
Wire-Speed ForwardingYes
Ratings
Description
The Hikvision DS-3E0109P-E/M(B) is a proficient layer 2 (L2) 100M PoE switch tailored for surveillance and network applications.
This device is specifically designed to enhance performance in high-priority surveillance settings, featuring:
- 8 x 100M PoE ports for extensive power and data transmission.
- 1 x 100M Ethernet port for standard connections.
With adherence to IEEE 802.3at and IEEE 802.3af standards, the switch guarantees compatibility with a multitude of devices. Moreover, its PoE power management capabilities ensure efficient power output, reaching a maximum of 30 W per port and a total budget of 60 W.
In terms of performance, the switch boasts:
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.339 Mpps
This advanced switch features:
- Surge Protection: 6 KV for PoE ports
- Long-Distance Transmission: up to 250 meters
Its robust design ensures high reliability and efficiency across diverse network environments.
Technical Specifications
-
Number of Ports9
-
Port TypeRJ45 ports, full duplex, MDI/MDI-X adaptive
-
Port Configuration8 x 100M PoE ports, 1 x 100M Ethernet port
-
PoE StandardsIEEE 802.3at/af
-
Maximum Port Power30 W
-
Total Power Budget60 W
-
Switching Capacity1.8 Gbps
-
Packet Forwarding Rate1.339 Mpps
-
Internal Cache1 Mbits
-
Power Supply Standard48 VDC, 1.35 A
-
Power Consumption Idle5 W
-
Max Power Consumption65 W
-
Dimensions170 mm x 27.6 mm x 93.1 mm
-
Weight0.35 kg
-
Shell MaterialMetal, fan-free design
-
Operating Temperature0°C to 40°C
-
Storage Temperature-40°C to 85°C
-
Relative Humidity5% to 95%
-
Surge Protection6 KV for PoE ports
-
High Priority PortsYes
-
Long-Distance TransmissionUp to 250 m
-
Wire-Speed ForwardingYes
