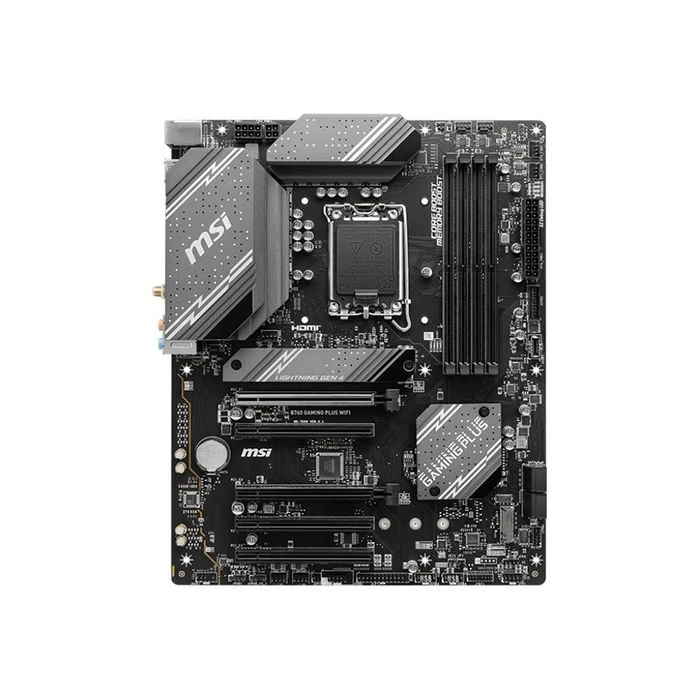

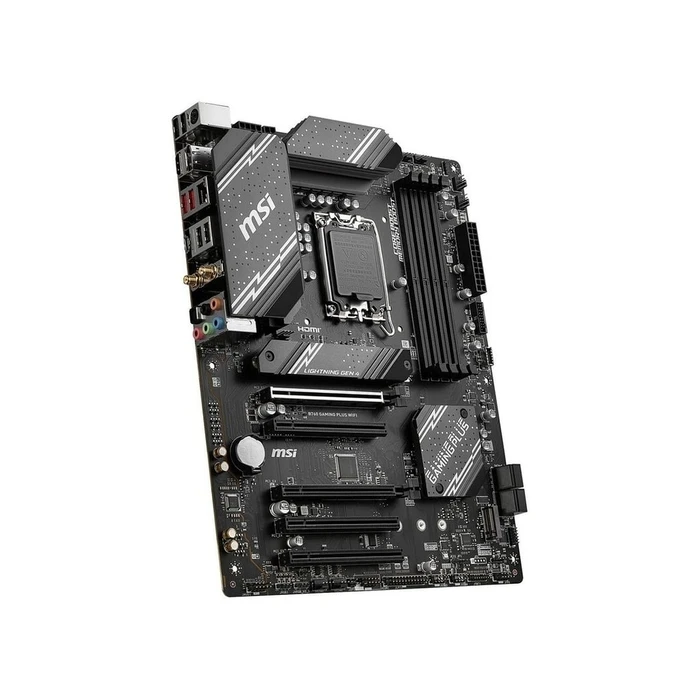

Motherboard MSI Intel 1700 B760 GAMING PLUS WIFI

Technical Specifications

• Installed number
  0
• Max number supported
  1
• form factor
  ATX
• chipset
  Intel B760
• Supported RAM technology
  DDR5 SDRAM
• Supported RAM integrity check
  Non ECC
• Supported RAM speed
  5800MHz(OC), 6000MHz(OC), 4800MHz, 6200MHz(OC), 6400MHz(OC), 6600MHz(OC), 6800MHz(OC), 5200MHz, 5000MHz, 5600MHz, 5400MHz
• processor socket
  LGA1700 socket
• power connections
  ATX12V connector 4-pin, main power connector 24-pin, ATX12V connector 8-pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  4 DIMM slots
• Internal interfaces
  1 x USB-C 3.2 Gen 2 header, 1 x Audio header, 1 x Serial header, 4 x USB 2.0 header, 1 x Thunderbolt header, 2 x USB 3.2 Gen 1 header, 1 x SPI header
• performance characteristics
  Intel Extreme Memory Profiles (XMP) 3.0, dual-channel memory architecture
• Max supported size
  192GB
• Type
  Graphics adapter (CPU required)
• Type
  sound card
• compatibility
  High definition audio
• audio codec
  Realtek ALC897
• Audio
  High Definition Audio (8-channel)
• network controller
  Realtek RTL8125BG
• network
  2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
• expansion slots
  1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 slot with key M), 1 x M.2 socket (2242/2260/2280/22110 M.2 slot with key M), 3 x PCIe 3.0 x16 (1x mode), 4 x DIMM 288-pin, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
• storage interfaces
  SATA 600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 connectors: 1 x M.2, SATA 600 / PCIe 4.0 connectors: 1 x M. 2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• USB / FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2
• mass storage interfaces
  4x SATA-600 (RAID), 2x M.2
• USB/FireWire port configuration (active)
  1x USB-C 3.2 Gen 2 + 2x USB 3.2 Gen 2 + 4x USB 2.0
• USB/FireWire port configuration (headers)
  1x USB-C 3.2 Gen 2 + 2x USB 3.2 Gen 1 + 4x USB 2.0
• software incl.
  AIDA64 Extreme (60-day trial), MSI Center, Norton 360 Deluxe (60-day trial)
• Broad
  12"
• depth
  24.348 cm
