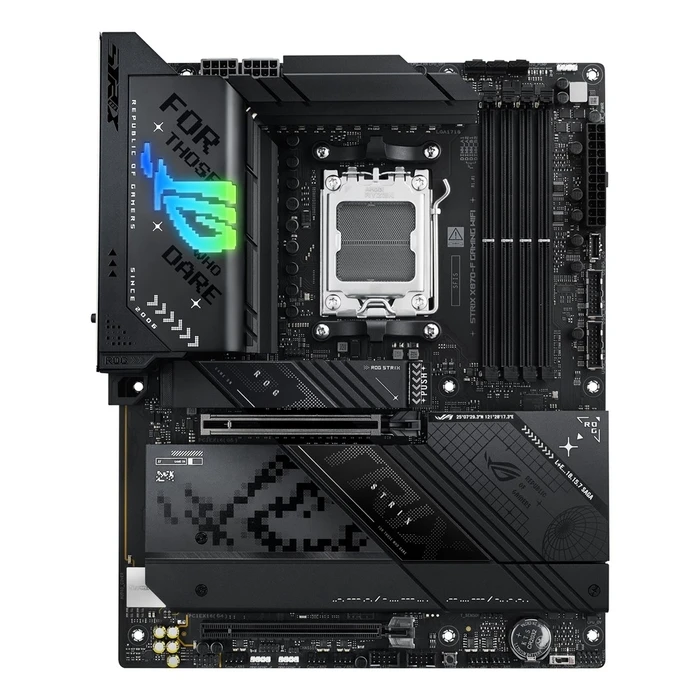

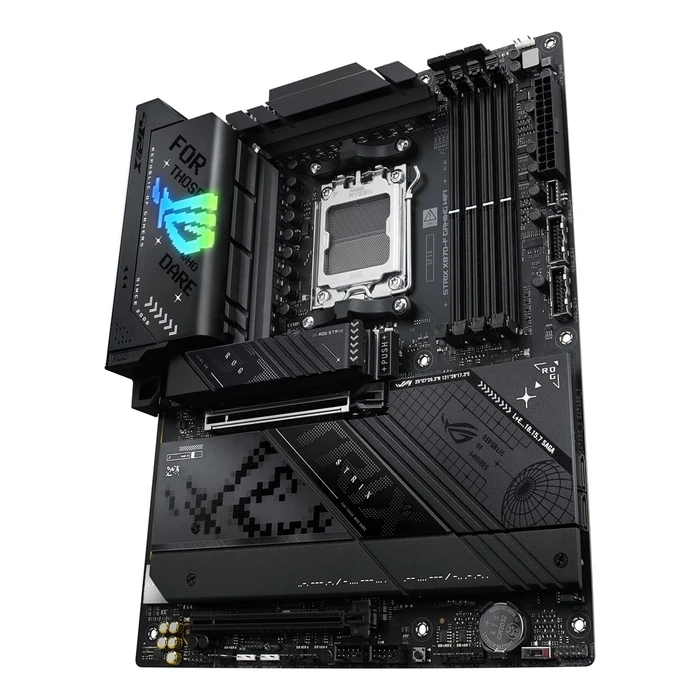

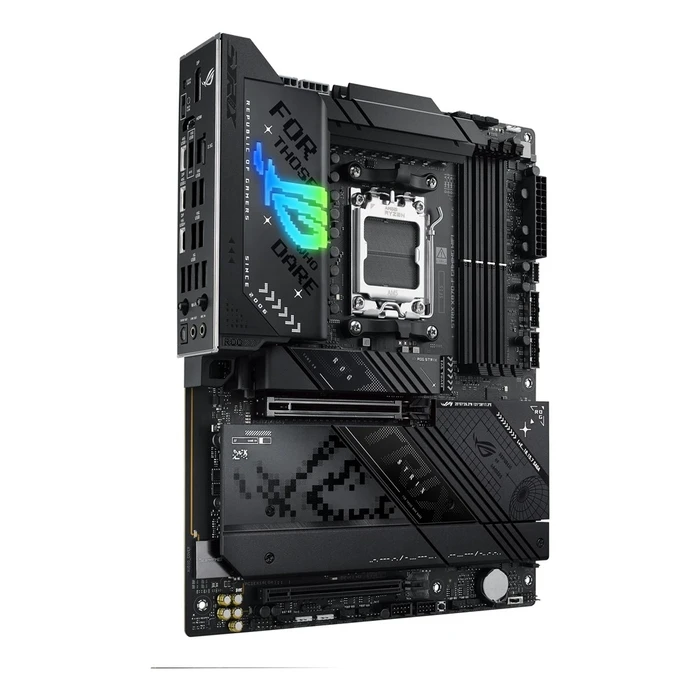

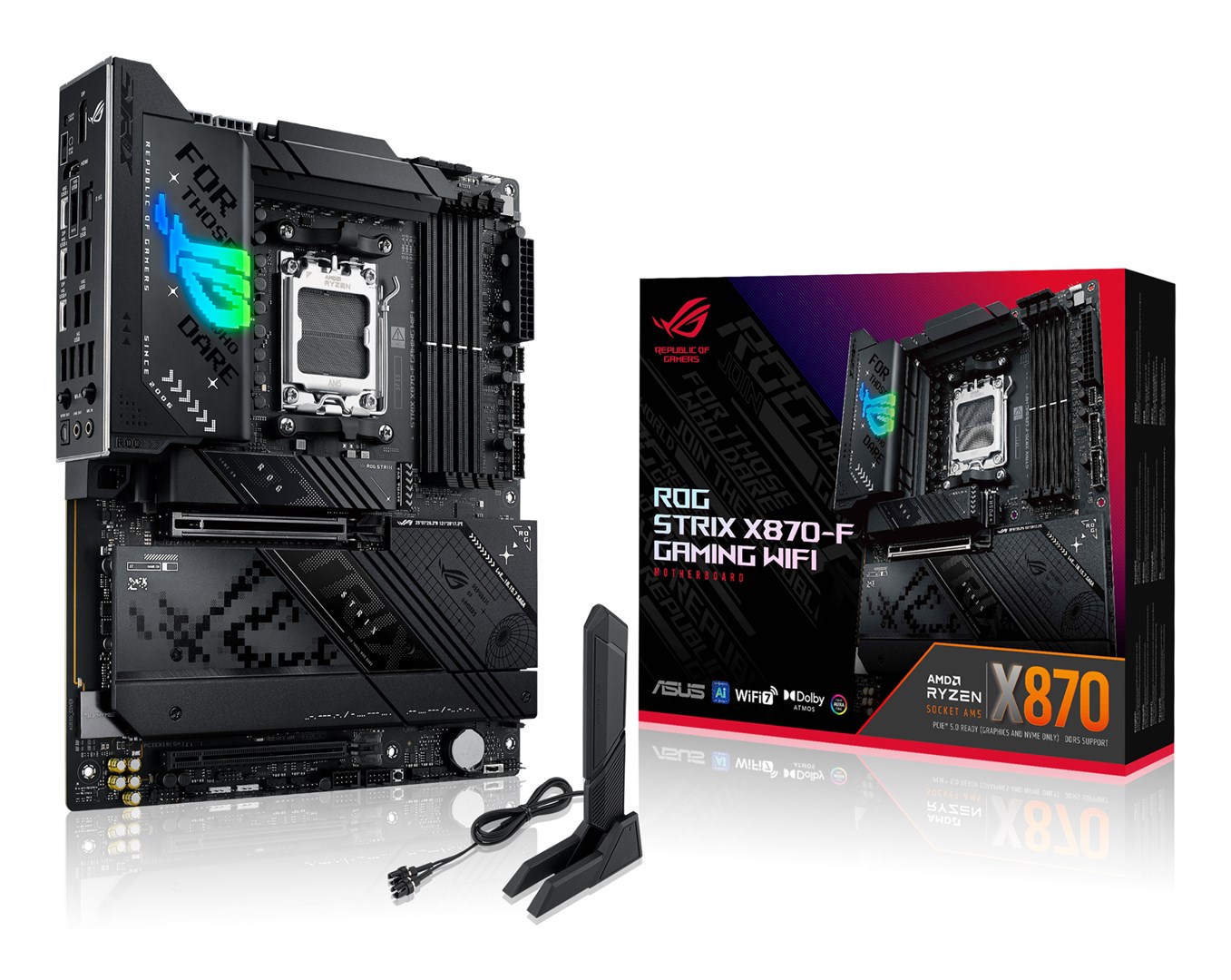

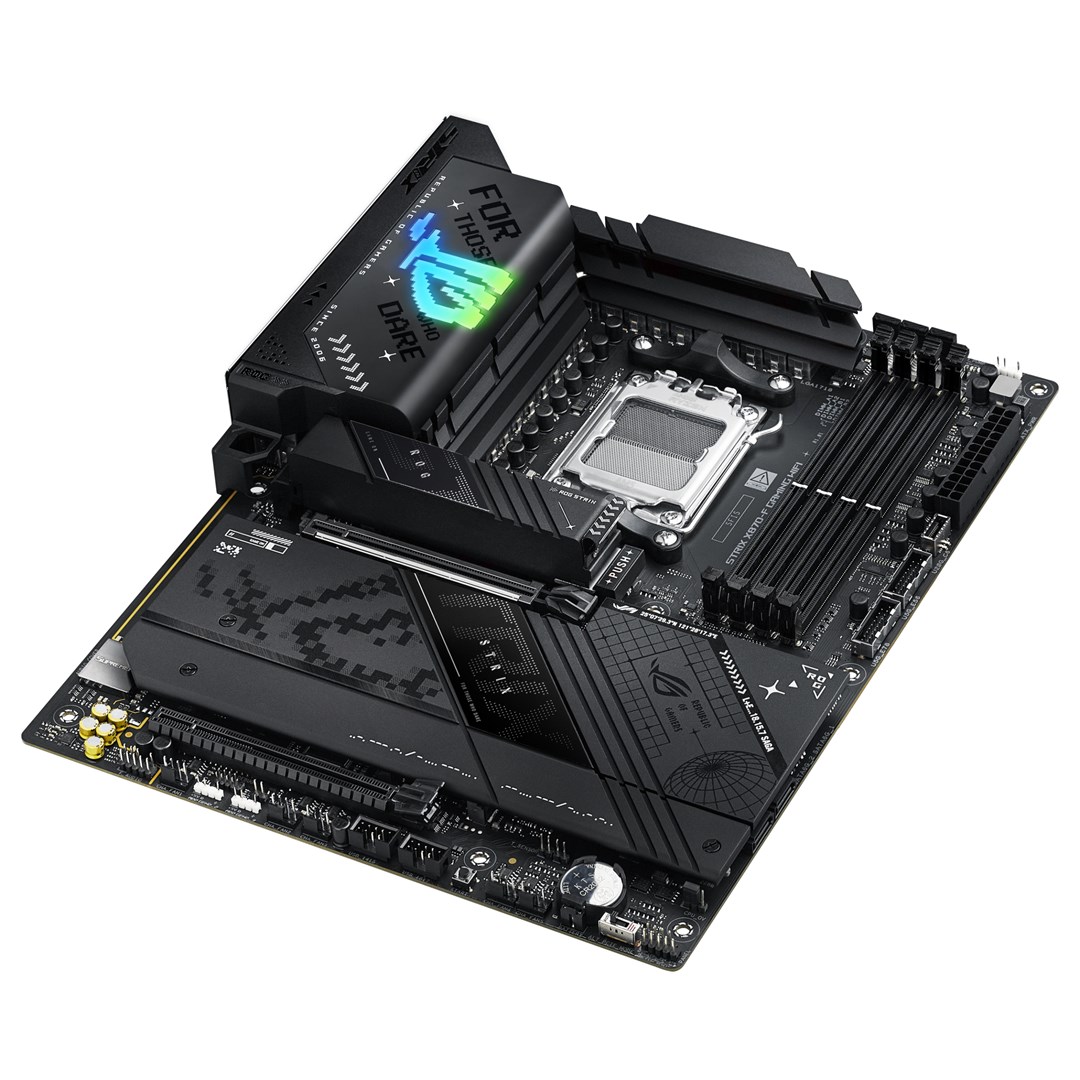

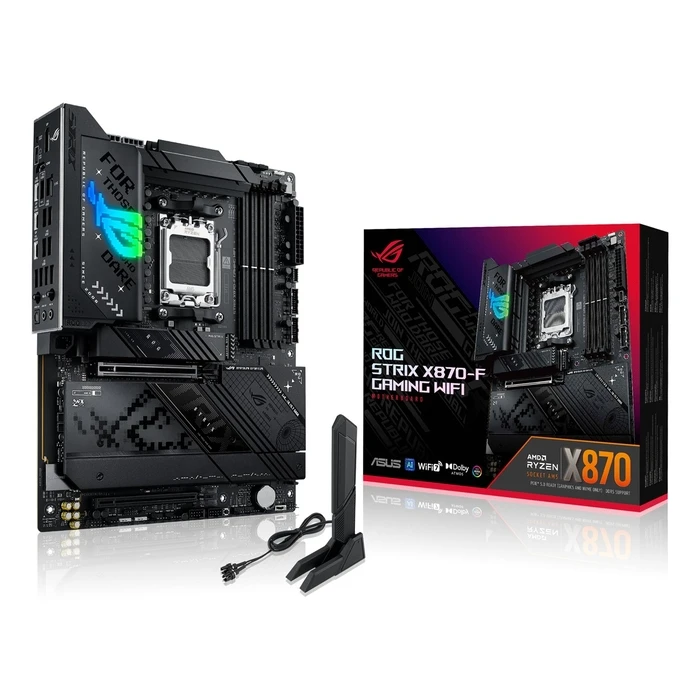

Motherboard Asus ROG Strix X870-F Gaming WiFi AMD X870 AM5 Socket ATX

Technical Specifications

• Processor socket
  Socket AM5
• Compatible processor series
  AMD Ryzen 7000 Series
• Processor manufacturer
  AMD
• Parallel processing technology support
  Not supported
• On-board graphics card
  No
• Motherboard chipset
  AMD X870
• Product colour
  Black
• Windows operating systems supported
  Windows 11
• Audio output channels
  7.1 channels
• Motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• Memory channels
  Dual-channel
• Maximum internal memory
  192 GB
• Unbuffered memory
  Yes
• ECC сompatibility
  ECC & Non-ECC
• Supported memory clock speed (max)
  8000 MHz
• Number of memory slots
  4
• Supported memory types
  DDR5-SDRAM
• Memory slots type
  DIMM
• Depth
  244 mm
• Width
  305 mm
• Top Wi-Fi standard
  Wi-Fi 7 (802.11be)
• Ethernet LAN
  Yes
• Wi-Fi
  Yes
• Bluetooth
  Yes
• Wi-Fi standards
  Wi-Fi 7 (802.11be)
• Bluetooth version
  5.4
• Ethernet interface type
  Fast Ethernet
• EPS power connector (8-pin)
  Yes
• USB 2.0 connectors
  2
• Front panel audio connector
  Yes
• Chassis intrusion connector
  Yes
• Number of chassis fan connectors
  5
• Number of SATA III connectors
  2
• CPU fan connector
  Yes
• ATX Power connector (24-pin)
  Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  2
• USB 3.2 Gen 2x2 connectors
  1
• Clear CMOS button
  Yes
• BIOS type
  UEFI AMI
• RAID levels
  0
• Number of storage drives supported
  6
• Supported storage drive interfaces
  M.2, SATA III
• RAID support
  Yes
• Supported storage drive types
  HDD & SSD
• Number of HDDs supported
  2
• HDMI ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  4
• S/PDIF out port
  Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  1
• DisplayPorts quantity
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  5
• Ethernet LAN (RJ-45) ports
  1
• Microphone in
  Yes
• USB4 Gen 3x2 ports quantity
  2
• Number of M.2 (M) slots
  4
• PCI Express x16 (Gen 4.x) slots
  1
• Warnings
  Dispose of in accordance with local regulations for electronic waste.
