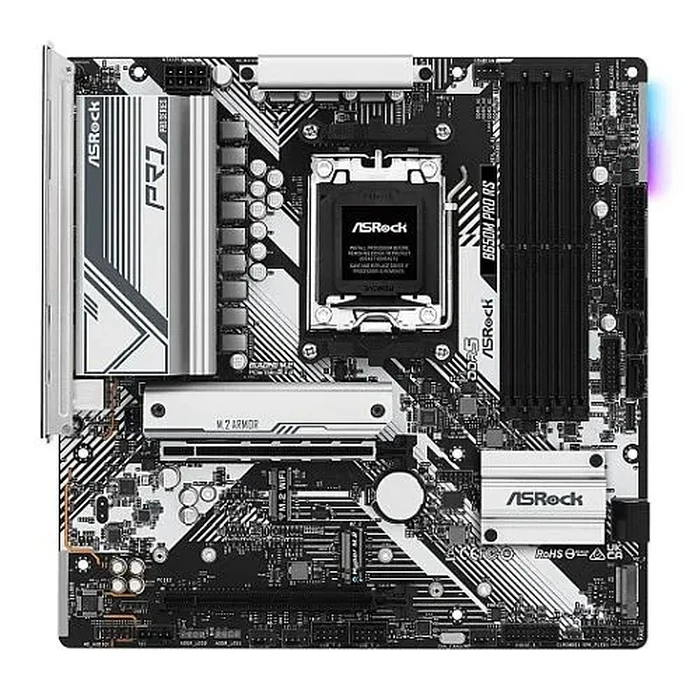

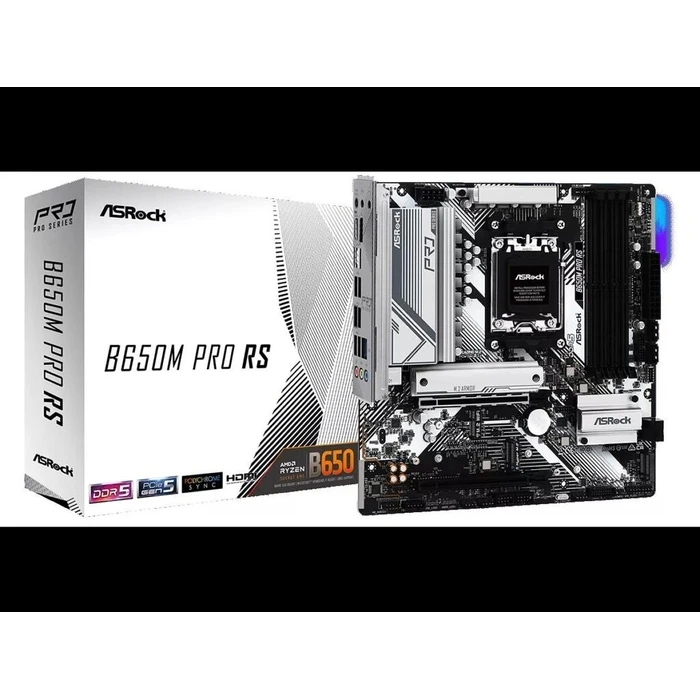

Motherboard ASRock B650M PRO RS micro ATX - AM5 - AMD B650

Technical Specifications

• Installed number
  0
• Max number supported
  1
• form factor
  Micro ATX
• Compatible processors
  Ryzen
• chipset
  AMD B650
• Supported RAM technology
  DDR5 SDRAM
• Supported RAM integrity check
  Non ECC
• Supported RAM speed
  6000MHz (OC)
• processor socket
  Socket AM5
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  4 DIMM slots
• Internal interfaces
  1 x USB-C 3.2 Gen 1 header, 1 x Audio header, 4 x USB 2.0 header, 1 x Thunderbolt header, 4 x USB 3.2 Gen 1 header, 1 x SPI header
• performance characteristics
  AMD EXPO Technology, Intel Extreme Memory Profiles (XMP), dual-channel memory architecture
• Max supported size
  128GB
• Type
  Graphics adapter (CPU required)
• Type
  sound card
• compatibility
  High definition audio
• audio codec
  Realtek ALC897
• Audio
  High Definition Audio (8-channel)
• network controller
  Dragon RTL8125BG
• network
  2.5 Gigabit Ethernet
• expansion slots
  1 x CPU, 3 x M.2 socket (2260/2280 M.2 Key M Slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x4 mode), 1 x M.2 socket (Key E) , 1x PCIe 4.0 x16
• storage interfaces
  PCIe 4.0 connectors: 2 x M.2, PCIe 5.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10
• Storage
  Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID), M.2 socket
• USB / FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, USB-C 3.2 Gen 1
• mass storage interfaces
  4x SATA-600 (RAID), 1x M.2, 1x Hyper M.2, 1x Blazing M.2
• USB/FireWire port configuration (active)
  1x USB-C 3.2 Gen 2 + 1x USB 3.2 Gen 2 + 2x USB 3.2 Gen 1 + 4x USB 2.0
• USB/FireWire port configuration (headers)
  1x USB-C 3.2 Gen 1 + 4x USB 3.2 Gen 1 + 4x USB 2.0
• software incl.
  ASRock Dragon 2.5G LAN software, ASRock A tuning
• Broad
  24.4 cm
• depth
  24.4 cm
