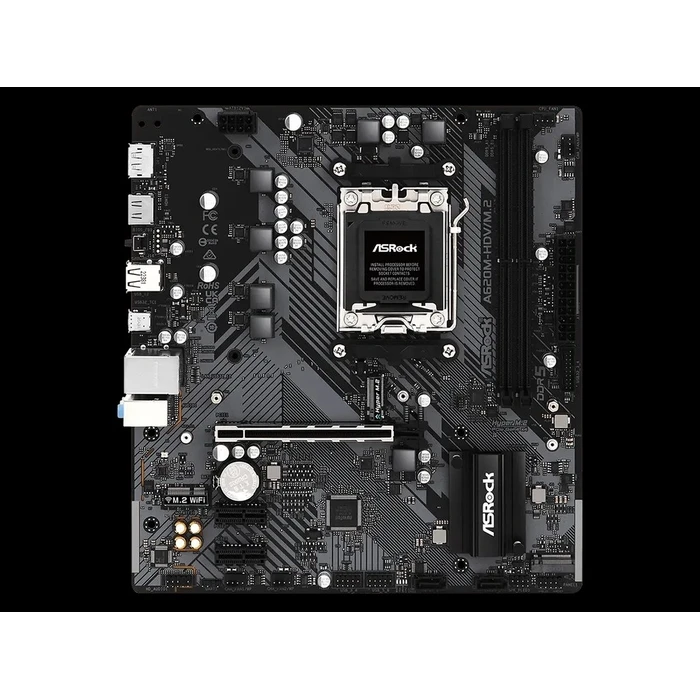

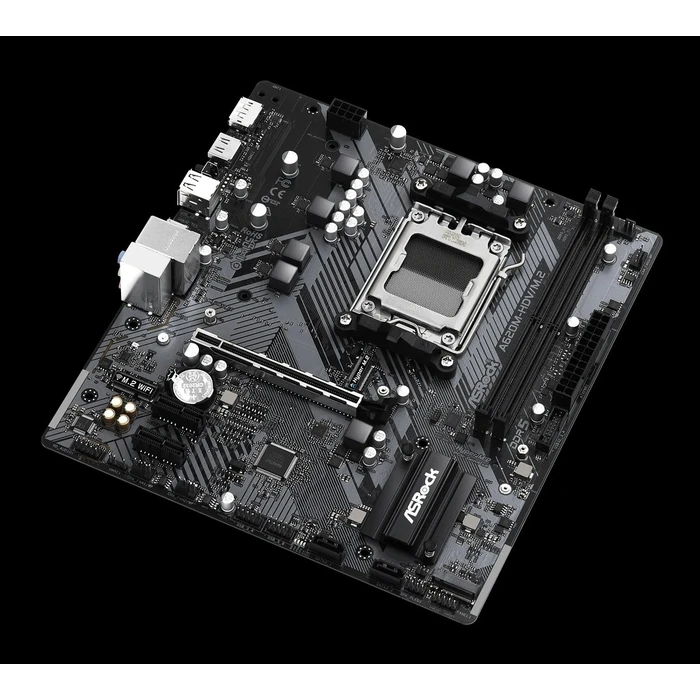

Motherboard ASRock A620M-HDV/M.2 micro ATX - AM5 - AMD A620

Technical Specifications

• pack quantity
  1
• Installed number
  0
• Max number supported
  1
• form factor
  Micro ATX
• Compatible processors
  Ryzen
• chipset
  AMD A620
• Supported RAM technology
  DDR5 SDRAM
• Supported RAM integrity check
  Non ECC
• Supported RAM speed
  5600MHz (OC)
• processor socket
  Socket AM5
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  2 DIMM slots
• Internal interfaces
  1 x audio header, 4 x USB 2.0 header, 1 x speaker header, 2 x USB 3.2 Gen 1 header
• performance characteristics
  AMD EXPO Technology, Intel Extreme Memory Profiles (XMP), dual-channel memory architecture
• Max supported size
  64GB
• Type
  Graphics adapter (CPU required)
• Type
  sound card
• compatibility
  High definition audio
• audio codec
  Realtek ALC897
• Audio
  High Definition Audio (8-channel)
• network controller
  Realtek RTL8111H
• network
  gigabit ethernet
• expansion slots
  1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2260/2280 M.2 Key M slot), 2 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
• storage interfaces
  PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 connectors: 2 x 7-pin Serial ATA - RAID 0 / RAID 1
• Storage
  Hyper M.2 socket, Serial ATA-600 (RAID)
• USB / FireWire
  USB 3.2 Gen 1, USB-C 3.2 Gen 1
• mass storage interfaces
  2x SATA-600 (RAID), 1x Hyper M.2, 1x M.2
• USB/FireWire port configuration (active)
  1x USB-C 3.2 Gen 1 + 2x USB 3.2 Gen 1 + 2x USB 2.0
• USB/FireWire port configuration (headers)
  2x USB 3.2 Gen 1 + 4x USB 2.0
• software incl.
  ASRock A tuning, ASRock XFast LAN
• Broad
  22.6 cm
• depth
  24.4 cm
