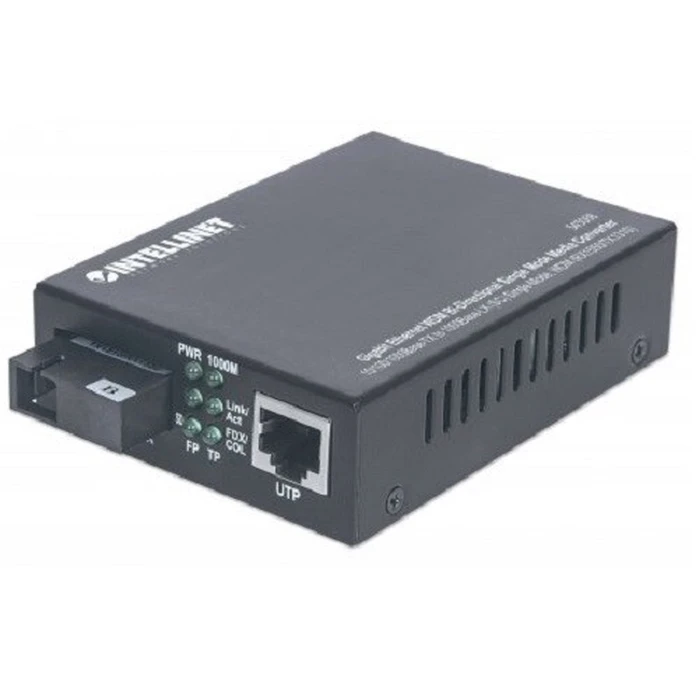

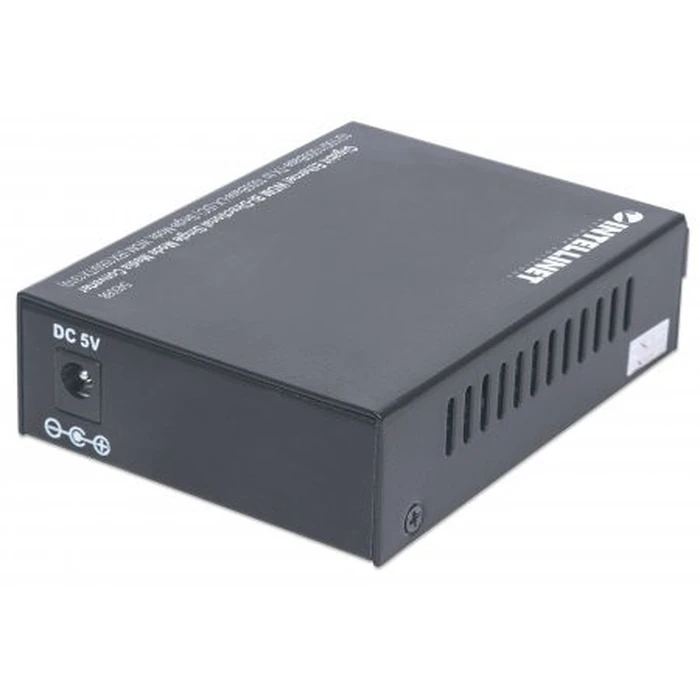

Media Converter Intellinet Gigabit Singlemode 20km RX 1550

network
Data transfer rate (max)1000 Mbit / s
Converter input interface10Base-T, 100Base-TX, 1000Base-TX
Converter output surface1000Base-LX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet Interface TypeGigabit Ethernet
Ethernet LAN data transfer rates10,100,1000 Mbit / s
Copper Ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-TX
Ethernet cable Verkablungstechnologie1000BASE-LX
Auto MDI / MDI-X
Duplex SystemFull
supported cable typesCat5
Connectors and Interfaces
DC connection
transmission technologyWired
Ethernet LAN ports (RJ-45)1
Fibre Channel ports1
Optical cable connectorSC
power
Mean time between failures (MTBF)100000 h
Maximum transfer distance20000 m
Wavelength division multiplexing technology (WDM)
Cable mode structureSingle-mode
support optical cable diameter8.3 / 125, 8.7 / 125, 8/125, 10/125
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
sensitivity-22 dBmW
design
Colour of productblack
housing materialmetal
LED displays
energy
External power supply
output voltage5 V
output current1.2A
Power consumption (max.)5 W
packaging content
AC power adapter
Certificates
certificationFCC Class A, CE
operating conditions
Temperature range in operation0 - 50 ° C
Storage temperature range-20 - 70 ° C
Humidity in operation10 - 80%
Weight & dimensions
width69 mm
depth105 mm
height25 mm
weight180 g
