Κάρτα PCIe Adapter Chip Pcea-S2n Asix Ax99100 2x Serial Port + Lp
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- Ship with ACS Courier
- Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
Pickup from BoxNow automated machine:
With BoxNow you can pick up your package from an Automated Pickup Machine near you at any time, 24/7. Cash on delivery available with an additional €1 fee.
-
Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Σκληρός Δίσκος 2.5'' SSD 15.4TB Micron 7500 Pro U.3 PCI Express 4.0 NVMe 3D TLC NAND
Controller Delock PCI Express x4 Card 4xextern USB 3.0 Quad Channel
Κάρτα Επέκτασης Powertech PCIe σε Serial & Parallel St39, Wch Ch382L
Controller Fujitsu PSAS CP 2200-16i LP - SATA 6Gb/s / SAS 12Gb/s / SAS 24Gb/s - PCIe 4.0 x8

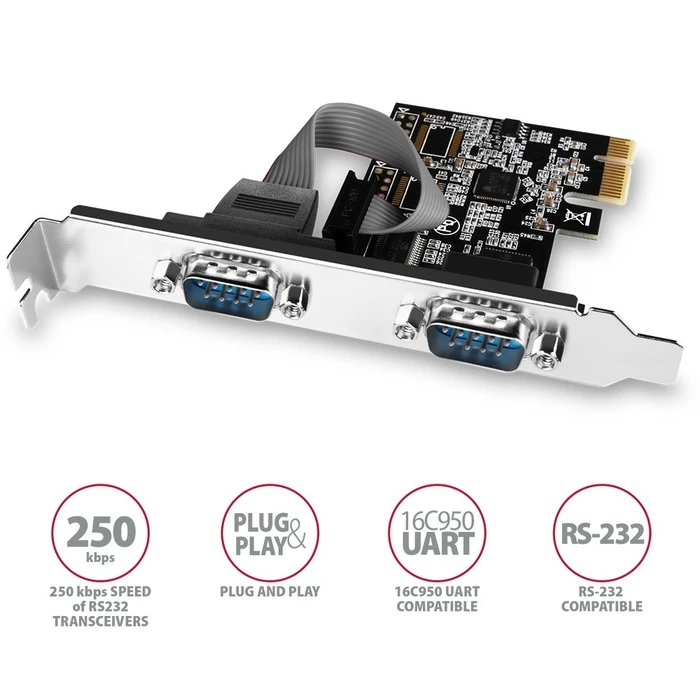

The AXAGON PCEA-S2N PCI-Express card extends your desktop PC by two RS-232 serial ports with DB-9 connectors.
High performance, seamless compatibility and wide port options are ensured by proven ASIX chipset.

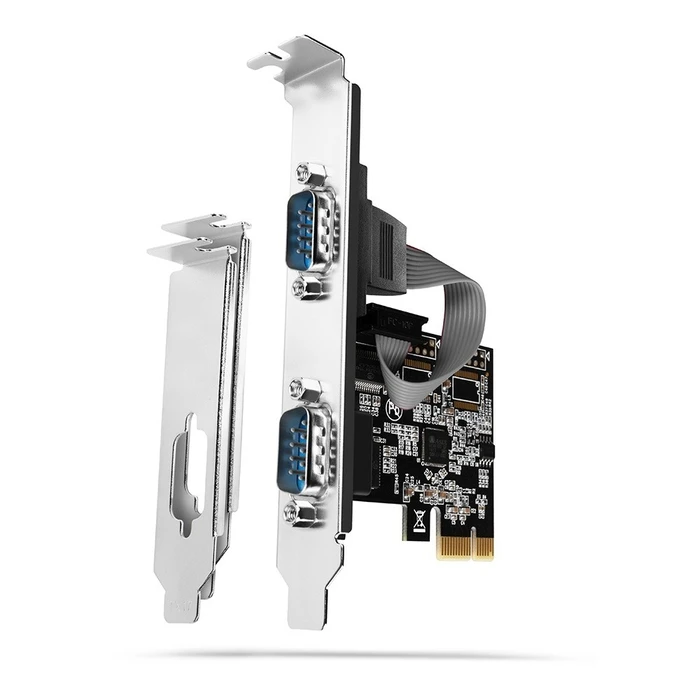

Included low profile brackets allow controller installation into standard and also low profile PC cases.
Input:
PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
The bandwidth of 1-Lane PCI-Express 2.0 bus 5 Gb/s.
Output:

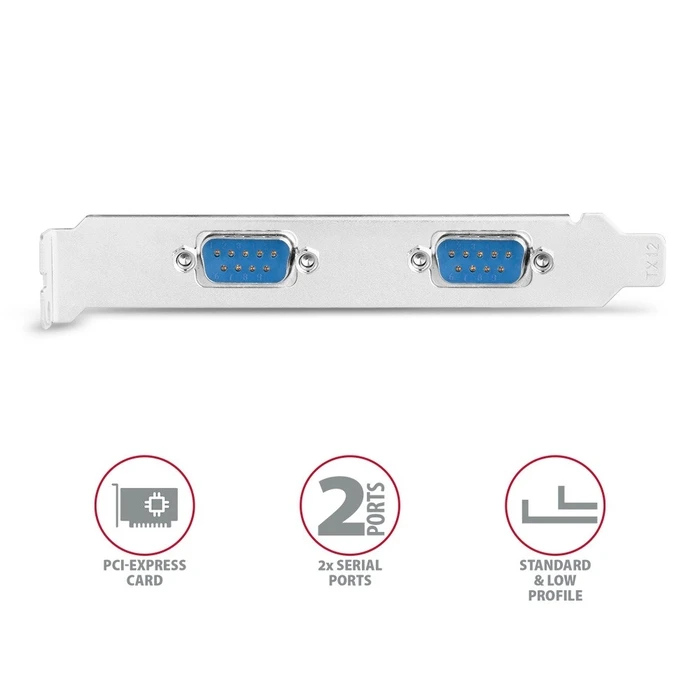

2x serial RS-232 port with DB9 male connectors, the ports are placed on the cards bracket.
Guaranteed data flow of used RS232 drivers up to 250 kBd.
Compatible with 16C550 / Extended 16C550 / 16C950 UART.
Other features:
Plug and Play Support - automatic selection of IRQ and I/O address.
256-Byte transmit & receive FIFO buffer for each port.
Serial port baud rate setting.
Adjustable word length 5, 6, 7, 8 or 9 bits.
Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
Adjustable flow control Xon/Xoff, hardware or none.
The COM port number change.
Advanced 9-bit data transfer settings and custom baud rate settings.
Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
Serial port electrostatic discharge (ESD) protection exceeding 15KV Air Gap Discharge and 8KV Contact Discharge.
Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, modems, POSs or PDAs.
The ASIX AX99100 chipset is used.
Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported all 32 and 64-bit Windows OS versions), with kernel 2.6.11 and above.

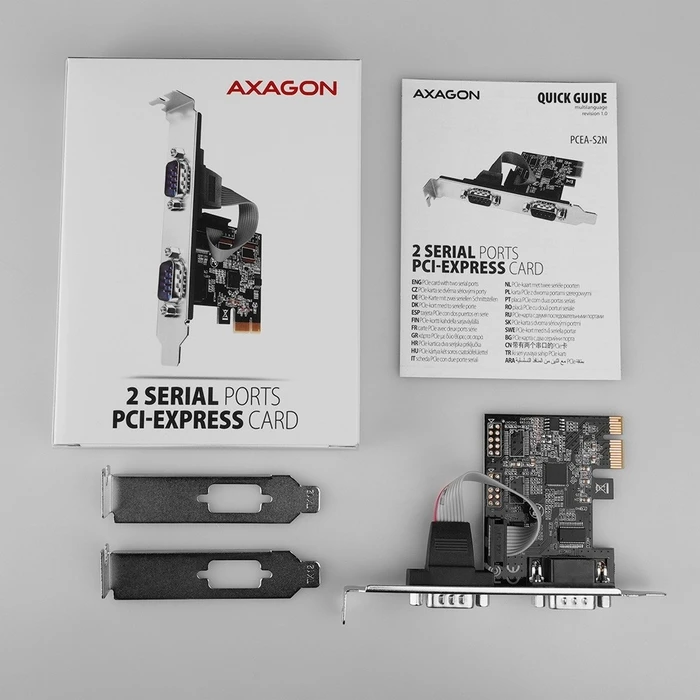

Package contains:
PCI-Express card with a standard bracket,
low profile brackets,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Interface: PCIe
Chipset type:
ASIX AX99100
Ports: 2 x RS-232 Serial Port
Accessories included:
- PCI-Express card with standard peg
- Follows low profile
- Installation manual
- Packed in a cardboard box
Other features:
Compatibility:
- UART 16C950 / Extended 16C550 / 16C550
- PCI-Express 1.0a / 1.1 / 2.1 / 3.0
- x1 / x4 / x8 / x16 PCIe slot
