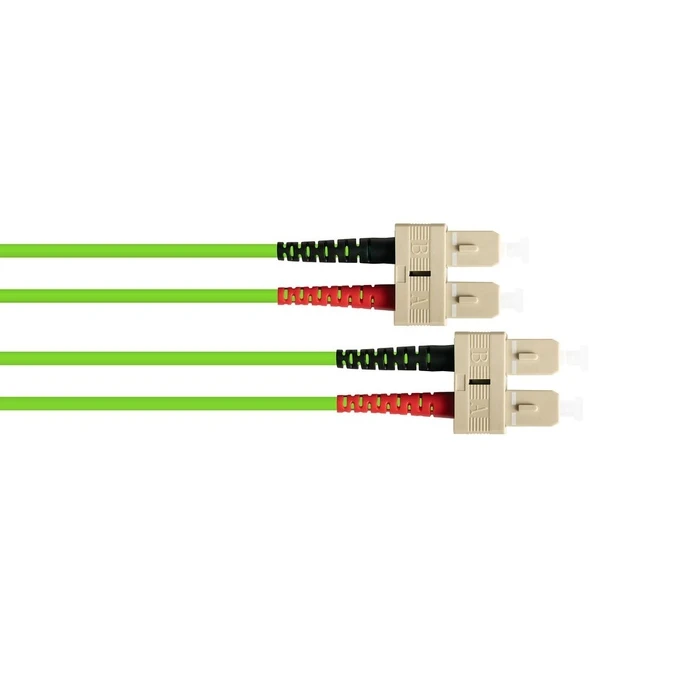

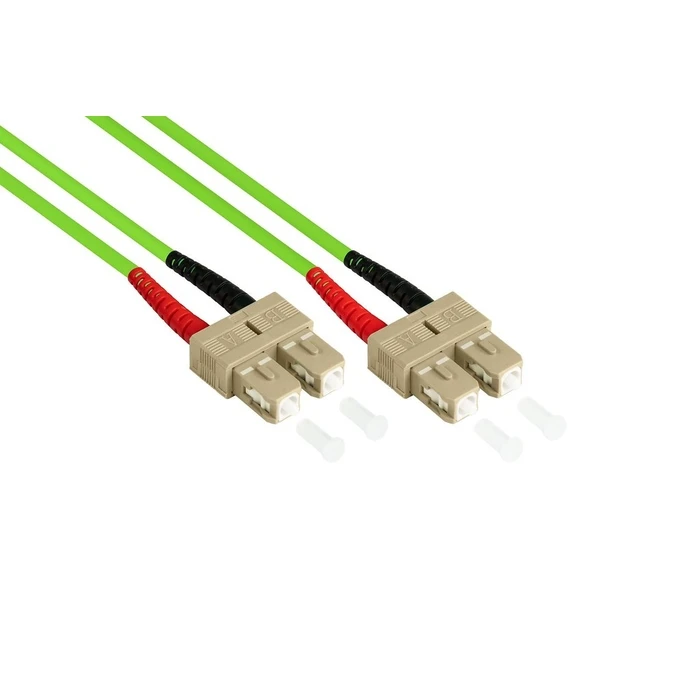

Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx Patchk. OM5 MM 50/125? SC/SC 7,5m
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- Ship with ACS Courier
- Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
Pickup from BoxNow automated machine:
With BoxNow you can pick up your package from an Automated Pickup Machine near you at any time, 24/7. Cash on delivery available with an additional €1 fee.
-
Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Καλώδιο Δικτύου Digitus CAT 6A S/FTP Patchkabel, PUR (TPU), 3m, Green
Καλώδιο Δικτύου Digitus CAT 6A S/FTP Patchkabel, PUR (TPU), 5m, Green
Καλώδιο Δικτύου Digitus Cat6 U/UTP 2xRJ45 1.0m Yellow Lever Protection Polybeutel
Καλώδιο Δικτύου Digitus Cat6a S/FTP 2xRJ45 5.0m Gray Lever Protection Polybeutel
Καλώδιο Δικτύου Digitus RJ45 U/UTP Cat6A 2.00m grey without lever cover, polybag
The Good Connections LWL Dpx Patchk. OM5 MM 50/125 SC/SC 7.5m is a high-performance, wideband multimode fiber optic patch cable crafted for demanding data center and high-speed network applications. As part of the OM5 category, it is specifically optimized to handle high-speed data transmission with superior bandwidth and reliability.
This cable is engineered to meet the stringent requirements of modern data centers, supporting speeds up to 100 GbE over substantial distances. The striking lime green jacket not only enhances visibility but also distinguishes it from other multimode fibers.
Key Features:
- Length: 7.5 meters
- Connector Type: SC/SC Duplex
- Core Size: 50 Microns
- Cladding Diameter: 125 Microns
- Number of Fibers: 2 (Duplex)
- Jacket Material: LSZH
- Minimum Bend Radius: 20 mm (Dynamic), 10 mm (Static)
Additionally, this cable ensures minimal signal loss and maximizes performance with its PC endface polish and optimized bending. It is also backward compatible with OM3 and OM4 applications, providing a seamless integration into existing networks.
-
Length7.5 m
-
Connector TypeSC/SC Duplex
-
Cable TypeOM5 Wideband Multimode Fiber
-
Core Size50 ΅m
-
Cladding Diameter125 ΅m
-
Number of Fibers2
-
Jacket MaterialLSZH
-
Jacket ColorLime Green
-
Endface PolishPC
-
Cable Outer Diameter2.0 mm
-
Minimum Bend Radius Dynamic20 mm
-
Minimum Bend Radius Static10 mm
-
Optical ModeOM5
-
Bandwidth SupportSupports at least four wavelengths in the 850-950 nm range
-
CompatibilityBackward compatible with OM3 and OM4 applications
-
Laser OptimizationFor cost-effective VCSEL light sources
-
Fire RatingOFNR
Ratings
Description
The Good Connections LWL Dpx Patchk. OM5 MM 50/125 SC/SC 7.5m is a high-performance, wideband multimode fiber optic patch cable crafted for demanding data center and high-speed network applications. As part of the OM5 category, it is specifically optimized to handle high-speed data transmission with superior bandwidth and reliability.
This cable is engineered to meet the stringent requirements of modern data centers, supporting speeds up to 100 GbE over substantial distances. The striking lime green jacket not only enhances visibility but also distinguishes it from other multimode fibers.
Key Features:
- Length: 7.5 meters
- Connector Type: SC/SC Duplex
- Core Size: 50 Microns
- Cladding Diameter: 125 Microns
- Number of Fibers: 2 (Duplex)
- Jacket Material: LSZH
- Minimum Bend Radius: 20 mm (Dynamic), 10 mm (Static)
Additionally, this cable ensures minimal signal loss and maximizes performance with its PC endface polish and optimized bending. It is also backward compatible with OM3 and OM4 applications, providing a seamless integration into existing networks.
Technical Specifications
-
Length7.5 m
-
Connector TypeSC/SC Duplex
-
Cable TypeOM5 Wideband Multimode Fiber
-
Core Size50 ΅m
-
Cladding Diameter125 ΅m
-
Number of Fibers2
-
Jacket MaterialLSZH
-
Jacket ColorLime Green
-
Endface PolishPC
-
Cable Outer Diameter2.0 mm
-
Minimum Bend Radius Dynamic20 mm
-
Minimum Bend Radius Static10 mm
-
Optical ModeOM5
-
Bandwidth SupportSupports at least four wavelengths in the 850-950 nm range
-
CompatibilityBackward compatible with OM3 and OM4 applications
-
Laser OptimizationFor cost-effective VCSEL light sources
-
Fire RatingOFNR
