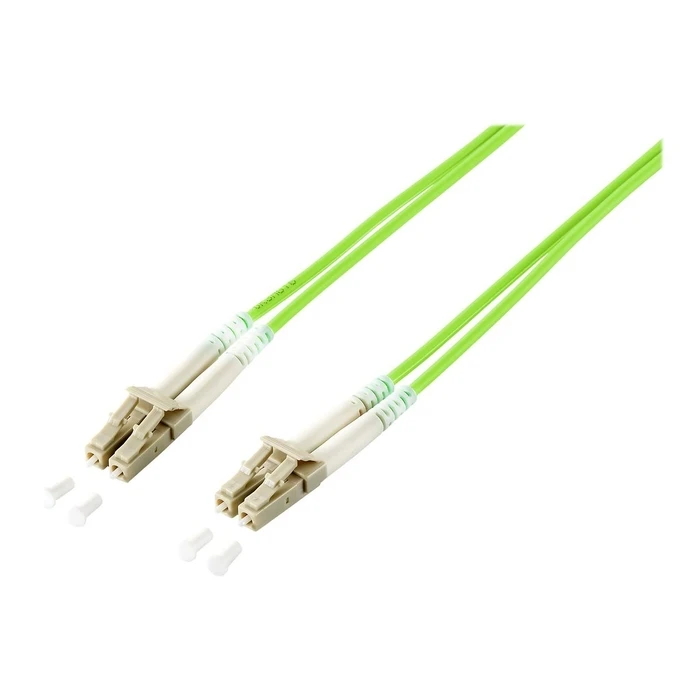

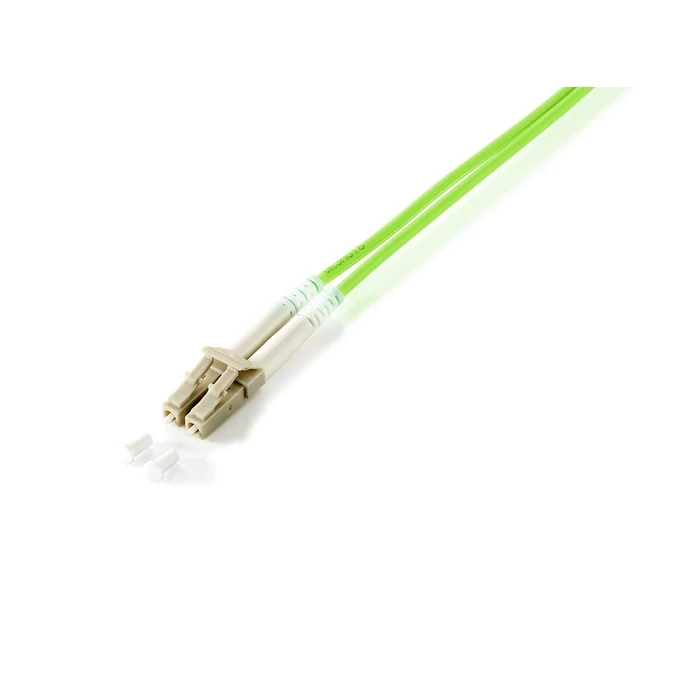

The Equip LC/LC Optic Fiber Patch Cord OM5 M/M 20.00m is an exceptional fiber optic patch cable designed for high-performance networks. This 20-meter long cable features male-to-male (M/M) duplex LC connectors for optimal data transmission. It utilizes Corning 50/125um laser-optimized wideband multimode fiber (WB-MMF), enabling support for Shortwave Wavelength Division Multiplexing (SWDM).
This technology enhances data transmission efficiency significantly, making it perfect for demanding applications in data centers and telecommunications.
Key Technical Specifications:
- Fiber Type: OM5 Wideband Multimode Fiber (WB-MMF)
- Core Diameter: 50 micrometers (΅m)
- Operating Temperature: -20°C to +70°C
- Jacket Material: LSZH (Low Smoke Zero Halogen)
The cable also boasts high precision LC Duplex Connectors and a low maximum connector loss of 0.50 dB. Furthermore, it supports bandwidth and distance for various applications:
- 100GbE up to 150 meters
- 40GbE up to 550 meters
- 10GbE up to 400 meters
This cable is compliant with TIA/EIA 492AAAE and IEC60793-2-10 A1a.4 standards, ensuring the highest quality standards.
-
Fiber TypeOM5 Wideband Multimode Fiber (WB-MMF)
-
Core Diameter50 ΅m
-
Cladding Diameter125 ΅m
-
Operating Temperature-20°C to +70°C
-
Jacket ColorLime Green
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Connector TypeLC Duplex Connectors
-
Maximum Insertion Loss0.50 dB
-
Typical Insertion Loss0.30 dB
-
Typical Return Loss-25 dB
-
Bandwidth for 100GbEup to 150 meters
-
Bandwidth for 40GbEup to 550 meters
-
Bandwidth for 10GbEup to 400 meters
-
Standards ComplianceTIA/EIA 492AAAE and IEC60793-2-10 A1a.4
-
RoHS ComplianceYes
-
OFNR RatedYes
Ratings
Description
The Equip LC/LC Optic Fiber Patch Cord OM5 M/M 20.00m is an exceptional fiber optic patch cable designed for high-performance networks. This 20-meter long cable features male-to-male (M/M) duplex LC connectors for optimal data transmission. It utilizes Corning 50/125um laser-optimized wideband multimode fiber (WB-MMF), enabling support for Shortwave Wavelength Division Multiplexing (SWDM).
This technology enhances data transmission efficiency significantly, making it perfect for demanding applications in data centers and telecommunications.
Key Technical Specifications:
- Fiber Type: OM5 Wideband Multimode Fiber (WB-MMF)
- Core Diameter: 50 micrometers (΅m)
- Operating Temperature: -20°C to +70°C
- Jacket Material: LSZH (Low Smoke Zero Halogen)
The cable also boasts high precision LC Duplex Connectors and a low maximum connector loss of 0.50 dB. Furthermore, it supports bandwidth and distance for various applications:
- 100GbE up to 150 meters
- 40GbE up to 550 meters
- 10GbE up to 400 meters
This cable is compliant with TIA/EIA 492AAAE and IEC60793-2-10 A1a.4 standards, ensuring the highest quality standards.
Technical Specifications
-
Fiber TypeOM5 Wideband Multimode Fiber (WB-MMF)
-
Core Diameter50 ΅m
-
Cladding Diameter125 ΅m
-
Operating Temperature-20°C to +70°C
-
Jacket ColorLime Green
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Connector TypeLC Duplex Connectors
-
Maximum Insertion Loss0.50 dB
-
Typical Insertion Loss0.30 dB
-
Typical Return Loss-25 dB
-
Bandwidth for 100GbEup to 150 meters
-
Bandwidth for 40GbEup to 550 meters
-
Bandwidth for 10GbEup to 400 meters
-
Standards ComplianceTIA/EIA 492AAAE and IEC60793-2-10 A1a.4
-
RoHS ComplianceYes
-
OFNR RatedYes
