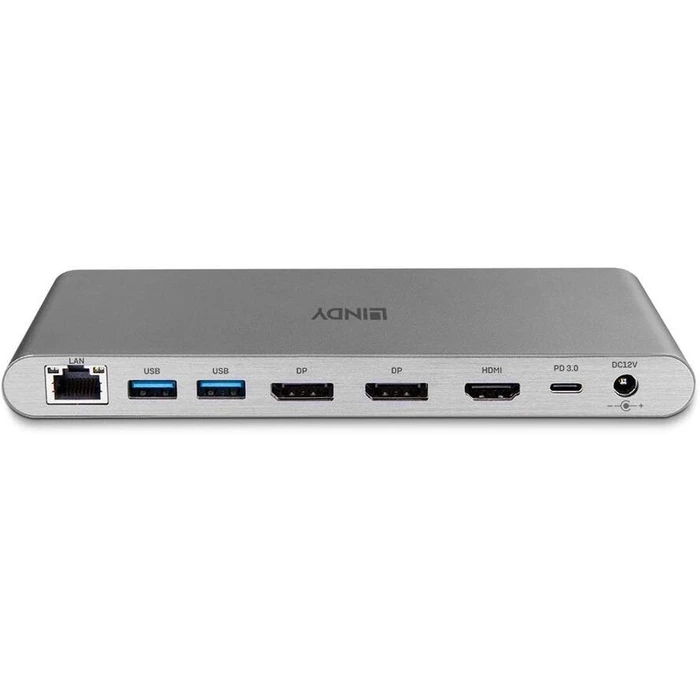

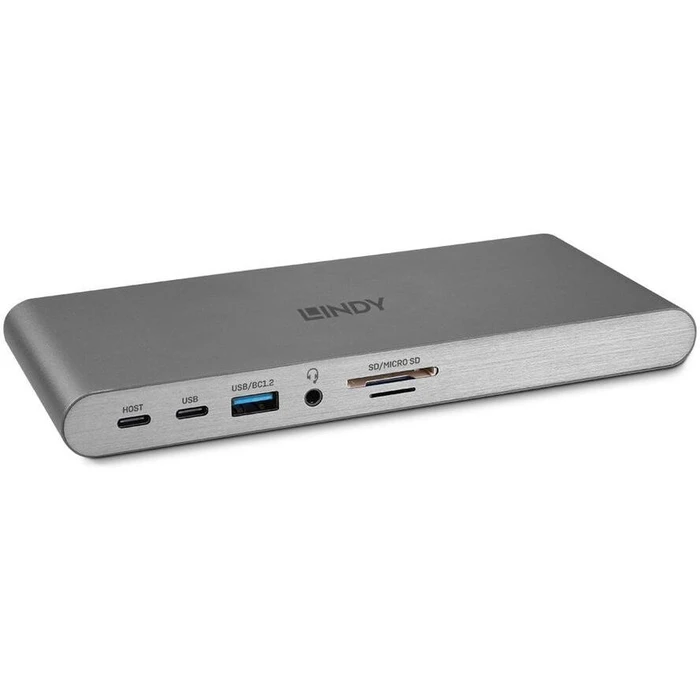

Docking Station Lindy USB 3.2 type C

Technical Specifications

• operating temperatur
  -20 - 40?
• Storage temperature range
  -40 - 80?
• Operating relative humidity
  5 - 90%
• humidity during storage
  5 - 90%
• transmission technology
  Wired
• host interface
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
  3
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
  1
• USB Power Delivery
  yes
• USB power supply revision
  3.0
• USB power supply up to
  100W
• Number of HDMI ports
  1
• HDMI version
  2.0
• Number of DisplayPort connections
  2
• DisplayPorts version
  1.4
• Combined headphone/microphone connection
  yes
• HDCP version
  2.2
• HDCP
  yes
• USB Type-C DisplayPort Alternate Mode
  yes
• Built-in Ethernet port
  yes
• Number of Ethernet LAN ports (RJ-45)
  1
• Ethernet LAN data transfer rates
  10,100,1000Mbps
• Wake on LAN ready
  yes
• sustainability certificates
  CE, REACH, RoHS
• product color
  Silver
• Integrated card reader
  yes
• Compatible memory cards
  MicroSD (TransFlash), SD
• data transfer rate
  5 Gbps
• Resolution (maximum, digital)
  7680x4320 pixels
• Maximum refresh rate
  60Hz
• plug & play
  yes
• housing material
  aluminum
• Broad
  180mm
• depth
  77mm
• Height
  18mm
• weight
  439g
• quantity per pack
  1 piece(s)
• packaging width
  200mm
• packing depth
  120mm
• packing height
  70mm
• package weight
  780g
• Supplied cables
  USB Type-C
• operating manual
  yes
• energy source
  direct current
• power plug
  USB Type-C
• output voltage
  20v
• output current
  5A
• Power consumption (max.)
  24 w
