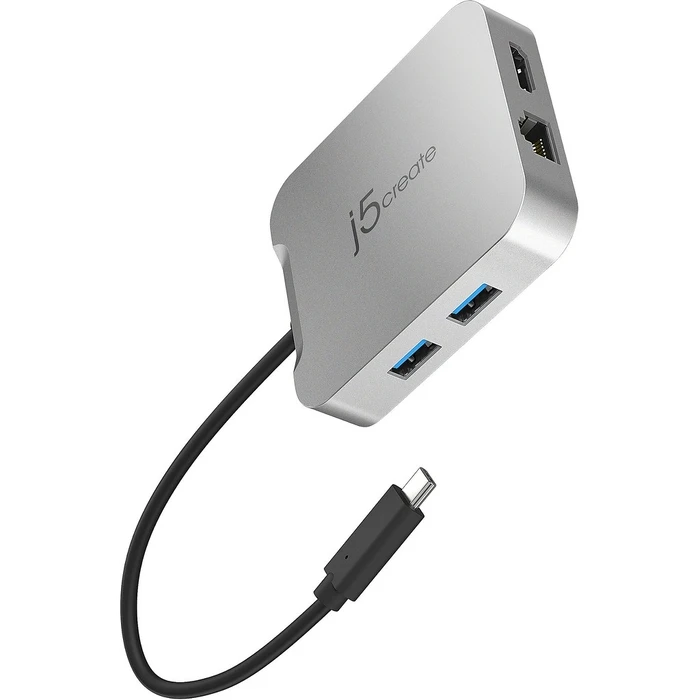

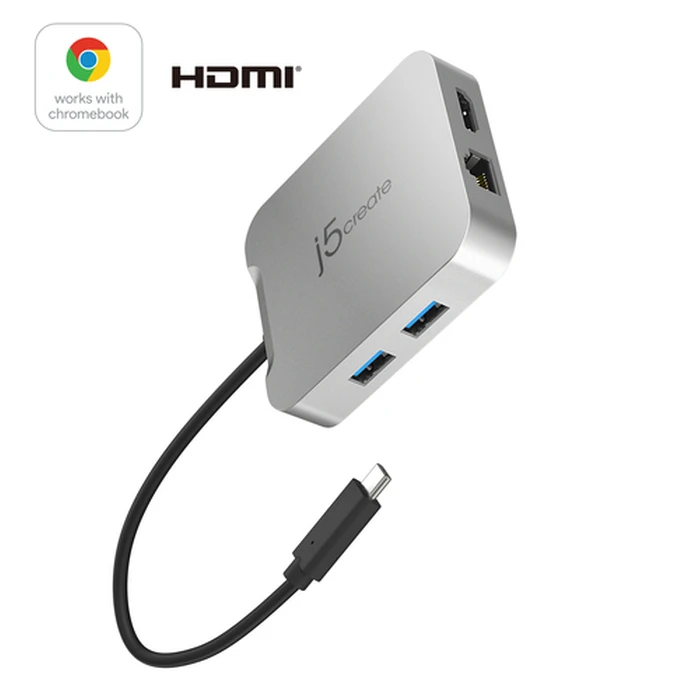

Docking Station J5create 4K60 ELITE USB-C PD MULTI-PORT

Technical Specifications

• Special features
  Chromebook™ Certified, 5-in-1 Functions, 86W of Pass-Through Charging
• Master (outer) case GTIN (EAN/UPC)
  2.47128E+13
• Warranty period
  2 year(s)
• Ethernet LAN
  Y
• Ethernet LAN (RJ-45) ports
  1
• Ethernet LAN data rates
  10,100,1000 Mbit/s
• Cables included
  USB Type-C
• Manual
  Y
• Quick start guide
  Y
• Windows operating systems supported
  Y
• Mac operating systems supported
  Y
• Other operating systems supported
  ChromeOS
• Operating relative humidity (H-H)
  0 - 85%
• Storage temperature (T-T)
  -17 - 68 °C
• Operating temperature (T-T)
  0 - 40 °C
• Storage relative humidity (H-H)
  0 - 85%
• Power consumption (typical)
  2 W
• Output voltage
  20 V
• Output current
  0.4 A
• USB cable length
  0.2 m
• Weight
  74.8 g
• Height
  77.6 mm
• Width
  66.5 mm
• Depth
  14.7 mm
• Package weight
  129 g
• Package depth
  95 mm
• Package height
  30.8 mm
• Package width
  155 mm
• Quantity per pack
  1 pc(s)
• Connectivity technology
  Wired
• Microphone in
  N
• Host interface
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• HDMI ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  1
• USB Type-C DisplayPort Alternate Mode
  Y
• USB Power Delivery revision
  3
• USB Power Delivery up to
  85 W
• Master (outer) case height
  190 mm
• Master (outer) case width
  230 mm
• Master (outer) case gross weight
  3.88 kg
• Master (outer) case length
  435 mm
• Products per master (outer) case
  24 pc(s)
• Shipping (inner) case width
  10.3 cm
• Shipping (inner) case length
  21.8 cm
• Shipping (inner) case height
  16.5 cm
• Products per shipping (inner) case
  6 pc(s)
• Shipping (inner) case net weight
  870 g
• Export Control Classification Number (ECCN)
  EAR99
• Certification
  Works with Chromebook
• Plug and Play
  Y
• Compatibility
  Available USB-C port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0.
• Data transfer rate
  5 Gbit/s
• Product colour
  Silver
• Country of origin
  Taiwan
• Card reader integrated
  N
• Housing material
  Aluminium
• Maximum refresh rate
  60 Hz
• Number of displays supported
  1
• Display modes
  Extended, Mirror, Primary display
