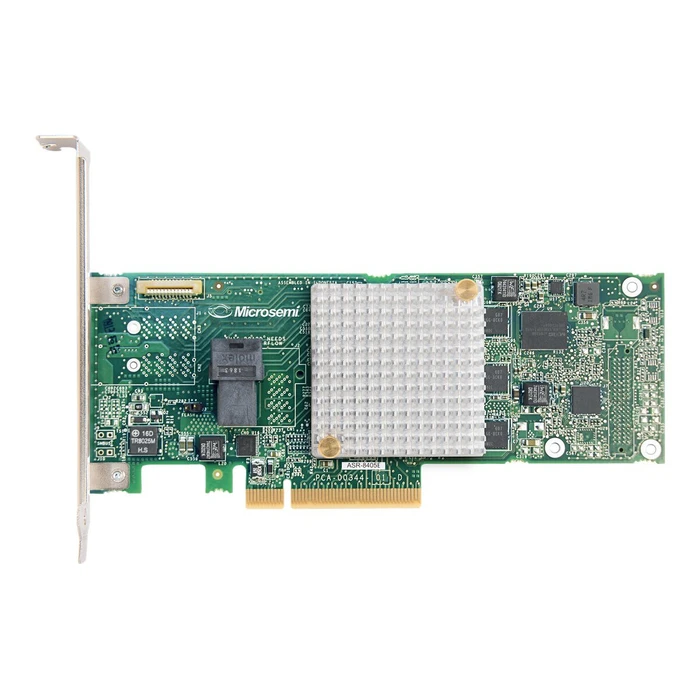

Controller PCIe Adaptec 8405E SAS 2293901-R

data centers, IT environments and standard server environments to consumers must meet a wide range of requirements - from simple connection to extreme data storage capacities. The PCIe 3.0 SAS / SATA RAID adapters Series 8E with 12 Gbps are an entry-level solution, but still offer the same stability as hardware RAID solutions. The adapters offer thanks basic RAID 0,1,10 and integrated cache compared to other adapter card solutions with 6 Gbps significantly accelerated performance. They are suitable for cost-effective platforms for not having the full performance and full functionality of our standard RAID adapter of Series 8 are required. The 8805E is suitable with eight internal SAS / SATA ports ideal for applications require a higher bandwidth. Both models meet the requirements of industrial PC workstations or servers entry level. The models 8405E and 8805E support four or eight drives maximum, since none of the models supports the use of expanders.

Controller Type
Serial ATA, SAS
Connection
PCIe 3.0 x8
Connections (internal)
4x SAS
1
Other connectors
1x SFF-8643
logs
SAS 1200
Data throughput
12 Gbit / s
Max. Devices
4
channels
4
cache
512 MB
Compatible to
Microsoft Windows, Red Hat, SuSE, CentOS, Ubuntu, VMware ESXi
equipment
Additional ventilated low-profile slot bracket
Further information
12 Gbit / s SAS data rates with mini-SAS HD connectors; proven compatibility with existing Adaptec solutions, different operating systems, servers, enclosures, SSDs, hard drives and LTO tape drives
