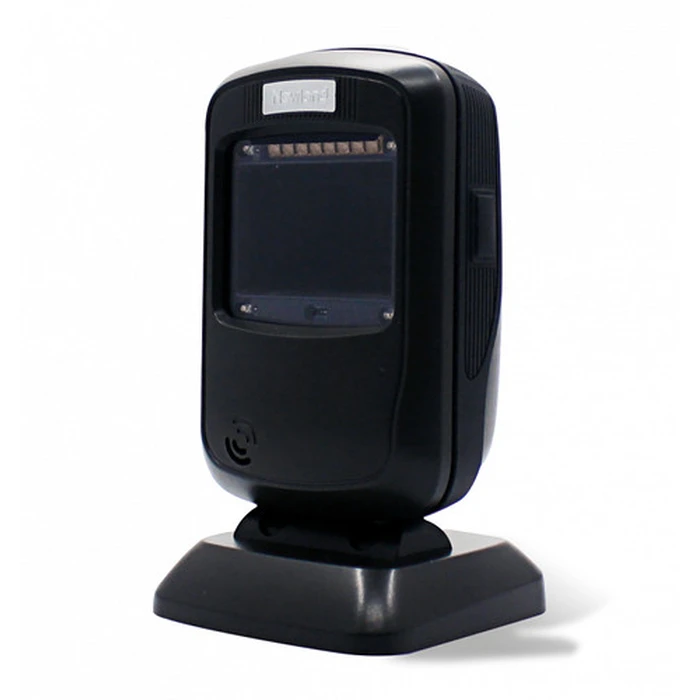

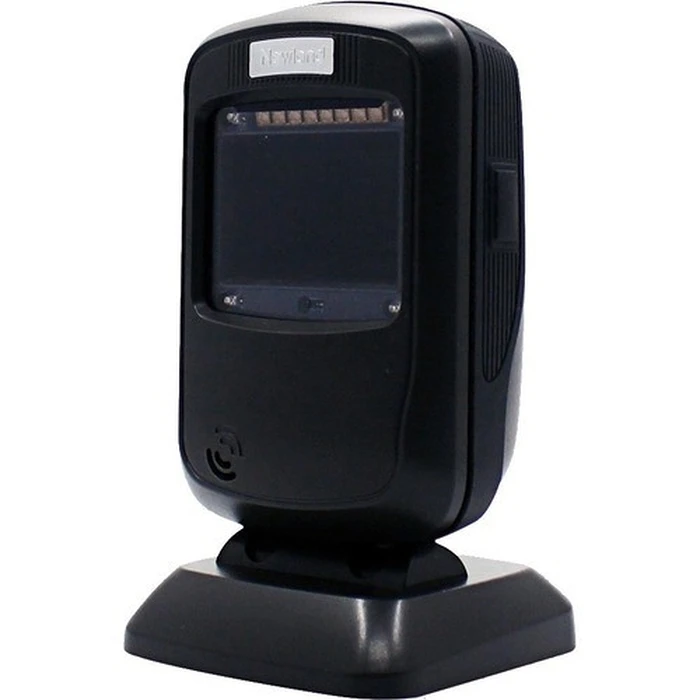

Barcode Scanner Newland Fr4080 Koi Ii 2D Mega Pixel Cmos Omni Blackw/ 2 M Us

Technical Specifications

• Infrared
  Yes
• Maximum Operating Power Consumption
  1.04 W
• Host Interface
  Serial USB
• Weight (Approximate)
  293 g
• Form Factor
  Desktop
• Height
  148 mm
• Width
  83 mm
• Depth
  81 mm
• Product Color
  Black
• Product Type
  Barcode Scanner
• Manufacturer Part Number
  NLS-FR4080-20
• Manufacturer Website Address
  http://www.newland-id.com
• Manufacturer
  Newland
• Product Model
  FR40
• Product Name
  FR40 Koi
• Brand Name
  Newland
• Application/Usage
  Retail Hospitality Healthcare Hospitality Healthcare Retail
• Package Contents
  • FR40 Koi • 2 meter USB cable
• Environmentally Friendly
  Yes
• Ingress Protection (IP) Rating
  IP52
• Barcode Symbology Supported
  • EAN-13 • EAN-8 • UPC-A • UPC-E • ISSN • ISBN • Codabar • Code 128 • Code 93 • ITF-6 • ITF-14 • Interleaved 2 of 5 • Industrial 2 of 5 • Standard 2 of 5 • Matrix 2 of 5 • GS1 Databar • Code 39 • Code 11 • MSI-Plessey • Plessey • PDF417 • Data Matrix • QR Code • Micro QR Code • Aztec
• Connectivity Technology
  Cable
• Scanning Distance
  210 mm
• Drop Specification
  1.2m Drop
• Depth of Field
  • EAN 13 (13mil) 10-210mm • QR (15mil) 10-180mm • EAN 13 (13mil) 10-210mm • QR (15mil) 10-180mm
• Scan Pattern
  Omni-directional
• Image Sensor Type
  CMOS
• Cable Type Included
  USB
• Scanning Capability
  2D 1D
• Field of View (Horizontal)
  51°
• Field of View (Vertical)
  32°
• Reading Angle (Skew)
  45°
• Reading Angle (Pitch)
  50°
• Reading Angle (Roll)
  360°
• Motion Tolerance
  2500 mm/s
• Minimum Print Contrast
  25%
• Air Electrostatic Discharge (+/-)
  14kV
