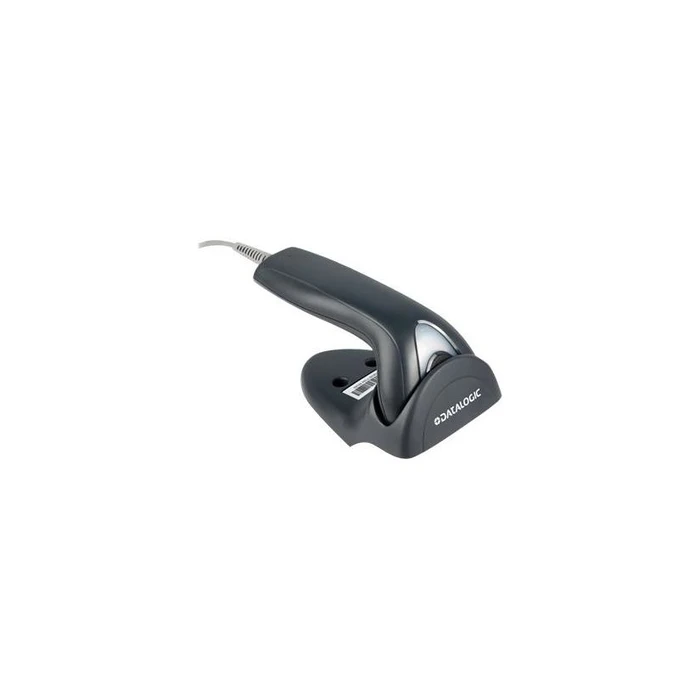

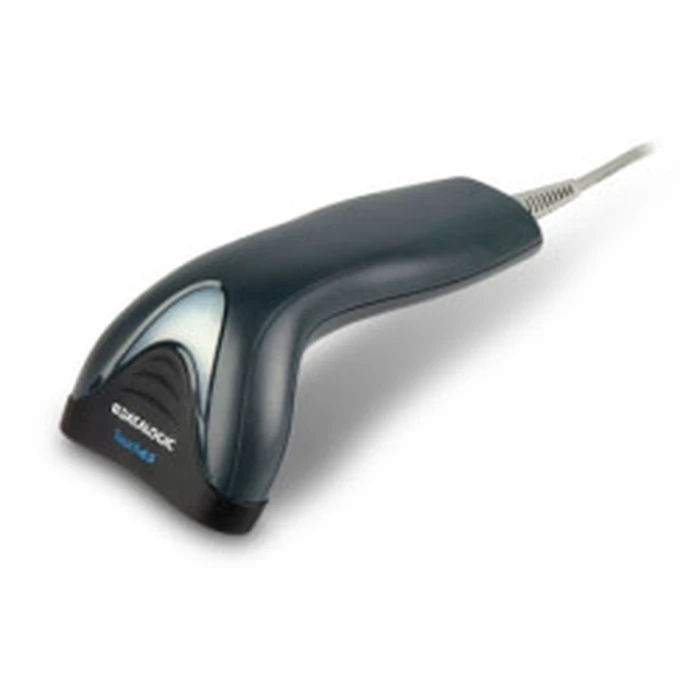

Barcode Scanner Datalogic TOUCH 65 LIGHT - RS-232 AND KBW

Technical Specifications

• Host Interface
  Keyboard Wedge Serial
• Additional Information
  USB Cable separate
• Environmentally Friendly
  Yes
• Environmental Certification
  EU RoHS China RoHS
• Weight (Approximate)
  130.4 g
• Form Factor
  Handheld
• Height
  160 mm
• Width
  58.4 mm
• Depth
  83.8 mm
• Product Color
  Black
• Product Type
  Barcode Scanner
• Manufacturer Part Number
  TD1170-BK-65
• Manufacturer Website Address
  http://www.datalogic.com
• Manufacturer
  Datalogic S.p.A
• Product Model
  65 Lite
• Product Name
  General Purpose Corded Handheld Contact Linear Imager Bar Code Reader
• Product Line
  Touch
• Product Series
  TD1100
• Brand Name
  Datalogic
• Barcode Symbology Supported
  1D / Linear Codes: • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
• Stacked Codes: •
  GS1 DataBar Expanded Stacked • GS1 DataBar Stacked • GS1 DataBar Stacked Omnidirectional
• Connectivity Technology
  Cable
• Maximum Scan Resolution
  0.10 mm
• Depth of Field
  • 0" - 3.2"@7.5mil - Code 39 • 0" - 4.7"@10mil - Code 39 • 0" - 6"@13mil - EAN13 • 0" - 3.2"@7.5mil - Code 39 • 0" - 4.7"@10mil - Code 39 • 0" - 6"@13mil - EAN13
• Scan Pattern
  Omni-directional
• Image Sensor Type
  Imager Linear
• Scanning Capability
  1D
