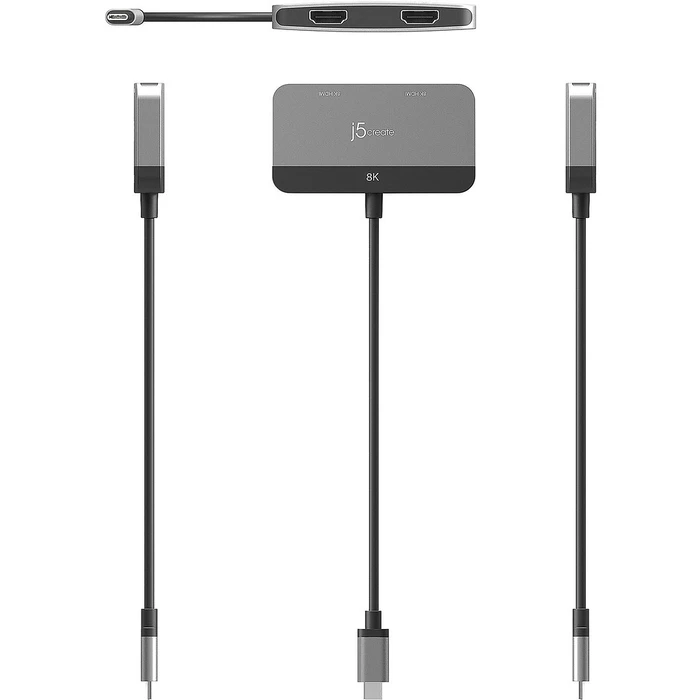

Docking Station USB J5create 8K USB-C to DUAL HDMI DISPLAY

Technical Specifications

• Packaging content
  1 - 8K USB-C to Dual HDMI™ Display Adapter (JCA465) 1 - Quick Installation Guide (QIG)
• Minimum system requirements
  Available USB-C port that supports DisplayPort™ Alt Mode. GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution. macOS does not support MST, the displays connected to the JCA465 will only mirror each other.
• Windows operating systems supported
  Y
• Operating relative humidity (H-H)
  0 - 85%
• Storage temperature (T-T)
  -10 - 71 °C
• Operating temperature (T-T)
  0 - 45 °C
• Weight
  50 g
• Height
  12 mm
• Width
  80 mm
• Depth
  45 mm
• Package weight
  97 g
• Package depth
  94.9 mm
• Package height
  24.8 mm
• Package width
  145 mm
• Package type
  Box
• Quantity per pack
  1 pc(s)
• Ports quantity
  4
• Host interface
  USB Type-C
• HDMI ports quantity
  2
• HDMI version
  2.1
• Hub interfaces
  HDMI
• USB Type-C DisplayPort Alternate Mode
  Y
• Plug and Play
  Y
• Product colour
  Black, Grey
• Compatible products
  Available USB-C port that supports DisplayPort™ Alt Mode. GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution.
• Supported graphics resolutions
  1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 7680 x 4320
• Housing material
  Aluminium, Plastic
• Number of displays supported
  2
• Maximum resolution (HDMI)
  7680 x 4320 pixels
