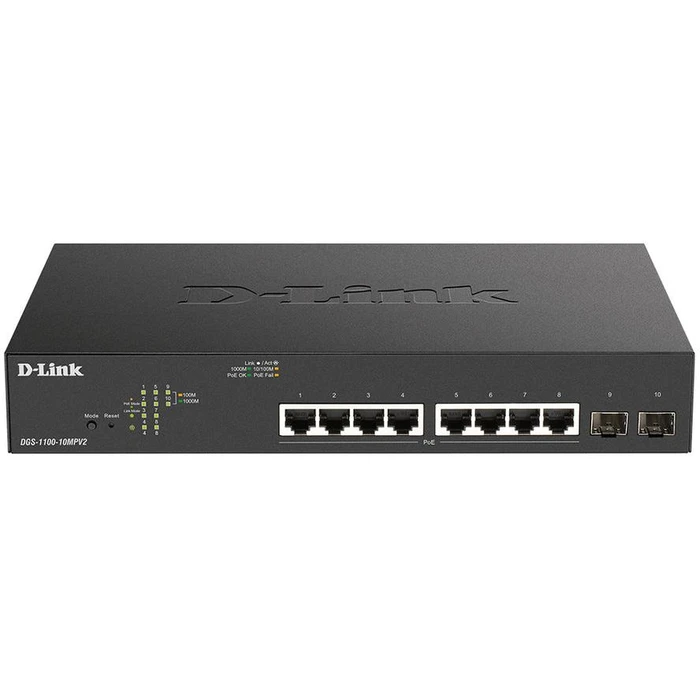

Network Switch 190mm D-Link DGS-1100-10MPV2 8*GE PoE+

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  2
• Network standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Full duplex
  yes
• Half duplex
  yes
• Rate restriction
  yes
• Link aggregation
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Head-of-Line (HOL) blocking
  yes
• Support data flow control
  yes
• VLAN support
  yes
• Virtual LAN functions
  Port-based VLAN, Tagged VLAN, Voice VLAN
• Number of VLANs
  4094
• MAC address table
  8000 entries
• Routing / switching capacity
  20 Gbit / s
• Transfer rate
  14.88 Mpps
• Number of queues
  4th
• Jumbo frames support
  yes
• Jumbo frames
  9216
• Data packet buffer memory
  4.1 MB
• IGMP snooping
  yes
• Queue planning algorithms
  Weighted Round Robin (WRR)
• Supported security algorithms
  SSL / TLS
• Multicast support
  yes
• Rack installation
  yes
• Form factor
  1U
• Product color
  black
• Certification
  FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI
• Switch type
  Managed
• Quality of Service (QoS) support
  yes
• Web based management
  yes
• Flash memory
  16 MB
• Noise level
  37 dB
• Mean Time Between Failures (MTBF)
  406887 h
• broad
  280 mm
• depth
  180 mm
• height
  44 mm
• weight
  1.5 kg
• Operating temperature range
  -10 - 50 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  0 - 95%
• Storage humidity
  0 - 95%
• Heat dissipation
  118.1 BTU / hour
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet (PoE) connections
  8th
• Total power over Ethernet (PoE)
  130 W
• AC input voltage
  100-240V
• AC input frequency
  50/60 Hz
• Power consumption (max.)
  164.6 W
