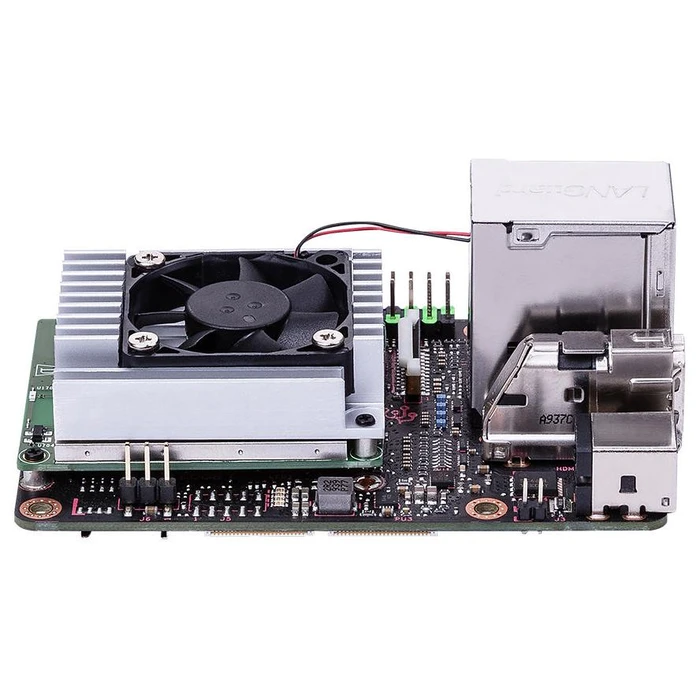

Barebone Asus TINKER EDGE T//SBC

Technical Specifications

• Processor manufacturer
  NXP
• processor
  i.MX 8M
• RAM memory maximum
  1 GB
• Internal storage type
  LPDDR4 SDRAM
• Memory channels
  Dual-channel
• eMMC capacity
  8 GB
• Compatible memory cards
  MicroSD (TransFlash)
• WIRELESS INTERNET ACCESS
  yes
• WLAN standards
  802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
• Built-in ethernet connection
  yes
• Ethernet interface type
  Gigabit Ethernet
• USB version
  2.0 / 3.2 Gen 1 (3.1 Gen 1)
• Number of USB ports
  3
• Number of USB 3.2 Gen 1 (3.1 Gen 1) ports
  3
• MIPI DSI 1.1
  yes
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of MIPI CSI-2 (24-pin) connections
  2
• MPI DSI interface
  yes
• PWM digital I / O pins
  3
• I2C interface
  yes
• SPI interface
  yes
• MPI CSI interface
  yes
• Number of HDMI connections
  1
• PCM interface
  yes
• UART
  yes
• GPIO interface
  yes
• I2S interface
  yes
• DC input voltage
  19 V
• Operating temperature range
  0 - 50 ° C
• Storage temperature range
  -40 - 80 ° C
• Relative humidity in operation
  0-85%
• Built-in graphics adapters
  yes
• On-board graphics adapter model
  Vivante GC7000 Lite
• Dimensions board
  85.5 x 54 mm
