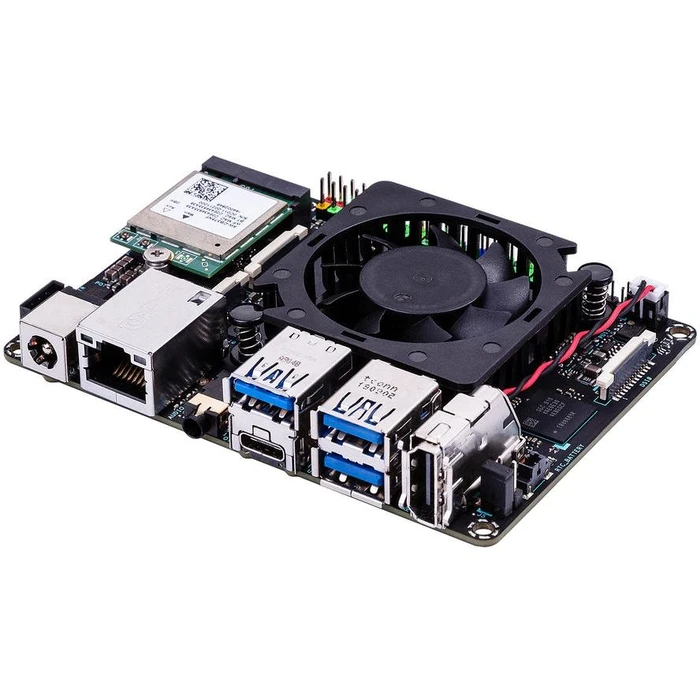

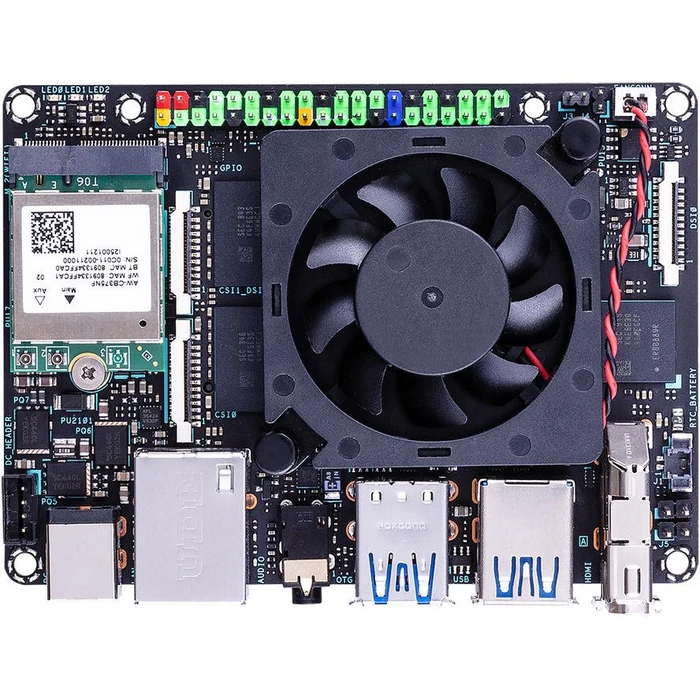

Barebone Asus TINKER EDGE R//SBC

Technical Specifications

• Real time clock (RTC)
  yes
• Processor clock frequency
  1.8 MHz
• Processor manufacturer
  Rockchip
• processor
  Rockchip RK3399Pro
• RAM memory maximum
  6 GB
• Internal storage type
  LPDDR4 SDRAM
• Memory channels
  Dual-channel
• eMMC capacity
  16 GB
• Compatible memory cards
  MicroSD (TransFlash)
• Location
  Intern
• WIRELESS INTERNET ACCESS
  yes
• WLAN standards
  802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
• Built-in ethernet connection
  yes
• Ethernet interface type
  Gigabit Ethernet
• USB version
  3.2 Gen 1 (3.1 Gen 1)
• Number of USB ports
  4th
• Number of USB 3.2 Gen 1 (3.1 Gen 1) ports
  4th
• Bluetooth
  yes
• Bluetooth version
  5.0
• Headphone output
  yes
• S / PDIF out
  yes
• PWM digital I / O pins
  3
• I2C interface
  yes
• GPIO interface
  yes
• Number of HDMI connections
  1
• Number of Ethernet LAN ports (RJ-45)
  1
• MPI DSI interface
  yes
• UART
  yes
• MPI CSI interface
  yes
• MIPI DSI 1.1
  yes
• Built-in graphics adapters
  yes
• On-board graphics adapter model
  ARM Mali-T860 MP4
• Dimensions board
  100 x 72 mm
• Packaging type
  box
