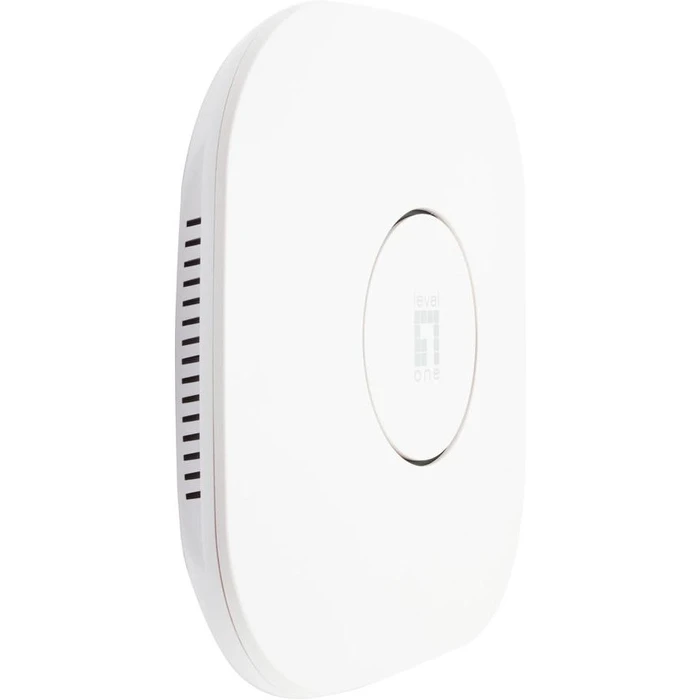

Access Point LevelOne WL-AP WAP-8121 750Mbps PoE ceiling

Technical Specifications

• Supported security algorithms
  64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
• Functions Service Set Identifier (SSID)
  SSID broadcast on / off
• Number of SSID support
  8th
• Switch type
  Managed
• Upgradeable firmware
  yes
• Web based management
  yes
• DC connection
  yes
• Number of Ethernet LAN connections (RJ-45)
  2
• WAN port
  Ethernet (RJ-45), WLAN
• Power over Ethernet (PoE)
  yes
• Output voltage
  12 V
• Output current
  1.5 A
• Power consumption (in operation)
  15 W
• Certification
  CE / FCC
• Built-in
  no
• placement
  Ceiling, wall
• Product color
  White
• Reset button
  yes
• LED indicators
  Performance, WiFi
• Antenna direction type
  With spherical directional characteristic
• Antenna functions
  Integrated antenna
• Number of antennas
  3
• Antenna gain level (max)
  15 dBi
• Recipient sensitivity
  2.4GHz: 802.11n (20MHZ): -70 dBm 802.11n (40MHZ): -68 dBm 802.11g: -72 dBm 802.11b: -95 dBm 5GHz: 802.11ac (80MHZ): -62 dBm 802.11ac (40MHZ): -65 dBm 802.11ac (20MHZ): -68 dBm 802.11n (40MHZ): -68 dBm 802.11n (20MHZ): -70 dBm 802.11a: -72 dBm
• 2.4 GHz
  yes
• 5 GHz
  yes
• Maximum data transfer rate
  433 Mbit / s
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Frequency band
  2.4 - 5.825 GHz
• Network standard
  IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
• Number of users
  80 users
• Number of channels
  36 channels
• Automatic channel selection
  yes
• modulation
  16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
• WLAN multimedia (WMM) / (WME)
  yes
• Support data flow control
  yes
• Quality of Service (QoS) support
  yes
• Humidity in operation
  -20 - 50%
• Operating temperature range
  -40 - 70 ° C
• Storage temperature range
  5 - 90 ° C
• Storage humidity
  10 - 90%
• Packaging width
  214 mm
• Packaging depth
  62 mm
• Packing height
  317 mm
• Package weight
  680 g
• Supplied cables
  LAN (RJ-45)
• Quick start overview
  yes
• width
  189 mm
• depth
  38.5 mm
• height
  189 mm
• Weight
  326 g
