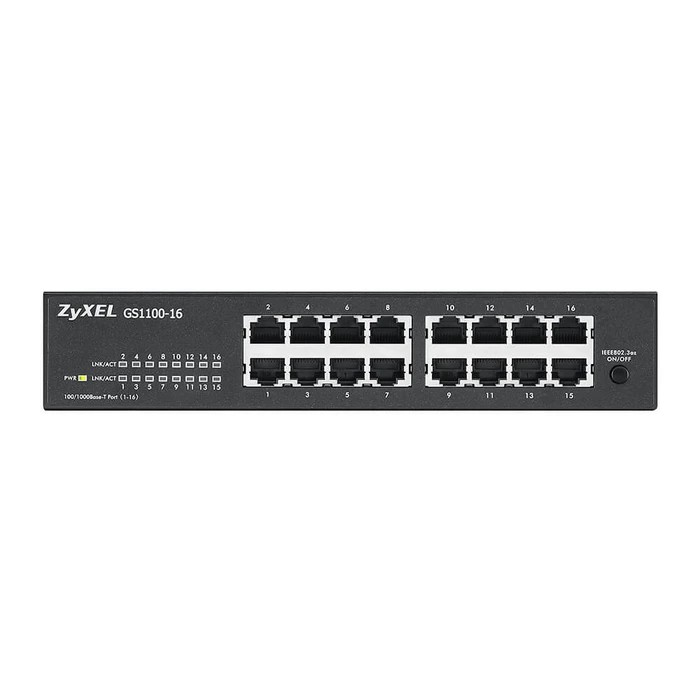

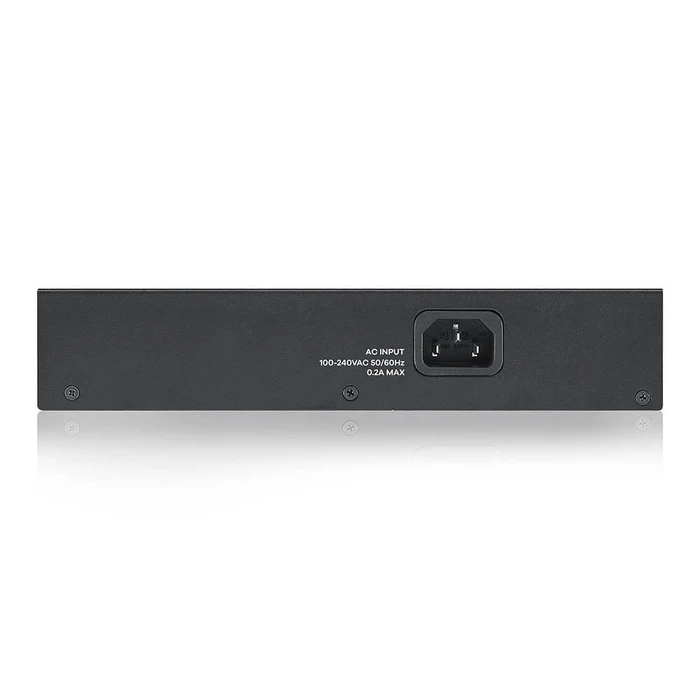

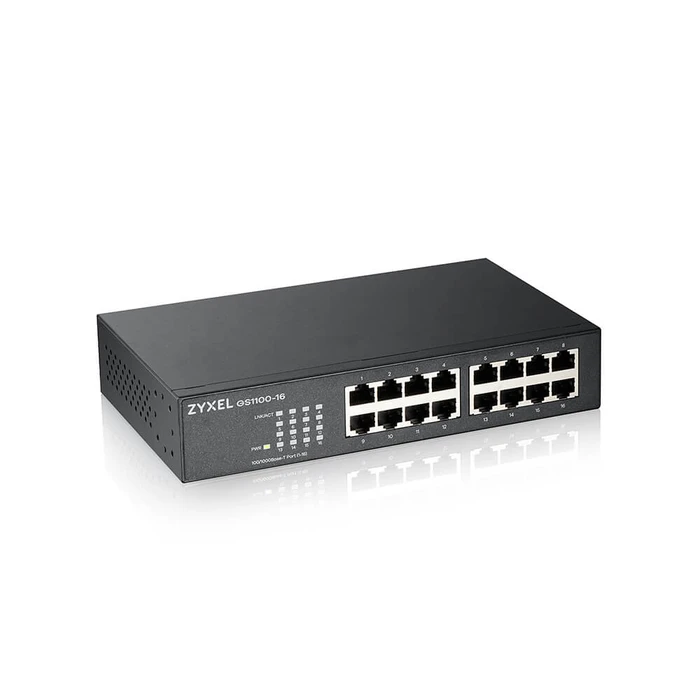

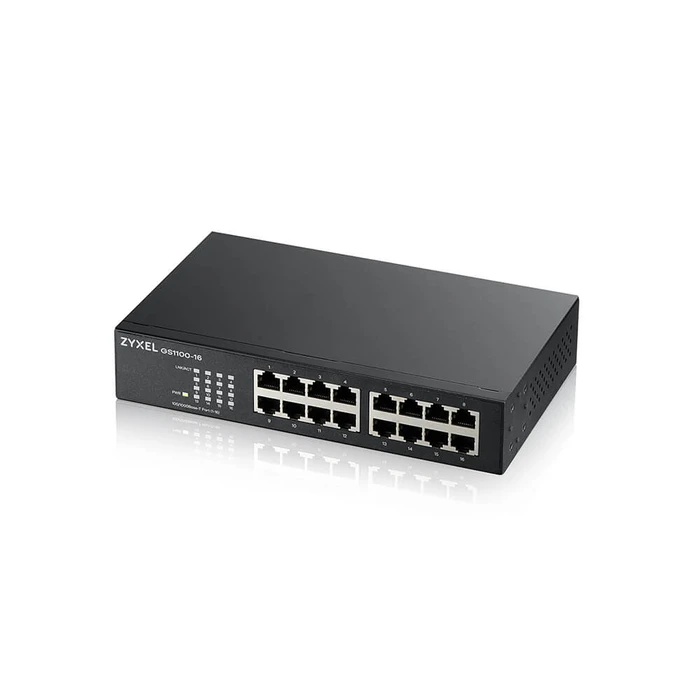

Network Switch Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)

Technical Specifications

• LED indicators
  Link
• Electromagnetic compatibility
  CE, FCC, RCM, ICES-003, BSMI
• Rack mounting
  Y
• Wall mountable
  Y
• AC input frequency
  50/60 Hz
• AC input voltage
  100 - 240 V
• Power consumption (max)
  10 W
• Power supply included
  Y
• Number of power supply units
  1
• Operating relative humidity (H-H)
  10 - 90%
• Operating temperature (T-T)
  0 - 40 Β°C
• Storage temperature (T-T)
  -40 - 70 Β°C
• Storage relative humidity (H-H)
  10 - 95%
• Heat dissipation
  32.86 BTU/h
• Switch type
  Unmanaged
• Height
  42 mm
• Width
  215 mm
• Depth
  133 mm
• Weight
  19.8 kg
• Networking standards
  IEEE 802.3u
• Flow control support
  Y
• Active link detection
  Y
• Cable types supported
  Cat3
• Auto MDI/MDI-X
  Y
• 10G support
  N
• Fanless
  Y
• Mean time between failures (MTBF)
  1156942 h
• Rack mount kit
  Y
• Package type
  Box
• Cables included
  AC
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity
  16
• Forwarding rate
  23.8 Mpps
• Jumbo frames
  9216
• Switching capacity
  32 Gbit/s
• Packet buffer memory
  0.5 MB
• MAC address table
  8000 entries
• Jumbo frames support
  Y
• Power over Ethernet (PoE)
  N
