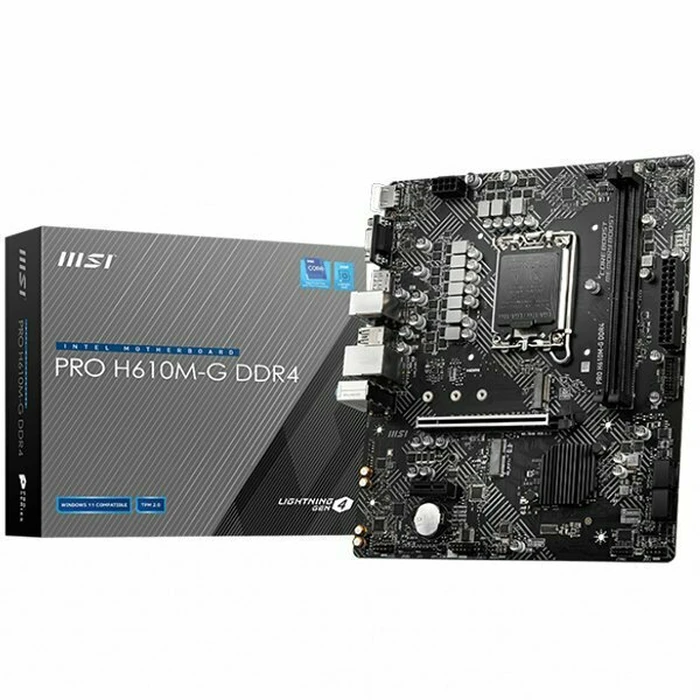

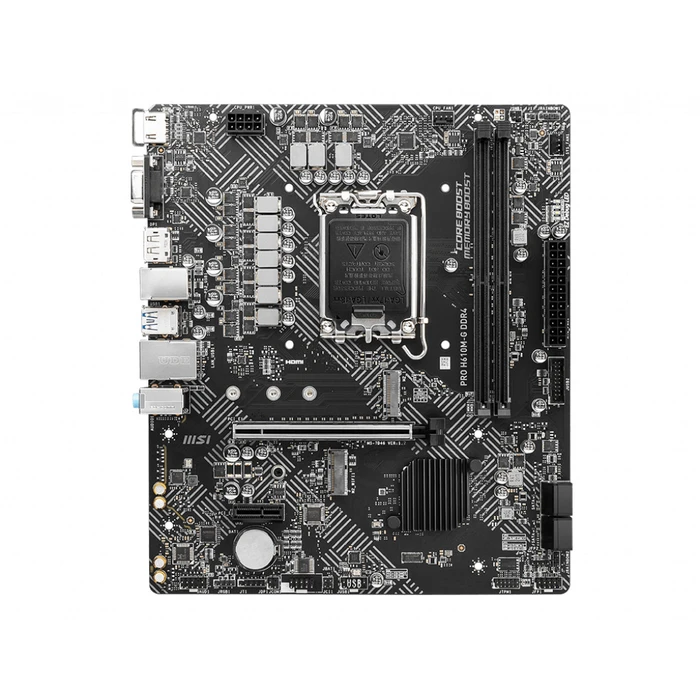

Motherboard MSI PRO H610M-G DDR4 - micro ATX - LGA1700-Sockel - H610

Technical Specifications

• Installed number
  0
• Max number supported
  1
• form factor
  Micro ATX
• chipset
  Intel H610
• Supported RAM technology
  DDR4 SDRAM
• Supported RAM integrity check
  Non ECC
• Supported RAM speed
  3200MHz, 2133MHz, 2666MHz, 2933MHz
• processor socket
  LGA1700 socket
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  2 DIMM slots
• Internal interfaces
  1 x audio header, 2 x USB 2.0 header, 2 x USB 3.2 Gen 1 header
• performance characteristics
  Two channel memory architecture
• Type
  Graphics adapter (CPU required)
• Type
  sound card
• compatibility
  High definition audio
• audio codec
  Realtek ALC892/ALC897
• Audio
  High Definition Audio (8-channel)
• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• network controller
  Intel I219V
• network
  gigabit ethernet
• expansion slots
  1 x CPU, 1 x M.2 socket (for WLAN module), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
• storage interfaces
  SATA-600 connectors: 4 x 7-pin Serial ATA, SATA-600 / PCIe 3.0 connectors: 1 x M.2
• Storage
  Serial ATA-600, M.2 socket
• RAID Features
  Intel Smart Response Technology
• FireWire
  USB 3.2 Gen 1
• mass storage interfaces
  4x SATA 600, 1x M.2
• USB/FireWire port configuration (active)
  2x USB 3.2 Gen 1 + 4x USB 2.0
• USB/FireWire port configuration (headers)
  2x USB 3.2 Gen 1 + 2x USB 2.0
• broad
  23.6 cm
• depth
  20.2 cm
