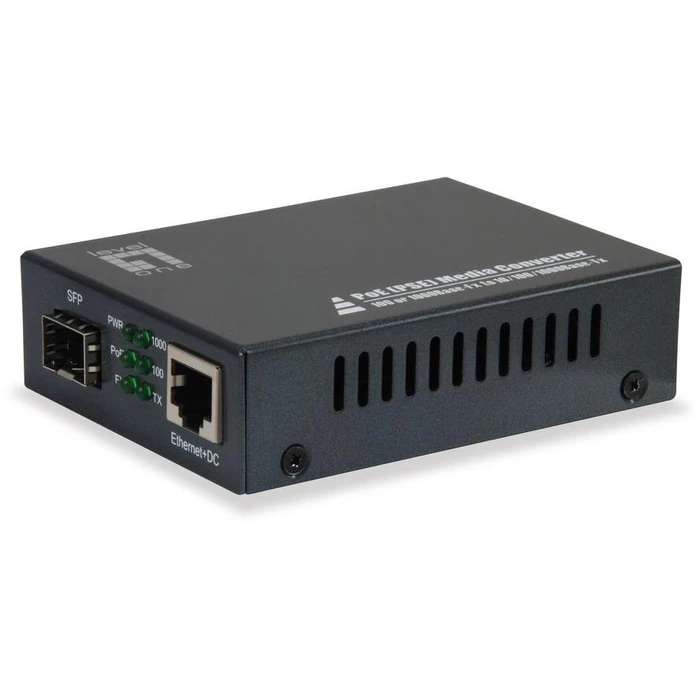

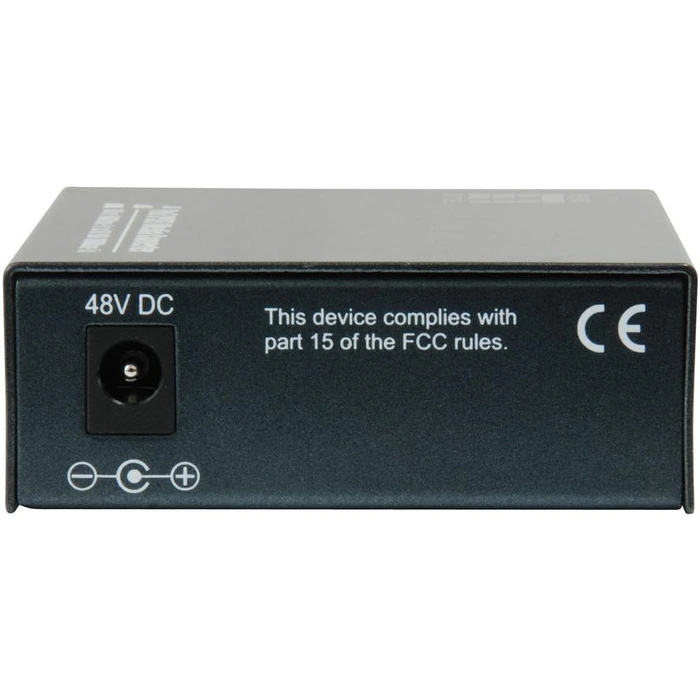

Μετατροπέας LevelOne Media GVT-2012 RJ45 to SFP PoE

Technical Specifications

• Input voltage
  48-57 V.
• Input current
  1 A
• Output voltage
  48 V
• Power over Ethernet (PoE)
  yes
• Maximum data transfer rate
  1000 Mbit / s
• Converter input interface
  10Base-T, 100Base-TX, 1000Base-T
• Converter output surface
  1000Base-LX, 1000Base-SX
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Ethernet interface type
  Gigabit Ethernet
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Ethernet cable cabling technology
  1000BASE-LX, 1000BASE-SX
• Jumbo frames support
  yes
• Jumbo frames
  9000
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full, half
• DC connection
  yes
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SFP
• Number of Power over Ethernet plus (PoE +) connections
  1
• Mean Time Between Failures (MTBF)
  30000 h
• Certification
  CE, RoHS
• Built-in
  no
• Country of origin
  China
• LED indicators
  yes
• Product color
  black
• Sustainability certificates
  RoHS
• AC power adapter
  yes
• Quick installation guide
  yes
• Packaging width
  230 mm
• Packaging depth
  195 mm
• Packing height
  70 mm
• Package weight
  500 g
• Packaging type
  box
• Operating temperature range
  -10 - 60 ° C
• Storage temperature range
  -40 - 85 ° C
• Humidity in operation
  5 - 90%
• Width of the shipping box
  42 cm
• Length of the shipping box
  44 cm
• Height of the shipping box
  36.7 cm
• Shipping box weight
  13 kg
• Quantity per shipping box
  20 piece (s)
• width
  70 mm
• depth
  94 mm
• height
  26 mm
• Weight
  200 g
