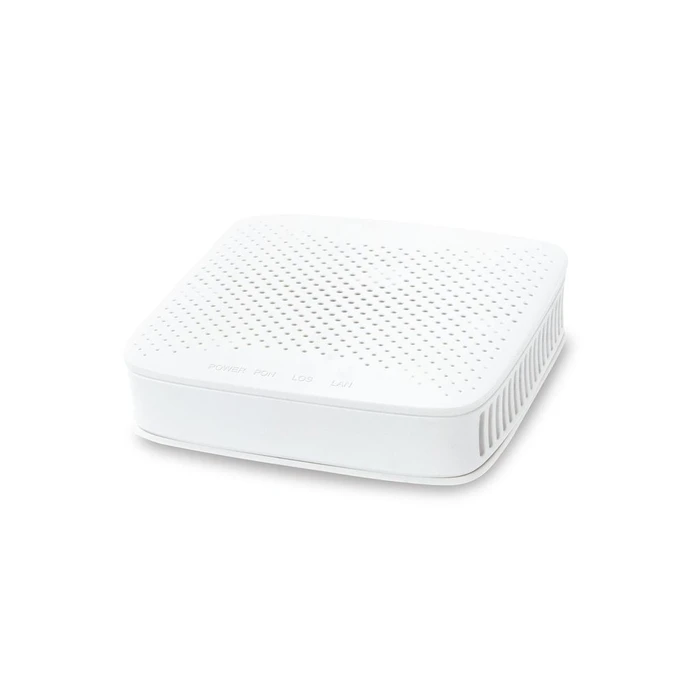

Network Terminal Planet GPN-100 1-Port GPON Optical

The PLANET GPN-100 is a compact GPON Optical Network Terminal (ONT) ideal for FTTx applications. This device features a single SC/UPC GPON port that complies with ITU-T G.984/988 standards, offering impressive data transmission rates of 2.5 Gbps downstream and 1.25 Gbps upstream over distances of...

Network Terminal Planet GPN-100 1-Port GPON Optical

Name: Network Terminal Planet GPN-100 1-Port GPON Optical
Brand: Planet Technology
SKU: 1117615113
Price: 28.34 EUR
Availability: OutOfStock

Product Code: 1117615113

Available in 1 - 3 days

28,34 €

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

The PLANET GPN-100 is a compact GPON Optical Network Terminal (ONT) ideal for FTTx applications. This device features a single SC/UPC GPON port that complies with ITU-T G.984/988 standards, offering impressive data transmission rates of 2.5 Gbps downstream and 1.25 Gbps upstream over distances of up to 20 km.

One of the standout characteristics of the GPN-100 is its Gigabit Ethernet RJ45 port, which supports 10/100/1000BASE-T connectivity. This allows for high-speed internet access that meets the demands of modern users.

Key Technical Specifications

Transmission Rates: Upstream 1.25 Gbps, downstream 2.5 Gbps; supports 1:128 split ratio with compatible OLT, such as the PLANET GPL-8000.
Optical Parameters: TX wavelength at 1310 nm, RX wavelength at 1490 nm; optical TX power ranging from 0.5 to 5 dBm.
Features: The GPN-100 boasts a plug-and-play installation, dynamic bandwidth allocation (DBA), rate limiting, QoS prioritization, and eco-friendly low-power green technology.
LED Indicators: Includes indicators for power, PON, LOS, and LAN link.
Compliance: Meets ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON access.

The compact and versatile design allows easy integration into various settings, making it an excellent choice for efficient GPON deployments.

Transmission Rates

Downstream 2.5 Gbps, Upstream 1.25 Gbps
TX Wavelength

1310 nm
RX Wavelength

1490 nm
Optical TX Power

0.5~5 dBm
Optical Receive Sensitivity

-28 dBm
Split Ratio

1:128
Port Type

SC/UPC GPON, RJ45 Ethernet

Ratings

How do you rate this product?

0/5

Description

Key Technical Specifications

Transmission Rates: Upstream 1.25 Gbps, downstream 2.5 Gbps; supports 1:128 split ratio with compatible OLT, such as the PLANET GPL-8000.
Optical Parameters: TX wavelength at 1310 nm, RX wavelength at 1490 nm; optical TX power ranging from 0.5 to 5 dBm.
Features: The GPN-100 boasts a plug-and-play installation, dynamic bandwidth allocation (DBA), rate limiting, QoS prioritization, and eco-friendly low-power green technology.
LED Indicators: Includes indicators for power, PON, LOS, and LAN link.
Compliance: Meets ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON access.

The compact and versatile design allows easy integration into various settings, making it an excellent choice for efficient GPON deployments.

Technical Specifications

Transmission Rates

Downstream 2.5 Gbps, Upstream 1.25 Gbps
TX Wavelength

1310 nm
RX Wavelength

1490 nm
Optical TX Power

0.5~5 dBm
Optical Receive Sensitivity

-28 dBm
Split Ratio

1:128
Port Type

SC/UPC GPON, RJ45 Ethernet
