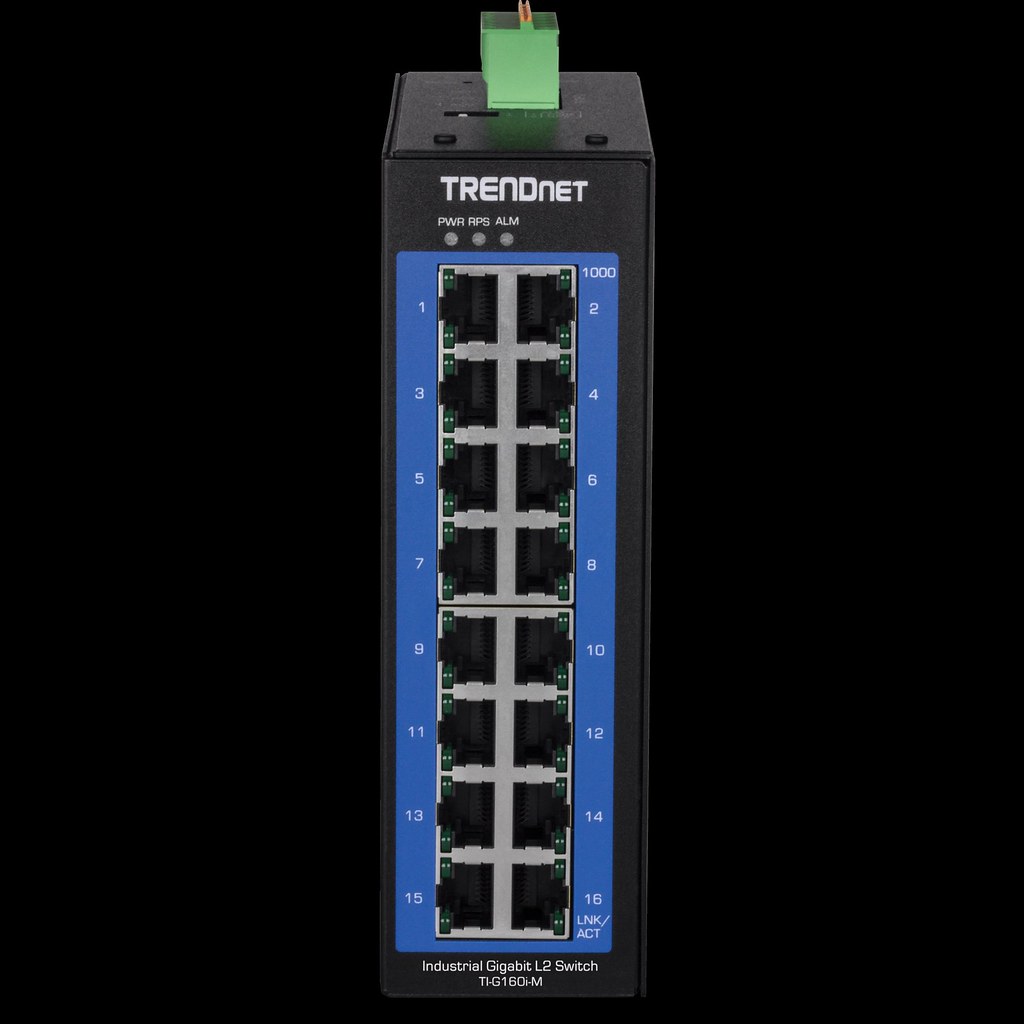

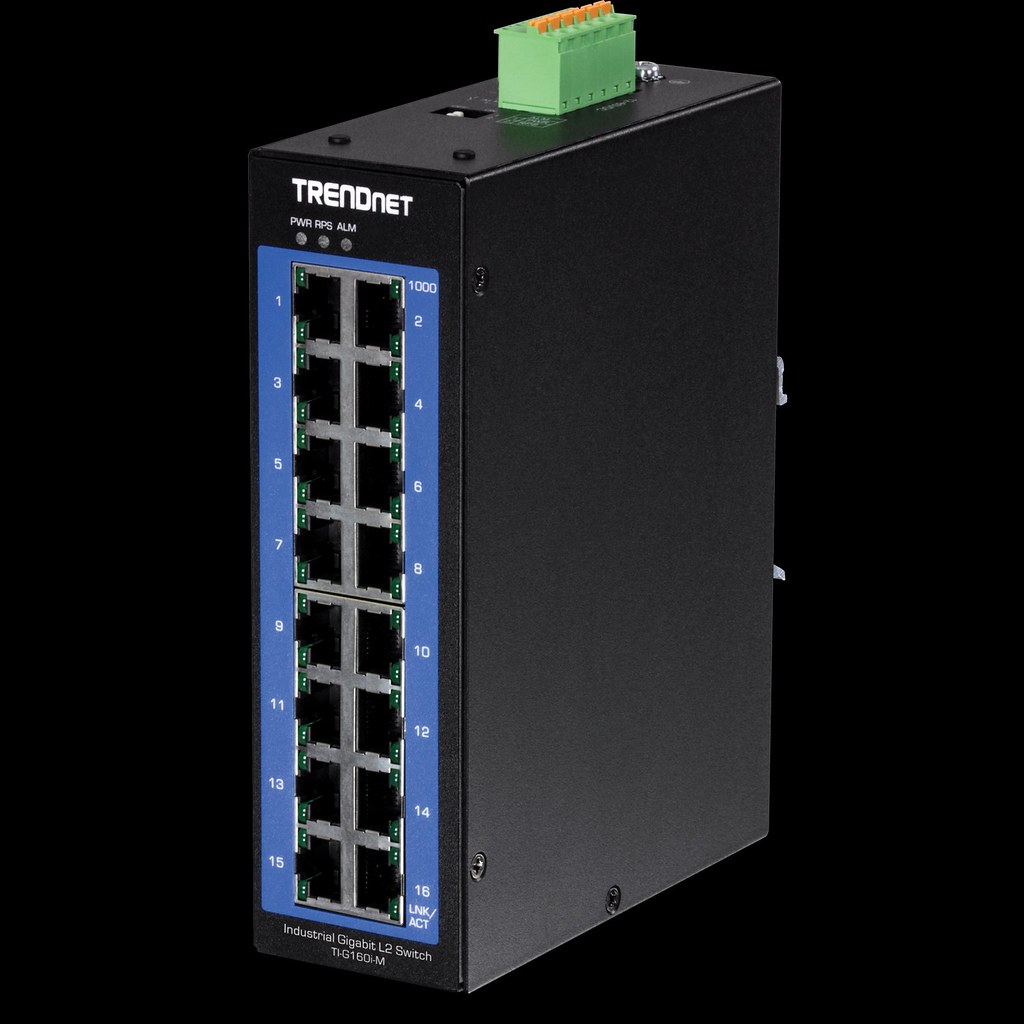

Network Switch Trendnet 16-Port Industr. Gigabit L2 Managed DIN-Rail Swit

Technical Specifications

• manufacturer's warranty
  Limited lifetime warranty (in Germany, the statutory warranty regulations apply)
• TAA-compatible
  Yes
• product certifications
  IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
• performance features
  VLAN support, IGMP snooping, syslog support, port mirroring, store-and-forward, broadcast storm control, half-duplex mode, full-duplex mode, multicast storm control, firmware upgradable, SNTP support, WFQ, STP support, RSTP support, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, fanless, LACP support, LLDP support, DHCP relay, port security, SNMP trap, integrated DIP switch, port isolation, CoS, SP, tagged VLAN, 8KV ESD protector, ONVIF support, 802.1x authentication, metal housing, per-port bandwidth control, DSCP support, ERPS, shockproof, vibrationproof, storm control, ARP inspection, 6 kV surge protection, MIB II, DLF, IGMP interrogator, root guard, Private VLAN, BPDU Filter, WRR, MAC based VLAN, Loopback detection, Modbus compatible, Traffic Monitoring, BPDU Guard, Queue scheduling support, TCP support, SMTP notifications
• Remote Management Protocol
  SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, RADIUS
• Routing Protocol
  IGMP
• Jumbo frame support
  10KB
• size of the MAC address table
  8000 entries
• capacity
  VLAN groups: up to 256 ¦ Multicast groups: up to 256
• Performance
  Switching capacity: 32 Gbit/s ¦ Forwarding performance (packet size 64 bytes): 23.8 Mpps
• ports
  16 x 10/100/1000
• subtype
  Gigabit Ethernet
• Width
  5 cm
• Weight
  884 g
• Height
  16 cm
• depth
  12 cm
• Manufacturer
  TRENDnet
• brand
  TRENDnet
• Model
  TI-G160i-M
• packaging quantity
  1
• product line
  TRENDnet
• number of connections
  16
• form factor
  Can be mounted on DIN rail
• Jumbo frame support
  10KB
• Easy to manage
  Yes
• Remote Management Protocol
  SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RADIUS, SSH-2, CLI, Telnet, SNMP 3, SNMP 2c, HTTP
• Routing Protocol
  IGMP
• type
  Switch
• subcategory
  network hubs and switches
• subtype
  Gigabit Ethernet
• Installed size
  128 MB
• type
  Limited lifetime warranty (in Germany, the statutory warranty regulations apply)
• color category
  Black
