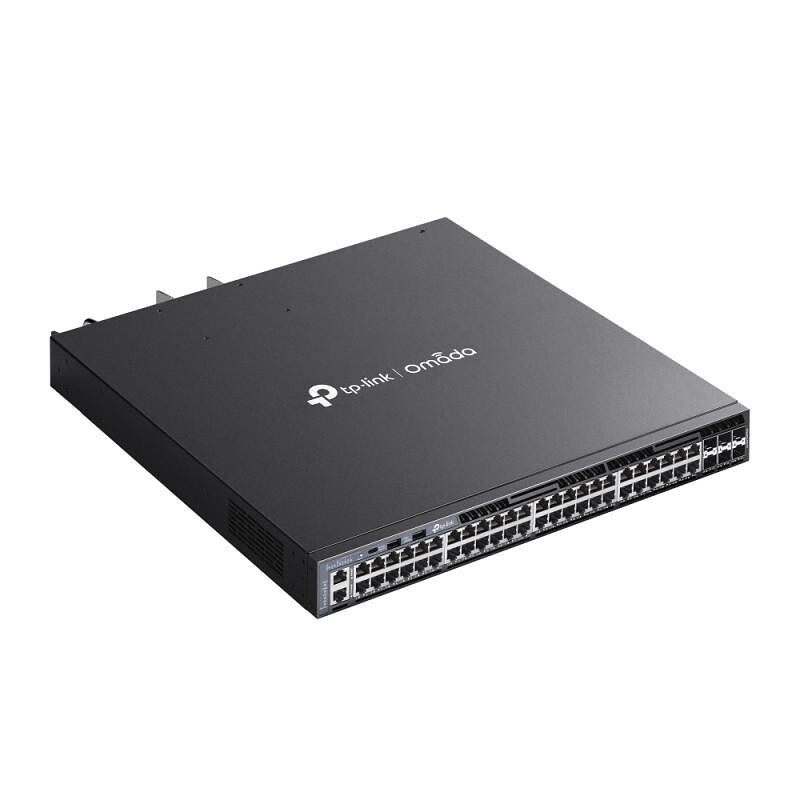

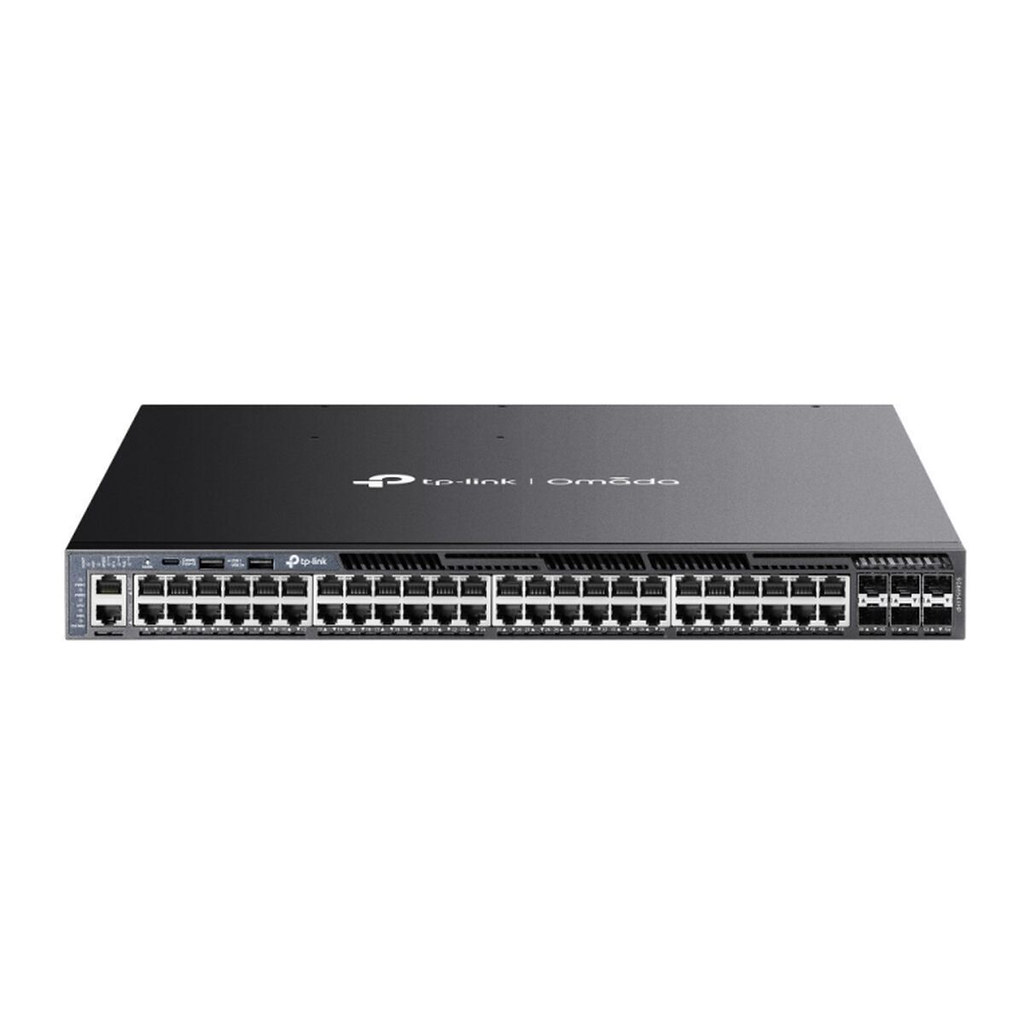

Network Switch TP-Link SG6654XHP (SG6654XHP)
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Network Switch TP-Link Omada ES216G Managed L2 Gigabit Ethernet (10/100/1000) Black
Network Switch Zyxel GS1900-8HP v3 PoE Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch TP-Link Archer AX3000 Dual Band Gigabit Wi-Fi 6 Router
Network Switch Mikrotik CRS106-1C-5S Gigabit Ethernet (10/100/1000) (PoE) White
Network Switch Ubiquiti UniFi Flex Mini 2.5G Managed 2.5G Ethernet (100/1000/2500) (PoE) Desktop White
Network Switch Cudy GS1010PE Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch Mikrotik RB260GS Gigabit Ethernet (10/100/1000) (PoE) White
Network Switch Netgear 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP)
Network Switch TP-Link IES206GPP Managed Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch TP-Link Omada ES208G Managed L2 Gigabit Ethernet (10/100/1000) Black
Network Switch Zyxel GS1200-5HPV3 Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Desktop Grey
Network Switch Zyxel GS1200-8HPV3 Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Desktop Grey
Network Switch HP Enterprise 48+4P OfficeConnect 1950 48G 2SFP+ 2XGT PoE+ (370W)
Network Switch HP Enterprise 48+4P Aruba 6000 48G 4 SFP POE+ (370W) M RM
The TP-Link SG6654XHP is an enterprise-grade Layer 3 managed network switch, tailored for advanced network setups in small to medium-sized businesses (SMBs), corporations, and internet service providers (ISPs).
This switch encompasses a total of 48 gigabit RJ45 PoE+ ports that adhere to IEEE 802.3at/af standards, delivering a maximum PoE power budget of 1440 W. Each port is capable of supplying up to 30 watts, allowing for seamless deployment of power-intensive devices such as wireless access points, IP cameras, and VoIP phones without the need for additional power cabling.
Key Features
- Uplink and Stacking: 6× 10 Gbps SFP+ slots and support for stacking of up to 8 switches.
- Switching Capacity: Total of 864 Gbps with individual units supporting 216 Gbps.
- Forwarding Rate: Capable of handling 160.7 Mpps.
The SG6654XHP is equipped with comprehensive Layer 3 routing features including Static Routing, RIP, OSPF, ECMP, and VRRP to support resilient network architectures. This switch also offers optional hot-swappable redundant power supplies, ensuring high availability.
Security Measures
- Access Control Lists (ACL): Supports both IPv4 and IPv6.
- Dynamic ARP Inspection and IEEE 802.1X authentication.
- Encrypted Management: SSI and SSL supported for secure access.
In summary, the TP-Link SG6654XHP combines robust power delivery, high-speed connectivity, and scalable stacking with strong security features, making it a reliable choice for demanding network environments.
-
Ports48× 10/100/1000 Mbps RJ45 PoE+ ports
-
SFP+6× 10 Gbps SFP+ slots
-
Console1× RJ45 Console, 1× USB Type-C Console
-
USB2× USB 2.0 Ports
-
Switching Capacity216 Gbps
-
Forwarding Rate160.7 Mpps
-
MAC Address Table Size32000 entries
-
Packet Buffer Memory3 MB
-
Jumbo Frames SupportUp to 9000 bytes
-
PoE StandardIEEE 802.3at/af compliant
-
Total PoE Power Budget1440 W
-
Max Power Per Port30 W
-
VLANIEEE 802.1Q VLAN
-
QoS802.1p QoS
-
Flow Control802.3x flow control
-
DHCPDHCP Server and Relay
-
ManagementWeb GUI, CLI
-
Encrypted ManagementSSL and SSH
-
ACLIPv4/IPv6
-
Operating Temperature-5 °C to 40 °C
-
CertificationsCE, FCC, RoHS
-
Memory4 GB DDR4 DRAM, 8 GB eMMC
Ratings
Description
The TP-Link SG6654XHP is an enterprise-grade Layer 3 managed network switch, tailored for advanced network setups in small to medium-sized businesses (SMBs), corporations, and internet service providers (ISPs).
This switch encompasses a total of 48 gigabit RJ45 PoE+ ports that adhere to IEEE 802.3at/af standards, delivering a maximum PoE power budget of 1440 W. Each port is capable of supplying up to 30 watts, allowing for seamless deployment of power-intensive devices such as wireless access points, IP cameras, and VoIP phones without the need for additional power cabling.
Key Features
- Uplink and Stacking: 6× 10 Gbps SFP+ slots and support for stacking of up to 8 switches.
- Switching Capacity: Total of 864 Gbps with individual units supporting 216 Gbps.
- Forwarding Rate: Capable of handling 160.7 Mpps.
The SG6654XHP is equipped with comprehensive Layer 3 routing features including Static Routing, RIP, OSPF, ECMP, and VRRP to support resilient network architectures. This switch also offers optional hot-swappable redundant power supplies, ensuring high availability.
Security Measures
- Access Control Lists (ACL): Supports both IPv4 and IPv6.
- Dynamic ARP Inspection and IEEE 802.1X authentication.
- Encrypted Management: SSI and SSL supported for secure access.
In summary, the TP-Link SG6654XHP combines robust power delivery, high-speed connectivity, and scalable stacking with strong security features, making it a reliable choice for demanding network environments.
Technical Specifications
-
Ports48× 10/100/1000 Mbps RJ45 PoE+ ports
-
SFP+6× 10 Gbps SFP+ slots
-
Console1× RJ45 Console, 1× USB Type-C Console
-
USB2× USB 2.0 Ports
-
Switching Capacity216 Gbps
-
Forwarding Rate160.7 Mpps
-
MAC Address Table Size32000 entries
-
Packet Buffer Memory3 MB
-
Jumbo Frames SupportUp to 9000 bytes
-
PoE StandardIEEE 802.3at/af compliant
-
Total PoE Power Budget1440 W
-
Max Power Per Port30 W
-
VLANIEEE 802.1Q VLAN
-
QoS802.1p QoS
-
Flow Control802.3x flow control
-
DHCPDHCP Server and Relay
-
ManagementWeb GUI, CLI
-
Encrypted ManagementSSL and SSH
-
ACLIPv4/IPv6
-
Operating Temperature-5 °C to 40 °C
-
CertificationsCE, FCC, RoHS
-
Memory4 GB DDR4 DRAM, 8 GB eMMC
