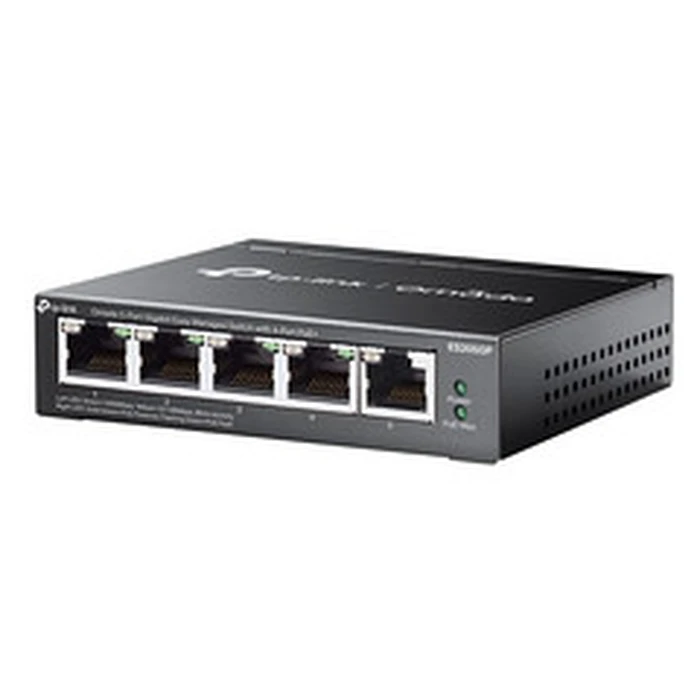

The TP-Link Omada ES205G is a 5-port gigabit easy managed switch designed to optimize network performance and efficiency. This compact, fanless switch is built for silent operation and features a durable metal casing that supports both desktop and wall-mount installations.

Key Features

• Ports and Speed: The ES205G comes with 5 ? 10/100/1000 Mbps RJ45 ports, ensuring high-speed connectivity for various devices.
• Plug-and-Play Connectivity: It supports plug-and-play functionality for instant connectivity, making it easy to set up and use.
• Centralized Cloud Management: The switch offers centralized cloud management via the web or the Omada app, allowing for remote management of access points, switches, and gateways across multiple sites from a single interface.
• Automatic Loop Prevention and VLAN: It features automatic loop prevention, VLAN support, and IGMP snooping to manage network traffic efficiently.
• Quality of Service (QoS): The switch supports QoS for traffic prioritization, ensuring that critical data is transmitted first. It also includes 8 priority queues, priority schedule mode (WRR), queue weight configuration, bandwidth control, and storm control to manage network traffic effectively.
• VLAN Support: The ES205G supports up to 32 VLAN groups and 4K VLAN IDs, making it suitable for complex networking needs.

Performance Specifications:

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 million packets per second (Mpps)
• MAC Address Table: 8,000 entries
• Packet Buffer Memory: 4 Mbits

Hardware and Environmental Specifications:

• Dimensions: 100 ? 98 ? 25 mm
• Power Supply: External DC power adapter with an output of 5 VDC/0.6 A
• Surge Protection: ±6kV
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Software and Management Features:

• Unified Management Interface: The switch supports unified management through the Omada app, Omada hardware controller, or Omada software controller.
• Zero-Touch Provisioning (ZTP): It supports zero-touch provisioning, which requires the use of the Omada cloud-based controller.

Certification and Compliance:

• Certification: FCC, CE, RoHS compliant

Package Contents:

• The ES205G switch
• Power adapter
• Installation guide
• Rubber feet

The TP-Link Omada ES205G is a versatile and reliable network switch designed to enhance any networking setup with its robust features and easy-to-use interface. Its centralized cloud management capabilities and advanced QoS features make it an ideal choice for both small and medium-sized networks.
