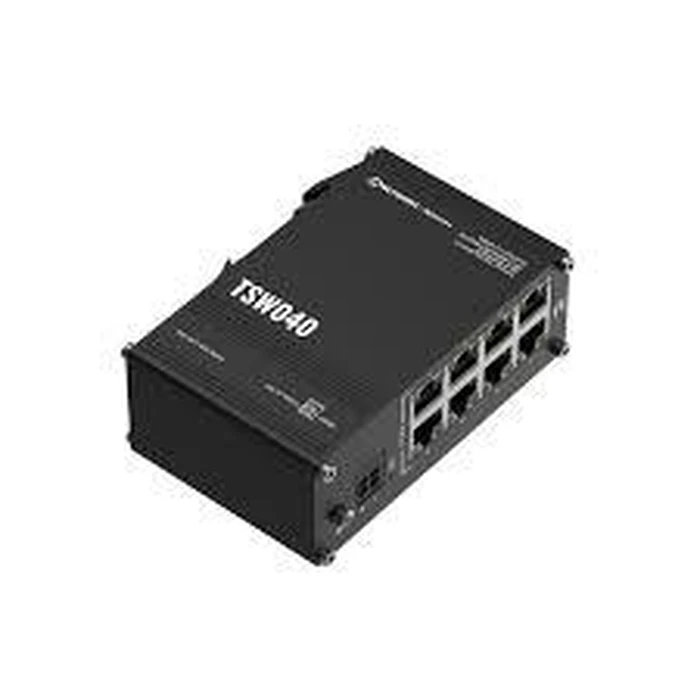

Network Switch Teltonika / Tsw040 / 8Xrj45 / Poe+ Ports 8 / 240 Watts / Tsw040
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- Ship with ACS Courier
- Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
Pickup from BoxNow automated machine:
With BoxNow you can pick up your package from an Automated Pickup Machine near you at any time, 24/7. Cash on delivery available with an additional €1 fee.
-
Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Network Switch Zyxel GS1900-8HP v3 PoE Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch TP-Link Archer AX3000 Dual Band Gigabit Wi-Fi 6 Router
Network Switch TP-Link Omada ES216G Managed L2 Gigabit Ethernet (10/100/1000) Black
Network Switch Mikrotik CRS106-1C-5S Gigabit Ethernet (10/100/1000) (PoE) White
Network Switch Ubiquiti UniFi Flex Mini 2.5G Managed 2.5G Ethernet (100/1000/2500) (PoE) Desktop White
Network Switch Zyxel GS1200-8HPV3 Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Desktop Grey
Network Switch Zyxel GS1200-5HPV3 Managed L2 Gigabit Ethernet (10/100/1000) (PoE) Desktop Grey
Network Switch Cudy GS1010PE Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch Netgear 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP)
Network Switch Mikrotik RB260GS Gigabit Ethernet (10/100/1000) (PoE) White
Network Switch TP-Link IES206GPP Managed Gigabit Ethernet (10/100/1000) (PoE) Black
Network Switch TP-Link Omada ES208G Managed L2 Gigabit Ethernet (10/100/1000) Black
Network Switch HP Enterprise 48+4P OfficeConnect 1950 48G 2SFP+ 2XGT PoE+ (370W)
The Teltonika TSW040 is an unmanaged 8-port PoE+ switch tailored for industrial applications. This compact and rugged device features eight RJ45 ports, providing a total power budget of 240 watts, with each port capable of delivering up to 30 watts.
Key Features
- Ports and Speed: Eight 10/100 Mbps Ethernet ports ensure efficient data transfer. Auto MDI/MDIX support makes device connections straightforward.
- Power over Ethernet (PoE+): Complies with IEEE 802.3af and 802.3at standards, ideal for devices like IP cameras and access points, negating the need for additional power sources.
- Power Input: Features a 2-pin industrial DC power socket that supports a wide voltage range of 7-57 VDC, along with overvoltage and reverse polarity protection.
- Mounting Options: Integrated DIN rail bracket facilitates easy mounting in industrial settings; also compatible with wall or flat surface mounts via additional kits.
- Physical Specifications: With an anodized aluminum housing, the switch measures 113.1 mm in width, 41.2 mm in height, and 74.6 mm in depth, weighing approximately 280 grams.
- Operating Environment: Operates within -40°C to 75°C temperature range and maintains a humidity tolerance of 10% to 90% non-condensing, with an ingress protection rating of IP30.
This robust switch meets various regulatory and safety standards, ensuring reliability in challenging industrial conditions.
-
Ethernet_Ports8 x ETH ports
-
Ethernet_Speed10/100 Mbps
-
Compliance_StandardsIEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
Auto_MDI_MDIXSupported
-
PoE_Ports8 x PoE ports
-
PoE_Compliance_StandardsIEEE 802.3af and 802.3at
-
Max_Power_Per_Port30 W
-
Total_Power_Budget240 W
-
Bandwidth20 Gbps
-
Packet_Buffer128 KB
-
MAC_Address_Table_Size2K entries
-
Jumbo_Frame_Support9216 bytes
-
Input_Voltage_Range7 57 VDC
-
Overvoltage_Protection60V max
-
Reverse_Polarity_Protection80V max
-
Surge_ProtectionBreakdown voltage of 64.4V to 71.2V
-
Max_Reverse_Voltage93.6V
-
Max_Reverse_Surge_Current4.3A
Ratings
Description
The Teltonika TSW040 is an unmanaged 8-port PoE+ switch tailored for industrial applications. This compact and rugged device features eight RJ45 ports, providing a total power budget of 240 watts, with each port capable of delivering up to 30 watts.
Key Features
- Ports and Speed: Eight 10/100 Mbps Ethernet ports ensure efficient data transfer. Auto MDI/MDIX support makes device connections straightforward.
- Power over Ethernet (PoE+): Complies with IEEE 802.3af and 802.3at standards, ideal for devices like IP cameras and access points, negating the need for additional power sources.
- Power Input: Features a 2-pin industrial DC power socket that supports a wide voltage range of 7-57 VDC, along with overvoltage and reverse polarity protection.
- Mounting Options: Integrated DIN rail bracket facilitates easy mounting in industrial settings; also compatible with wall or flat surface mounts via additional kits.
- Physical Specifications: With an anodized aluminum housing, the switch measures 113.1 mm in width, 41.2 mm in height, and 74.6 mm in depth, weighing approximately 280 grams.
- Operating Environment: Operates within -40°C to 75°C temperature range and maintains a humidity tolerance of 10% to 90% non-condensing, with an ingress protection rating of IP30.
This robust switch meets various regulatory and safety standards, ensuring reliability in challenging industrial conditions.
Technical Specifications
-
Ethernet_Ports8 x ETH ports
-
Ethernet_Speed10/100 Mbps
-
Compliance_StandardsIEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
Auto_MDI_MDIXSupported
-
PoE_Ports8 x PoE ports
-
PoE_Compliance_StandardsIEEE 802.3af and 802.3at
-
Max_Power_Per_Port30 W
-
Total_Power_Budget240 W
-
Bandwidth20 Gbps
-
Packet_Buffer128 KB
-
MAC_Address_Table_Size2K entries
-
Jumbo_Frame_Support9216 bytes
-
Input_Voltage_Range7 57 VDC
-
Overvoltage_Protection60V max
-
Reverse_Polarity_Protection80V max
-
Surge_ProtectionBreakdown voltage of 64.4V to 71.2V
-
Max_Reverse_Voltage93.6V
-
Max_Reverse_Surge_Current4.3A
