Sku: 1170490122

Network Switch Teltonika Teltonika Tsw101 5xgbe Ethernet 4xpoe+

74,76 €

Up to 36 instalments by credit card x 2,33€ / month

Installment plan	Amount / month
2	38,45 €
4	19,33 €
6	12,95 €
8	9,77 €
10	7,85 €
12	6,58 €
18	4,46 €
24	3,40 €
36	2,33 €

...More

Product Availability

Είσαι επαγγελματίας; Μπες στο

για καλύτερη τιμή!

Need help?

Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.

Call us now!

Shop now

Methods of Pickup/Shipment

Pickup from the store:

El. Ave. Venizelou 73 (formerly Theseos), Kallithea
Pick up from a BoxNow machine:

With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
Shipping to your location (Calculate shipping):
Ο κωδικός ΤΚ που πληκτρολογήσατε δεν ισχύει

Detailed Description

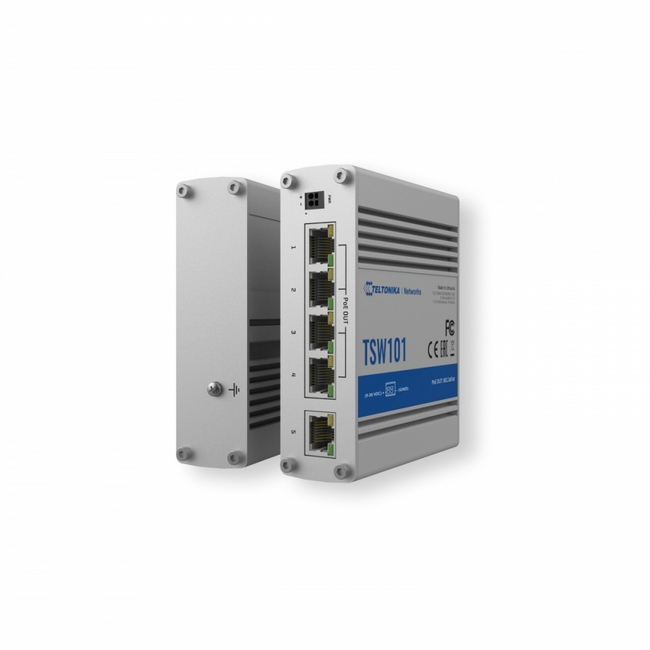

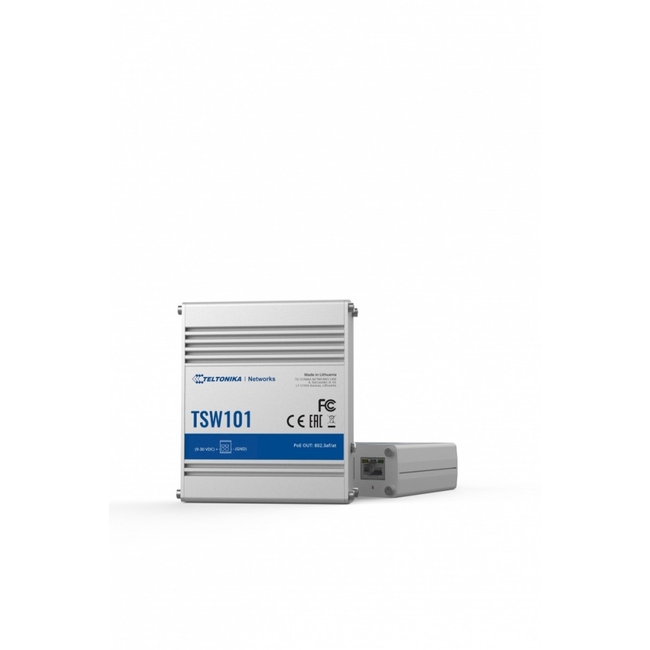

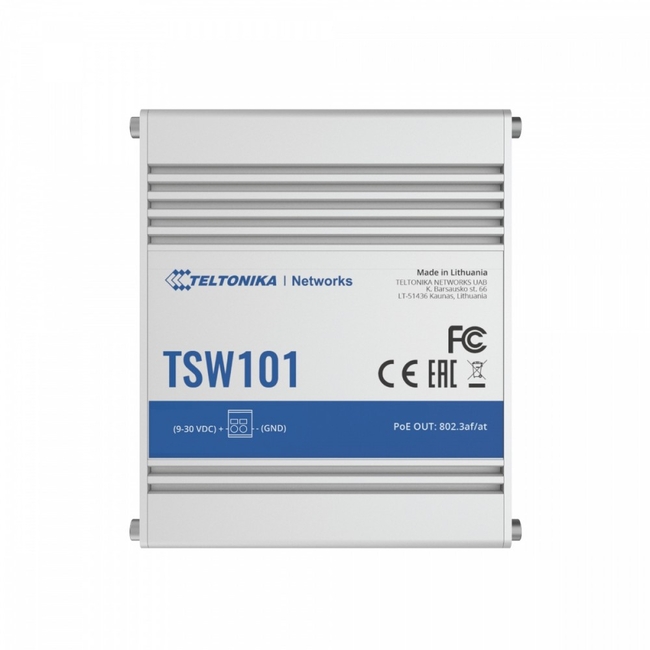

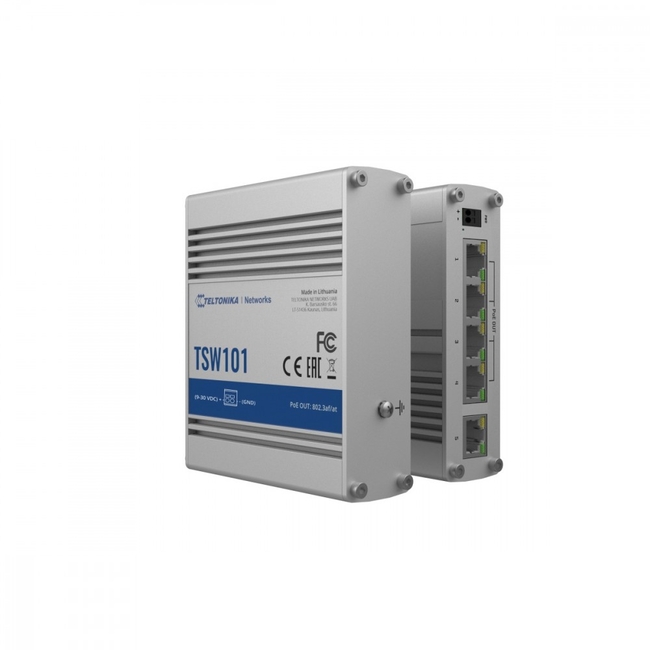

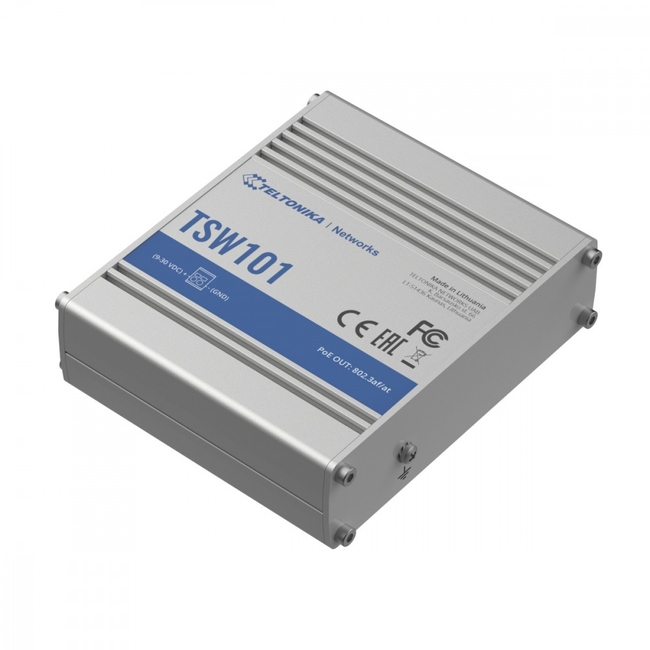

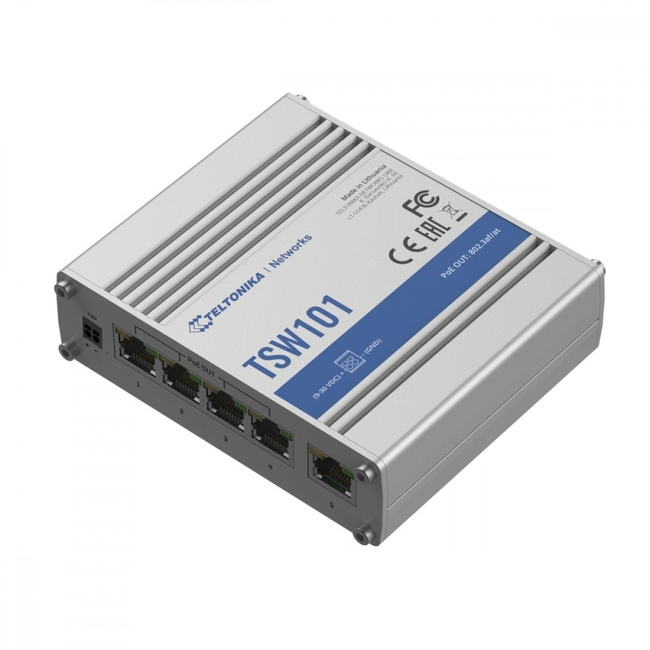

TSW101 switch

TSW101 is the first unmanaged switch from Teltonika Networks dedicated to the automotive industry.
Equipped with five Gigabit Ethernet ports, four of which support the IEEE802.3af and IEEE802.3at PoE+ standards.
A wide range of supported supply voltages (9-30 VDC) and small size allow it to be adapted to many automotive applications.
Classified as Power Supply Equipment (PSE), the device allows you to centralize power - providing up to 30 watts to a single port and a maximum output power of 60 watts.

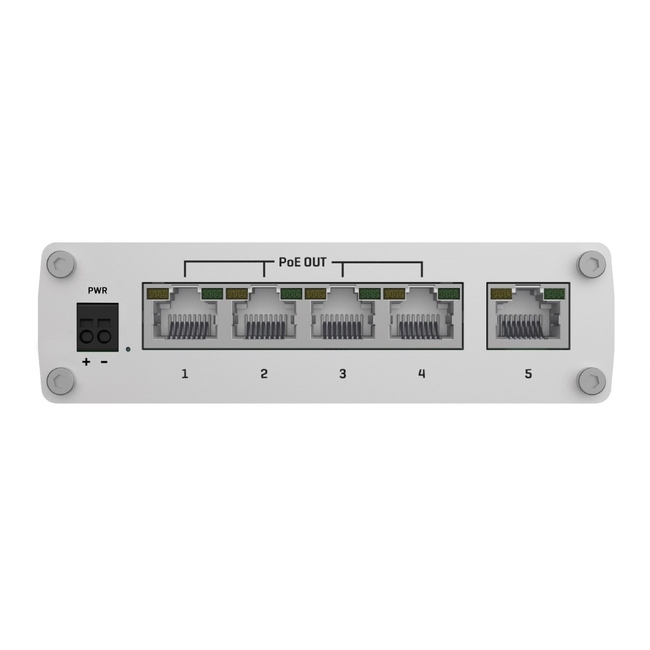

10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
The ideal solution for simultaneous provision of vehicle power and Ethernet data connection.

Switch class: Unmanaged Network architecture: GigabitEthernet Number of 10/100/1000 Mbps ports: 5 Number of PoE ports (PoE & PoE+): 4 Console port: No Support for Jumbo frames: Yes Stackability: No Supported protocols and standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at

Chassis type: Rack Chassis type: Desktop Fan: No Environment requirements:

Operating temperature: -40°C to 75°C
Humidity during operation: 10% to 90% non-condensing

Certificates:

CE
REACH
RoHS
WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
EN IEC 62368-1:2020+A11:2020

Accessories included:

TSW101
Quick start guide

Power supply:

2-pin socket, 9-30 VDC

Dimensions:

115 x 32 x 95 mm

Other features:

IP30 protection
