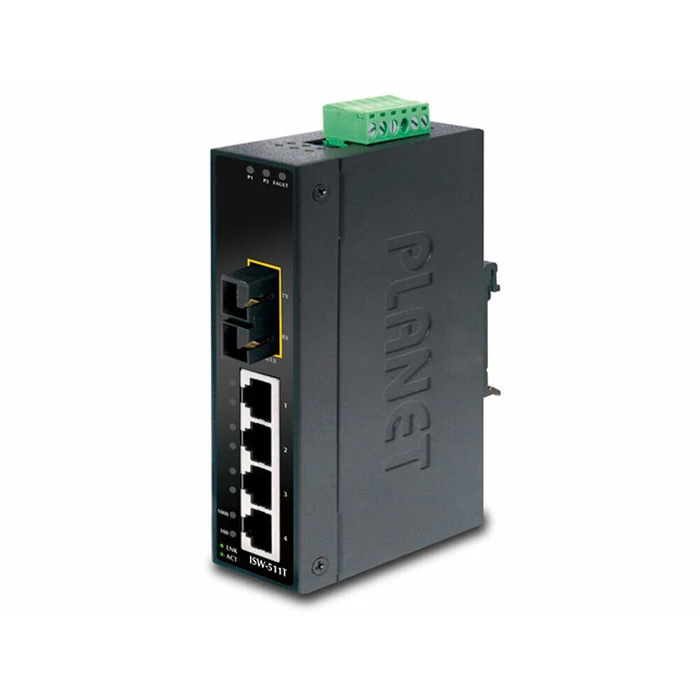

Network Switch Planet 4+1 100FX Port Multi-mode Industrial Ethernet
| Installment plan | Amount / month |
|---|---|
| 2 | 67,64 € |
| 4 | 34,00 € |
| 6 | 22,79 € |
| 8 | 17,18 € |
| 10 | 13,82 € |
| 12 | 11,58 € |
| 18 | 7,84 € |
| 24 | 5,97 € |
| 36 | 4,11 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

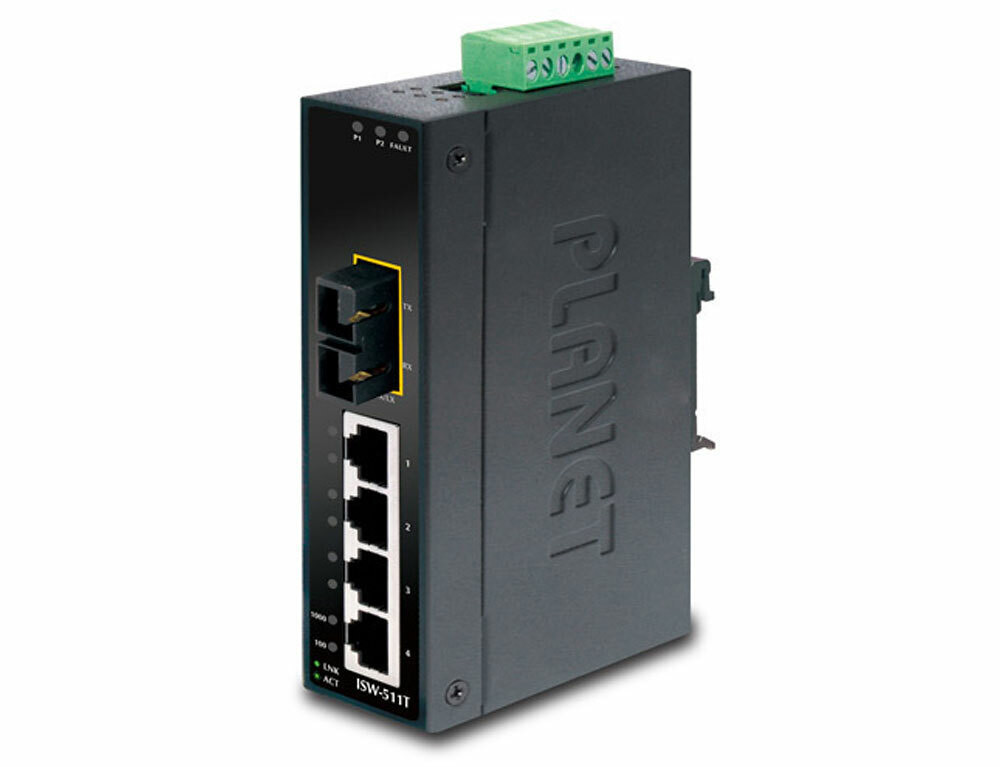

The Network Switch Planet 4+1 100FX Port Multi-mode Industrial Ethernet (model ISW-511T) is specifically designed for industrial applications that demand high reliability in challenging environments. With its robust features, this unmanaged Ethernet switch ensures seamless network connectivity.
Featuring an impressive four 10/100Base-TX RJ-45 ports and one 100Base-FX multi-mode fiber optic SC port, the switch allows for transmission distances up to 2 km when using multi-mode fiber. This makes it an excellent choice for short-distance runs.
Below are the key specifications of the switch:
- Highly Compatible Standards: Supports IEEE 802.3 and IEEE 802.3u for effective Ethernet communication.
- High-performance Architecture: The Store-and-Forward architecture optimizes bandwidth by filtering out error packets.
- Flow Control: Backpressure flow control is available for half duplex, ensuring packet loss prevention.
The switch is crafted with thoughtfulness towards industrial reliability:
- Rugged Metal Case: Designed with an IP-30 rating providing protection against industrial hazards.
- Wide Temperature Range: Operates effectively between -40°C and +75°C, suitable for various environments.
- Flexible Mounting Options: Can be mounted on DIN Rail or walls, allowing for versatile installation.
- Power Input Flexibility: Accepts 12 to 48V DC, ensuring dual redundant power input with reverse polarity protection.
This combination of features makes the ISW-511T a reliable solution for demanding industrial networking applications.
Specifications
-
Ports
- 4 × 10/100Base-TX RJ-45, 1 × 100Base-FX Multi-mode Fiber SC (up to 2 km)
-
Ethernet Standards
- IEEE 802.3, IEEE 802.3u, 10/100Base-TX, 100Base-FX
-
Switch Fabric Speed
- 1 Gbps
-
MAC Address Table
- 2000 absolute addresses
-
Frame Buffer Memory
- 1 Mbit
-
Operating Temperature
- -40 to 75 °C
-
Power Supply
- 12–48 V DC, dual redundant inputs with polarity protection
-
Protection
- IP-30 enclosure, 6KV EFT and ESD protection
-
Mounting
- DIN Rail and Wall mount
-
Dimensions & Build
- Slim IP-30 metal case
-
Power Consumption
- 13.7 W / 46 BTU
