The MERCUSYS MS128GP is a 28-port rackmount Gigabit network switch designed for reliable PoE+ deployments in small and medium business environments. It features 24 Gigabit PoE+ RJ45 ports, 2 additional Gigabit RJ45 uplink ports, and 2 Gigabit SFP combo slots, making it suitable for IP cameras,...
More

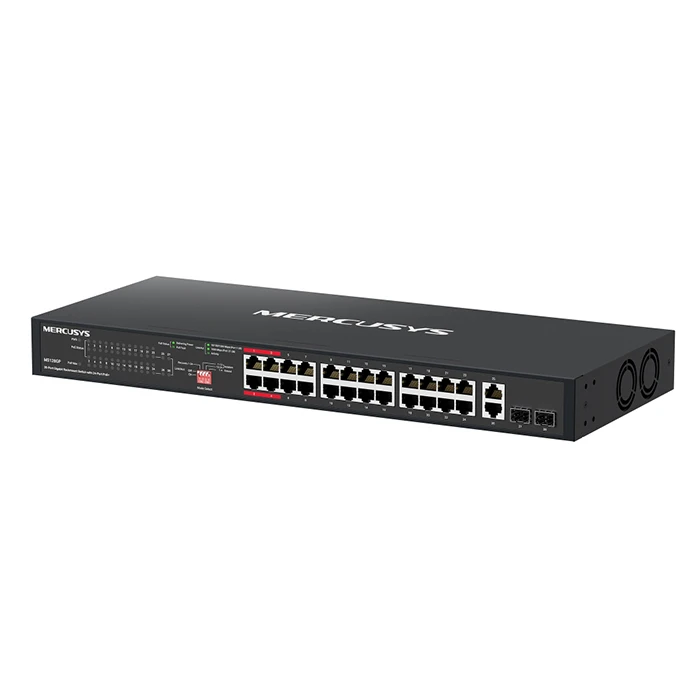

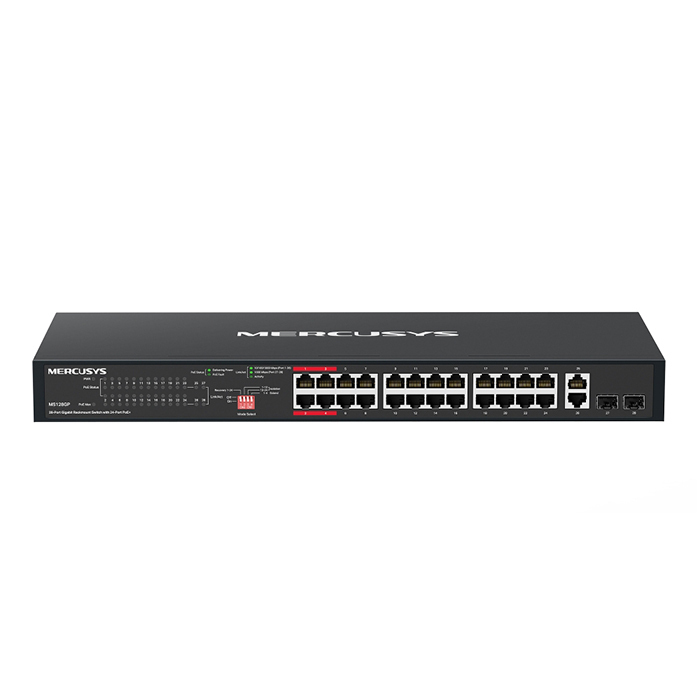

Network Switch MERCUSYS MS128GP 28-Port Gigabit Rackmount with 24-Port PoE Plus
Product Code: 3000630127
Available in 1 - 3 days
201,73 €
or
6,30€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Network Switch MERCUSYS MS128GP 28-Port Gigabit Rackmount with 24-Port PoE Plus
Available in 1 - 3 days
201,73 €
ROUTER MERCUSYS MS108GP 8-Port Gigabit desktop switch with 7 PoE+ ports
Available in 1 - 3 days
40,31 €
Router MERCUSYS MS120GP 20 Port Gigabit Rackmount Switch with 16 PoE Plus Ports
Available in 1 - 3 days
171,54 €
Netgear Switch GS748PP-100EUS 48-Port Gigabit Ethernet Unmanaged PoE Switch
Available in 4 - 10 days
852,26 €
Netgear Switch GS116EPP-100EUS 16 Port Gigabit Easy Smart Managed PoE Plus Switch
Available in 4 - 10 days
370,71 €
Network Switch TP Link TL SF1008P 8 Port 10 100Mbps Desktop PoE Switch
Available in 1 - 3 days
47,45 €
TP-Link Switch Omada Agile ES208GP 8 Port Gigabit Easy Managed PoE Plus
Available in 1 - 3 days
70,83 €
Router Netgear GSM4352 100NES Managed Layer 3 AV IP Switch 48 Port PoE Plus 4 SFP Plus
Available in 4 - 10 days
4.968,09 €
Router TP-Link Switch TL-SG105MPE 5-Port Gigabit Easy Smart PoE Switch
Available in 1 - 3 days
97,61 €
NETGEAR Network Switch 24X 2.5G Multi Gigabit PoE++ 720W with 4X SFP+
Available in 1 - 3 days
2.131,40 €
NETGEAR Network Switch 8 Port PoE Plus Smart Managed Essentials with 2 SFP Ports
Available in 4 - 10 days
195,61 €
The MERCUSYS MS128GP is a 28-port rackmount Gigabit network switch designed for reliable PoE+ deployments in small and medium business environments. It features 24 Gigabit PoE+ RJ45 ports, 2 additional Gigabit RJ45 uplink ports, and 2 Gigabit SFP combo slots, making it suitable for IP cameras, access points, VoIP phones, PCs, NVRs, and other PoE-enabled devices. The switch supports IEEE 802.3af/at standards, delivers up to 30W per PoE port, and provides a total PoE budget of 295W. Extend mode supports PoE transmission distances up to 250 meters, while Isolation mode separates traffic between ports 1–12 and 13–24 to improve security and reduce broadcast storms. It also offers port prioritization for ports 1–4, PoE auto recovery, MAC address auto-learning and auto-aging, IEEE 802.3x flow control, and plug-and-play operation with automatic MDI/MDIX. Built with a durable metal housing for better heat dissipation and EMI resistance, the switch measures 440 x 180 x 44 mm and can be installed on a desktop, wall, or in a standard rack.
-
BrandMERCUSYS
-
ModelMS128GP
-
SKU253-0051
-
EAN6957939003791
-
MPNMERCUSYS MS128GP
-
Product Type28-Port Gigabit Rackmount Switch with 24-Port PoE+
-
Ports24 x Gigabit PoE+ RJ45, 2 x Gigabit RJ45 Uplink, 2 x Gigabit SFP Combo
-
PoE StandardIEEE 802.3af/at
-
PoE Power per PortUp to 30W
-
Total PoE Budget295W
-
Switching Capacity56 Gbps
-
MAC Address Table8K
-
Forwarding MethodStore-and-forward
-
Flow ControlIEEE 802.3x
-
Auto FeaturesMAC address auto-learning and auto-aging, automatic MDI/MDIX
-

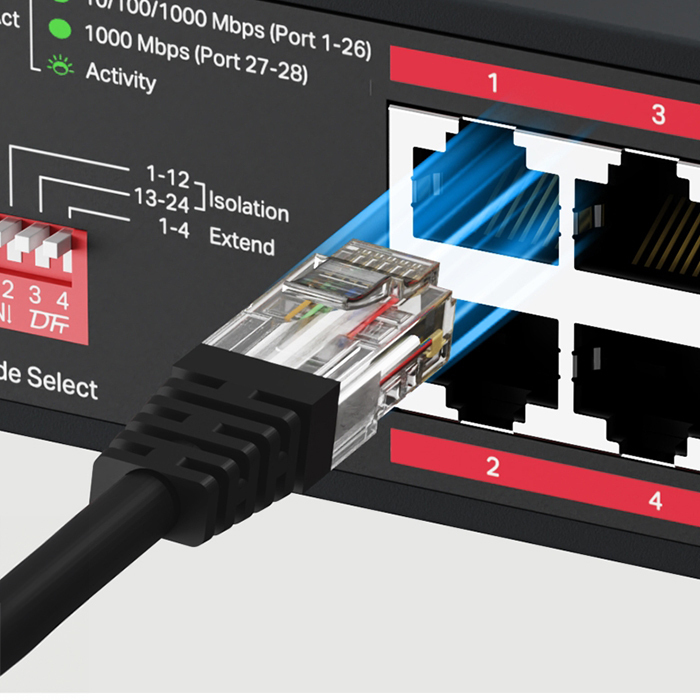

Special ModesIsolation Mode, Extend Mode, Priority Mode, PoE Auto Recovery
-
Isolation Mode RangePorts 1–12 and 13–24
-
Priority PortsPorts 1–4
-
Extend Mode DistanceUp to 250 m
-
Transmission Standards10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
-
Compatible MediaUTP/STP Cat.3 or above, Cat.5 or above, Cat.5e or above, MMF, SMF
-
Power Supply100-240 VAC, 50/60 Hz input; 54V / 0.56A output
-
Maximum Power Consumption350.14W (110V / 60Hz), 336.58W (220V / 50Hz)
-
Standby Power Consumption3.74W (110V / 60Hz), 4.01W (220V / 50Hz)
-
Maximum Heat Dissipation1193.98 BTU/h (110V / 60Hz), 1147.74 BTU/h (220V / 50Hz)
-
Operating Temperature-10°C to 45°C
-
Storage Temperature-40°C to 70°C
-
Operating Humidity10% to 90% non-condensing
-
Storage Humidity5% to 95% non-condensing
-
Dimensions440 x 180 x 44 mm
-
Housing MaterialMetal
-
MountingDesktop, wall mount, rack mount
-
LED IndicatorsConnection/Activity, PoE Status, PoE Max, Power
-
CertificationsCE, RoHS
-
Suitable ForIP cameras, access points, VoIP phones, PCs, NVRs and other PoE devices
-
Package Contents28-Port Gigabit Rackmount Switch with 24-Port PoE+, Power Supply, Mounting Brackets and Accessories, User Manual
-
Cooling2 built-in fans
-
SecurityLocking system
Ratings
Description
The MERCUSYS MS128GP is a 28-port rackmount Gigabit network switch designed for reliable PoE+ deployments in small and medium business environments. It features 24 Gigabit PoE+ RJ45 ports, 2 additional Gigabit RJ45 uplink ports, and 2 Gigabit SFP combo slots, making it suitable for IP cameras, access points, VoIP phones, PCs, NVRs, and other PoE-enabled devices. The switch supports IEEE 802.3af/at standards, delivers up to 30W per PoE port, and provides a total PoE budget of 295W. Extend mode supports PoE transmission distances up to 250 meters, while Isolation mode separates traffic between ports 1–12 and 13–24 to improve security and reduce broadcast storms. It also offers port prioritization for ports 1–4, PoE auto recovery, MAC address auto-learning and auto-aging, IEEE 802.3x flow control, and plug-and-play operation with automatic MDI/MDIX. Built with a durable metal housing for better heat dissipation and EMI resistance, the switch measures 440 x 180 x 44 mm and can be installed on a desktop, wall, or in a standard rack.
Technical Specifications
-
BrandMERCUSYS
-
ModelMS128GP
-
SKU253-0051
-
EAN6957939003791
-
MPNMERCUSYS MS128GP
-
Product Type28-Port Gigabit Rackmount Switch with 24-Port PoE+
-
Ports24 x Gigabit PoE+ RJ45, 2 x Gigabit RJ45 Uplink, 2 x Gigabit SFP Combo
-
PoE StandardIEEE 802.3af/at
-
PoE Power per PortUp to 30W
-
Total PoE Budget295W
-
Switching Capacity56 Gbps
-
MAC Address Table8K
-
Forwarding MethodStore-and-forward
-
Flow ControlIEEE 802.3x
-
Auto FeaturesMAC address auto-learning and auto-aging, automatic MDI/MDIX
-
Special ModesIsolation Mode, Extend Mode, Priority Mode, PoE Auto Recovery
-
Isolation Mode RangePorts 1–12 and 13–24
-
Priority PortsPorts 1–4
-
Extend Mode DistanceUp to 250 m
-
Transmission Standards10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
-
Compatible MediaUTP/STP Cat.3 or above, Cat.5 or above, Cat.5e or above, MMF, SMF
-
Power Supply100-240 VAC, 50/60 Hz input; 54V / 0.56A output
-
Maximum Power Consumption350.14W (110V / 60Hz), 336.58W (220V / 50Hz)
-
Standby Power Consumption3.74W (110V / 60Hz), 4.01W (220V / 50Hz)
-
Maximum Heat Dissipation1193.98 BTU/h (110V / 60Hz), 1147.74 BTU/h (220V / 50Hz)
-
Operating Temperature-10°C to 45°C
-
Storage Temperature-40°C to 70°C
-
Operating Humidity10% to 90% non-condensing
-
Storage Humidity5% to 95% non-condensing
-
Dimensions440 x 180 x 44 mm
-
Housing MaterialMetal
-
MountingDesktop, wall mount, rack mount
-
LED IndicatorsConnection/Activity, PoE Status, PoE Max, Power
-
CertificationsCE, RoHS
-
Suitable ForIP cameras, access points, VoIP phones, PCs, NVRs and other PoE devices
-
Package Contents28-Port Gigabit Rackmount Switch with 24-Port PoE+, Power Supply, Mounting Brackets and Accessories, User Manual
-
Cooling2 built-in fans
-
SecurityLocking system
