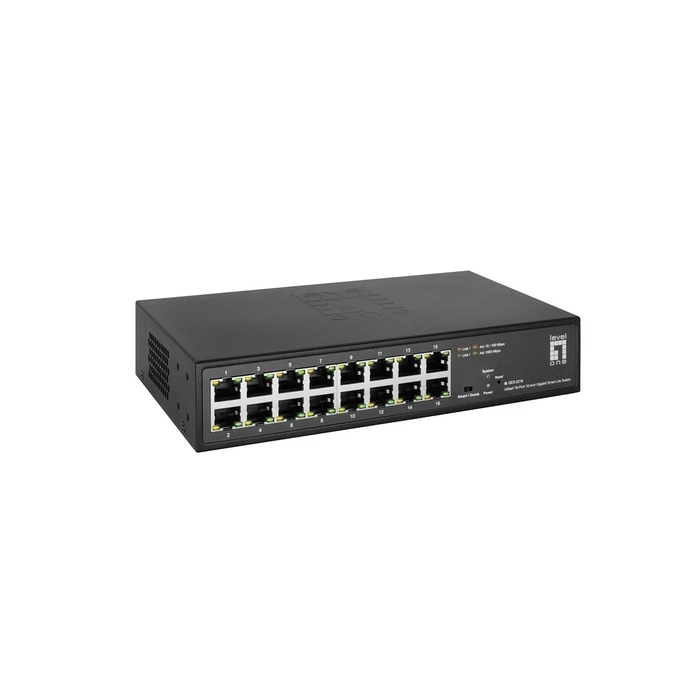

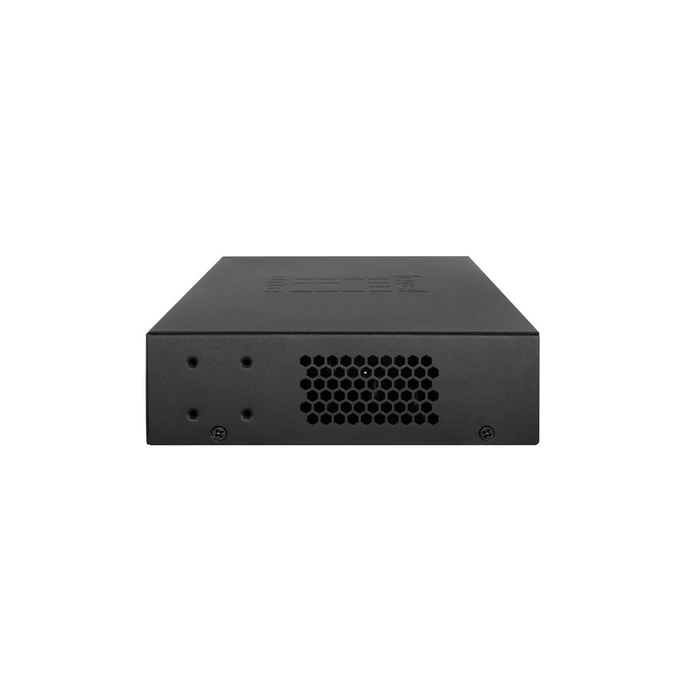

Network Switch LevelOne 16x GE GES-2216 Hilbert 10"

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic Switching RJ-45 Ethernet Ports-Typ
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) ports
  16
• Power plug
  AC input jack
• Network standard
  IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• MAC address table
  8000 entries
• Routing/switching capacity
  32 Gbit/s
• Transferrate
  23808 Mpps
• Certification
  CE, UKCA, FCC Part 15, Subpart B Class B, RoHS
• Switch-Typ
  Managed
• Switch-Ebene
  L2
• Quality of Service (QoS) Support
  Web-based management
• Flash memory
  2 MB
• Cables included
  AC
• Quick start overview
  Rackmontageset
• Packaging type
  Box
• Packaging width
  285 mm
• Packaging depth
  257 mm
• Packaging height
  62 mm
• Package weight
  1,27 kg
• Width
  215 mm
• depth
  150 mm
• Height
  44,5 mm
• Weight
  838 g
• operating temperatur
  0 - 45 °C
• Storage temperature range
  -40 - 70 °C
• Relative humidity in operation
  10 - 90%
• Humidity during storage
  5 - 95%
• Heat dissipation
  35,8 BTU/h
