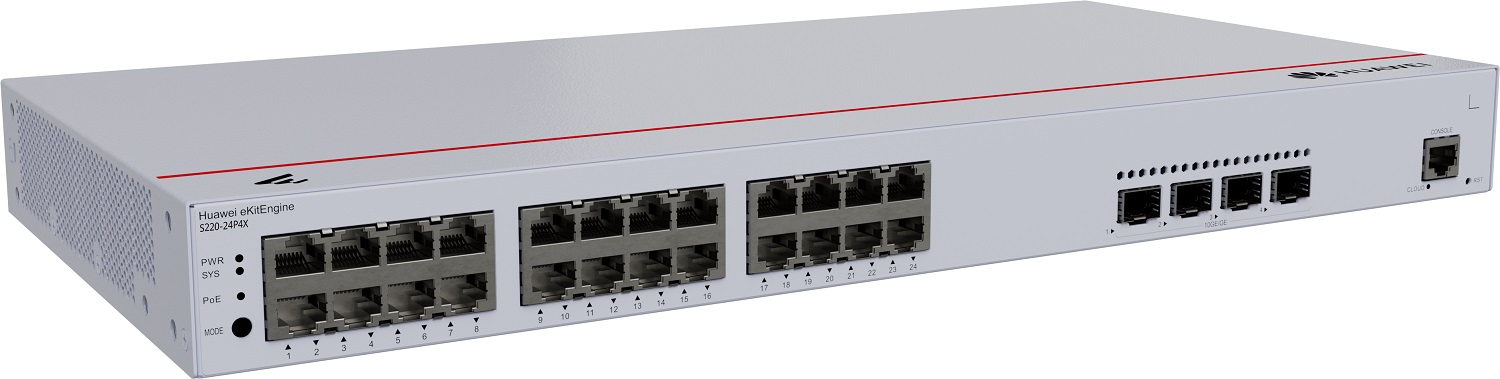

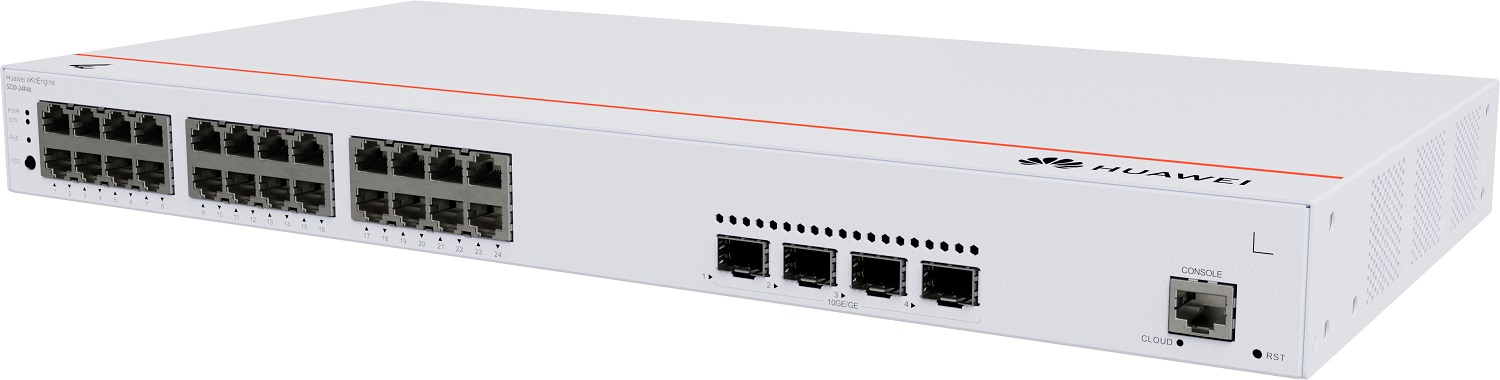

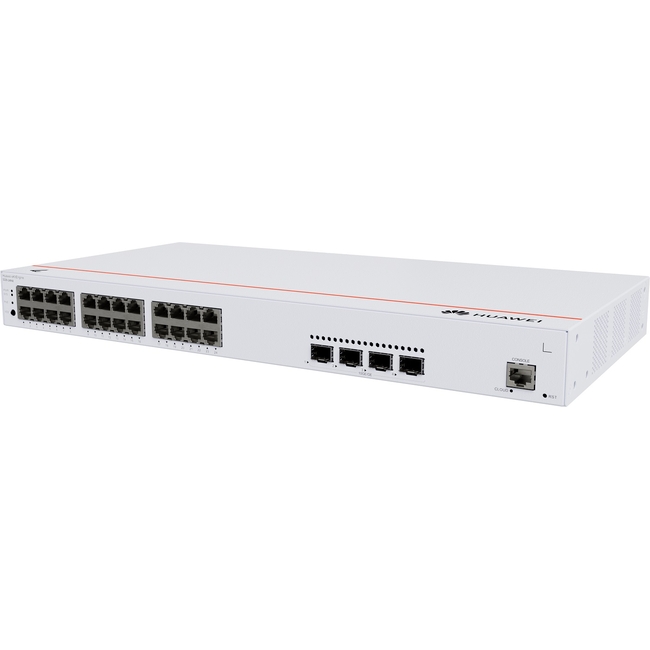

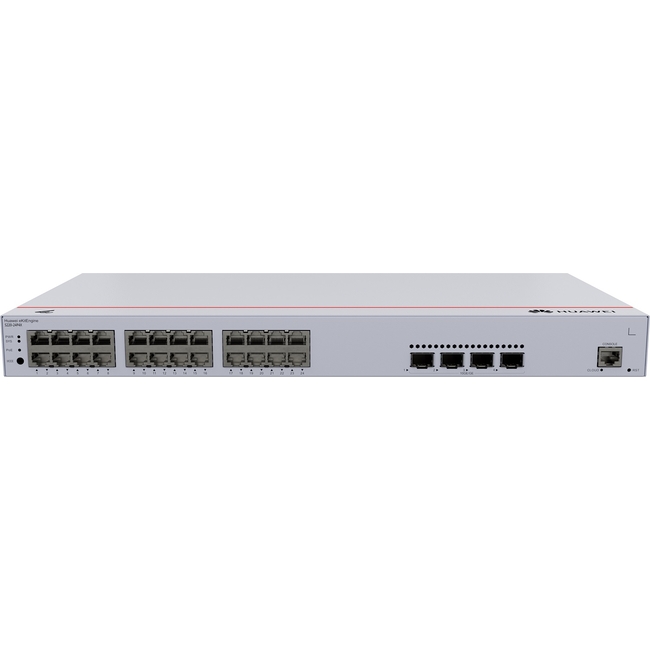

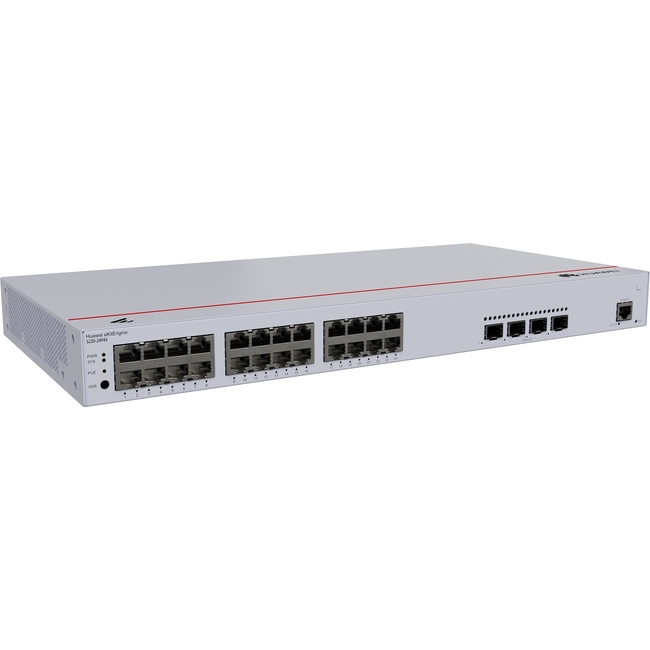

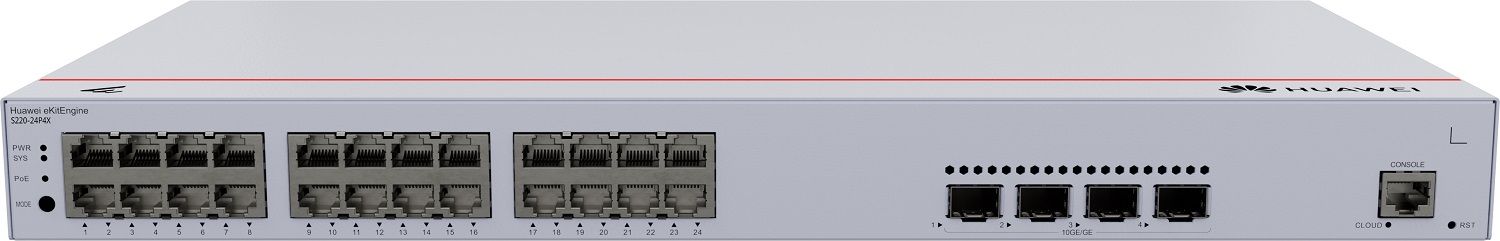

The Huawei eKitEngine S220-24P4X is a managed Layer 2 switch tailored for small office and home office (SOHO) environments, along with small- and medium-sized businesses. This switch belongs to the eKitEngine series, recognized for its flexible Ethernet networking, diversified security control, and rich management methods, which enhance performance and service capabilities.
Key Features:
- Ethernet Ports: Equipped with 24 gigabit Ethernet ports, each supporting 10/100/1000 Mbps with PoE+ capabilities, delivering up to 30 W of power per port, compliant with the 802.3at standard.
- SFP+ Slots: Includes 4 SFP+ slots supporting 10 Gbps connections, offering additional high-speed connectivity options.
- Power Supply: Built-in AC power supply with a maximum power consumption of 485.91 W and active cooling for optimal performance.
- Security: Offers various types of authentication, including MAC address-based and 802.1X authentication, along with external attack protection.
- Management Options: Managed via Web UI, CLI, SNMP, cloud management, and the Huawei eKit application for centralized network management.
The Huawei eKitEngine S220-24P4X ensures efficient data transfer with a switching capacity of 176 Gbps and packet forwarding rates of 131 Mpps. Additionally, it is designed to connect up to 24 access points easily, making it apt for large networks like hotels or schools.
-
Ethernet Ports24 x 10/100/1000BASE-T
-
SFP+ Ports4 x 10GE
-
Switching Capacity176 Gbps
-
Packet Forwarding131 Mpps
-
Power Consumption485.91 W
-
PoE+ Standards802.3af (15.4 W per port), 802.3at (30 W per port)
-
Total Power Budget400 W
Ratings
Description
The Huawei eKitEngine S220-24P4X is a managed Layer 2 switch tailored for small office and home office (SOHO) environments, along with small- and medium-sized businesses. This switch belongs to the eKitEngine series, recognized for its flexible Ethernet networking, diversified security control, and rich management methods, which enhance performance and service capabilities.
Key Features:
- Ethernet Ports: Equipped with 24 gigabit Ethernet ports, each supporting 10/100/1000 Mbps with PoE+ capabilities, delivering up to 30 W of power per port, compliant with the 802.3at standard.
- SFP+ Slots: Includes 4 SFP+ slots supporting 10 Gbps connections, offering additional high-speed connectivity options.
- Power Supply: Built-in AC power supply with a maximum power consumption of 485.91 W and active cooling for optimal performance.
- Security: Offers various types of authentication, including MAC address-based and 802.1X authentication, along with external attack protection.
- Management Options: Managed via Web UI, CLI, SNMP, cloud management, and the Huawei eKit application for centralized network management.
The Huawei eKitEngine S220-24P4X ensures efficient data transfer with a switching capacity of 176 Gbps and packet forwarding rates of 131 Mpps. Additionally, it is designed to connect up to 24 access points easily, making it apt for large networks like hotels or schools.
Technical Specifications
-
Ethernet Ports24 x 10/100/1000BASE-T
-
SFP+ Ports4 x 10GE
-
Switching Capacity176 Gbps
-
Packet Forwarding131 Mpps
-
Power Consumption485.91 W
-
PoE+ Standards802.3af (15.4 W per port), 802.3at (30 W per port)
-
Total Power Budget400 W
