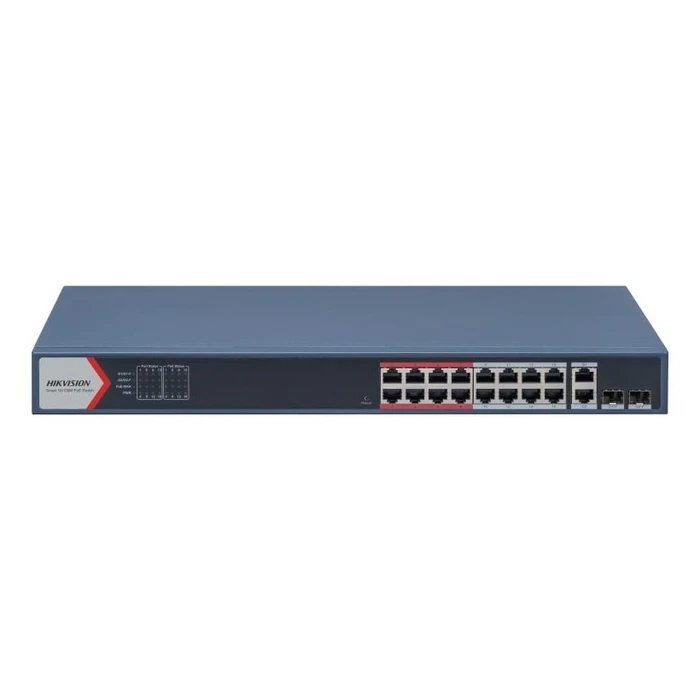

Network Switch Hikvision DS-3E1318P-EI(B) Managed Fast (10/100) (PoE) Blue

Technical Specifications

• Housing material
  Metal
• Product colour
  Blue
• AC input frequency
  50/60 Hz
• AC input voltage
  100 - 240 V
• Input current
  4 A
• Power source
  AC
• Power consumption (max)
  250 W
• Storage temperature (T-T)
  -40 - 85 °C
• Operating relative humidity (H-H)
  5 - 95%
• Operating temperature (T-T)
  -10 - 55 °C
• Storage relative humidity (H-H)
  5 - 95%
• Switch type
  Managed
• Depth
  220.8 mm
• Width
  440 mm
• Height
  44 mm
• Weight
  2.59 kg
• Networking standards
  IEEE 802.3x
• Full duplex
  Yes
• Number of VLANs
  4094
• VLAN support
  Yes
• 10G support
  No
• Flow control support
  Yes
• Auto MDI/MDI-X
  Yes
• Fanless
  Yes
• Package weight
  3.68 kg
• Basic switching RJ-45 Ethernet ports quantity
  16
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Combo SFP ports quantity
  2
• MAC address table
  16000 entries
• Forwarding rate
  5.3568 Mpps
• Switching capacity
  7.2 Gbit/s
• Store-and-forward
  Yes
• Total Power over Ethernet (PoE) budget
  230 W
• Power over Ethernet (PoE)
  Yes
• Power over Ethernet (PoE) ports quantity
  16
• Power over Ethernet (PoE) power per port
  30 W
