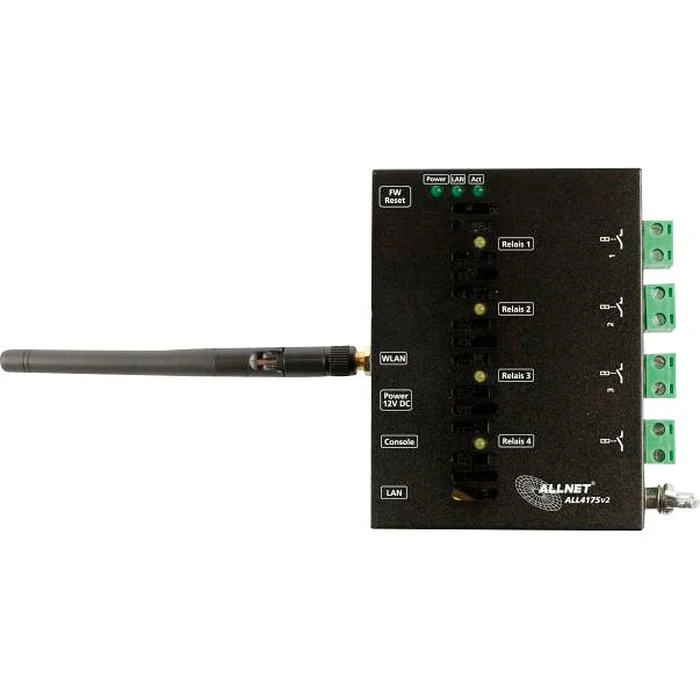

Network Switch Allnet MSR IO Zentrale ALL4175v2 / 4-Way Relay 230VAC / 10A
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
The ALLNET MSR IO Zentrale ALL4175v2 / Netzwerk Schaltger?t 4fach Relais 230VAC/10A is an innovative four-way relay box tailored for switching electrical loads of up to 10 amps. This product is part of the ALLNET automation solutions, providing a plethora of functionalities for effective network-based control and automation.
Key Features:
- Relay Configuration: The device is equipped with four screw terminals (2-pole) for individualized connection of electrical consumers. Users can perform switching processes either manually or through programmable time-controlled settings.
- Network Connectivity: Featuring both wired and wireless capabilities, the ALL4175v2 includes an RJ45 LAN port for 10/100 Mbit/s Ethernet and supports a 2.4 GHz wireless LAN interface (IEEE802.11b/g/n), allowing easy integration into existing WLAN networks.
- Remote Control: Control your device remotely using current ALLNET automation solutions. This includes integration with devices such as the ALL369x Powermeter and others.
- Management and Control: Users can manage the device through a web browser, eliminating the need for additional software. It supports HTTP/HTTPS protocols and TCP/IP for remote operations.
Technical Specifications:
- Connections: 4x relay contact (screw terminal), 1x RJ45 LAN (10/100 Mbit/s), and 1x R-SMA (WLAN)
- Wireless LAN: 2.4 GHz Wireless N, up to 150 Mbps, supporting WEP, WPA, WPA2
- Protocols: Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
- Voltage Range: 200 - 250 volts
- Switching Current: Up to 10 amps per relay
- Dimensions: 105 x 78 x 29 mm (L x W x H)
- Weight: 175 grams
This versatile network relay unit stands out with its robust connectivity and can handle various automation tasks in both manual and programmed environments.
-
Connections4x relay contact (screw terminal), 1x RJ45 LAN (10/100 Mbit/s), 1x R-SMA (WLAN)
-
Wireless LAN2.4 GHz Wireless N up to 150 Mbps, supports WEP, WPA, WPA2
-
ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
-
Voltage Range200 - 250 volts
-
Switching CurrentUp to 10 amps per relay
-
Dimensions105 x 78 x 29 mm
-
Weight175 grams
Ratings
Description
The ALLNET MSR IO Zentrale ALL4175v2 / Netzwerk Schaltger?t 4fach Relais 230VAC/10A is an innovative four-way relay box tailored for switching electrical loads of up to 10 amps. This product is part of the ALLNET automation solutions, providing a plethora of functionalities for effective network-based control and automation.
Key Features:
- Relay Configuration: The device is equipped with four screw terminals (2-pole) for individualized connection of electrical consumers. Users can perform switching processes either manually or through programmable time-controlled settings.
- Network Connectivity: Featuring both wired and wireless capabilities, the ALL4175v2 includes an RJ45 LAN port for 10/100 Mbit/s Ethernet and supports a 2.4 GHz wireless LAN interface (IEEE802.11b/g/n), allowing easy integration into existing WLAN networks.
- Remote Control: Control your device remotely using current ALLNET automation solutions. This includes integration with devices such as the ALL369x Powermeter and others.
- Management and Control: Users can manage the device through a web browser, eliminating the need for additional software. It supports HTTP/HTTPS protocols and TCP/IP for remote operations.
Technical Specifications:
- Connections: 4x relay contact (screw terminal), 1x RJ45 LAN (10/100 Mbit/s), and 1x R-SMA (WLAN)
- Wireless LAN: 2.4 GHz Wireless N, up to 150 Mbps, supporting WEP, WPA, WPA2
- Protocols: Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
- Voltage Range: 200 - 250 volts
- Switching Current: Up to 10 amps per relay
- Dimensions: 105 x 78 x 29 mm (L x W x H)
- Weight: 175 grams
This versatile network relay unit stands out with its robust connectivity and can handle various automation tasks in both manual and programmed environments.
Technical Specifications
-
Connections4x relay contact (screw terminal), 1x RJ45 LAN (10/100 Mbit/s), 1x R-SMA (WLAN)
-
Wireless LAN2.4 GHz Wireless N up to 150 Mbps, supports WEP, WPA, WPA2
-
ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
-
Voltage Range200 - 250 volts
-
Switching CurrentUp to 10 amps per relay
-
Dimensions105 x 78 x 29 mm
-
Weight175 grams
