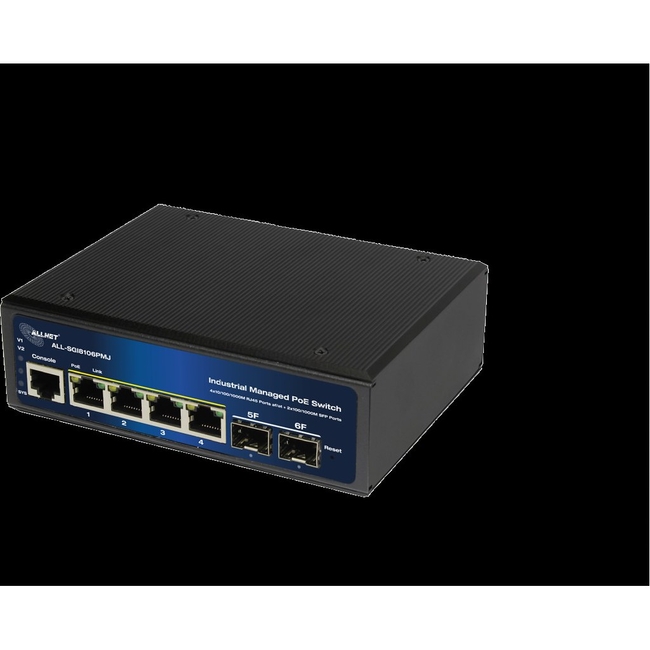

Network Switch 4+2P Allnet ALL-SGI8106PMJ-BT POE M industrial

Description

Technical Specifications

• Copper Ports
  4x 10/100/1000BASE-T RJ45 auto-sensing ports
• Fiber Ports
  2x 100/1000BASE-T SFP interfaces
• PoE Ports
  4x IEEE 802.3af/802.3at/bt PoE injector ports, each capable of delivering up to 90 watts
• Switch Architecture
  Store-and-Forward architecture with a 12 Gbps non-blocking switch fabric
• Throughput
  8.928 Mpps
• Address Table
  8K entries
• Share Data Buffer
  4.1 Mb
• Jumbo Frame
  Supports jumbo frames up to 9216 bytes
• SDRAM
  1 Gb
• Flash Memory
  128 Mb
• Flow Control
  Supports IEEE 802.3x pause frames for full-duplex and back pressure for half-duplex

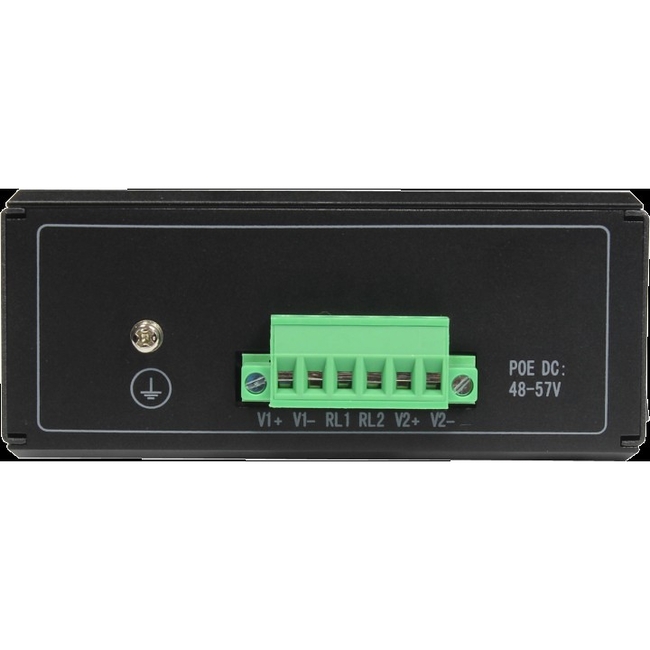

• Power Supply
  48 ~ 57 VDC, 50/60 Hz with dual DC power supply
• LED Indicators
  Includes LED indicators for power, system, and PoE status
• EMC
  Compliant with 6 KV surge protection and 6 KV contact/8 KV air ESD immunity
• Dimensions
  145 x 112 x 47.2 mm
• Weight
  0.6 kg
• Working Temperature
  -40°C to 75°C
• Storage Temperature
  -40°C to 80°C
• Operation Humidity
  5% to 95%, non-condensing
• MTBF
  50,000 hours
