Network Switch 3+1P Allnet ALL-SGO8103P outdoor POE
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber

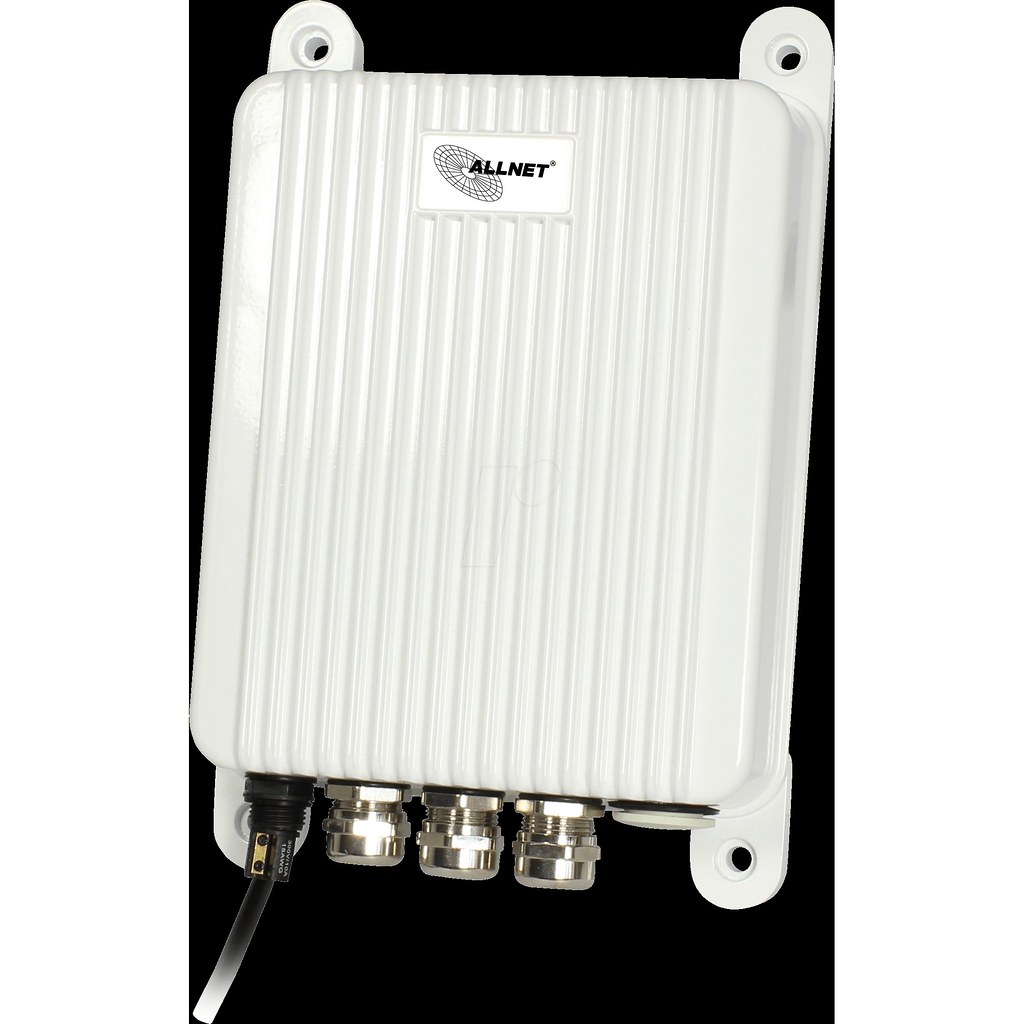

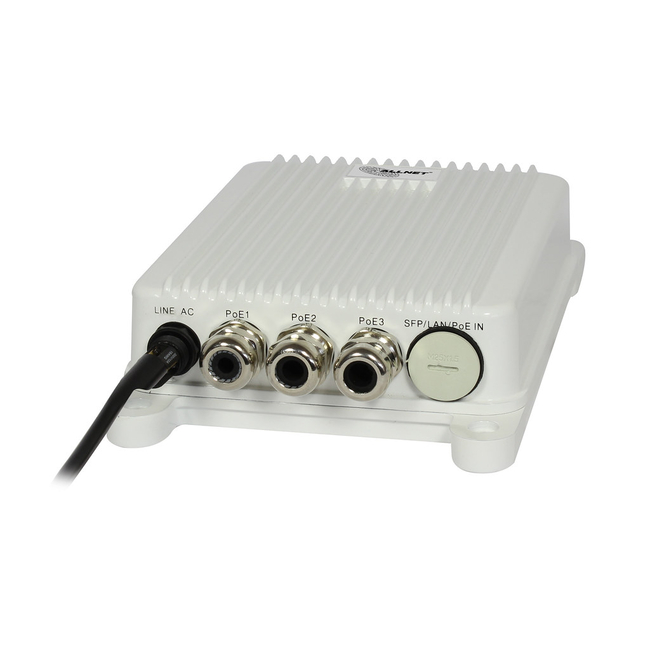

The ALLNET ALL-SGO8103P is a high-performance 4-port unmanaged outdoor PoE switch, engineered to ensure reliable network connectivity even in challenging outdoor conditions.
Constructed with a robust, waterproof IP67 metal casing, this switch is primed for outdoor deployment. It features three Gigabit PoE ports that comply with IEEE802.3af/at standards, providing up to 30W of power per port. The versatility of this switch allows it to effectively power devices such as wireless access points, network cameras, VoIP phones, and other Ethernet terminals where direct power connections are impractical.
Key Features:
- Standards Compliance: Supports a range of Ethernet and PoE standards.
- Durable Protection: IP67 casing ensures complete protection against dust and water.
- Power Output: Capable of delivering 55V at 550mA for efficient PoE functionality.
Physical and Environmental Specs:
- Operating Conditions: Functions optimally from -40°C to +65°C.
- Dimensions: Measuring 176mm x 269mm x 65mm and weighing 2.7 kg.
This device stands out in its ability to handle the infrastructure needs across various sectors such as IT, telecommunications, and security.
-
Ethernet StandardsIEEE802.3 10Base-T, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T
-
PoE StandardsIEEE802.3af, IEEE802.3at
-
PoE Power Output Pins3/6(+) and 1/2(-) for PoE, 4/5(+) and 7/8(-) for Ethernet
-
Output Voltage55V
-
Output Current550mA
-
Input AC Voltage100-240VAC
-
Input AC Current2A
-
AC Frequency50-60Hz
-
Dimensions176mm x 269mm x 65mm
-
Weight2.7 kg
-
Operating Temperature-40°C to +65°C
-
Operating HeightUp to 3048 meters
-
Operating HumidityMaximum 90%, non-condensing
-
AC Input Surge Protection6KV line-to-earth and 6KV common mode
-
PoE Surge Protection6KV common mode and 1.5KV differential mode
-
EMI ComplianceFCC CFR47 Part 15, EN55024, EN55032
-
EMS ComplianceIEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
-
Vibration ComplianceIEC60068-2-6
-
Impact ComplianceIEC60068-2-27
-
Free Fall ComplianceIEC60068-2-32
-
Protection LevelIP67
-
Fanless DesignYes
-
SFP PortYes
-
Mounting OptionsPole mounting with ALL-SGO83 pole kit
Ratings
Description
The ALLNET ALL-SGO8103P is a high-performance 4-port unmanaged outdoor PoE switch, engineered to ensure reliable network connectivity even in challenging outdoor conditions.
Constructed with a robust, waterproof IP67 metal casing, this switch is primed for outdoor deployment. It features three Gigabit PoE ports that comply with IEEE802.3af/at standards, providing up to 30W of power per port. The versatility of this switch allows it to effectively power devices such as wireless access points, network cameras, VoIP phones, and other Ethernet terminals where direct power connections are impractical.
Key Features:
- Standards Compliance: Supports a range of Ethernet and PoE standards.
- Durable Protection: IP67 casing ensures complete protection against dust and water.
- Power Output: Capable of delivering 55V at 550mA for efficient PoE functionality.
Physical and Environmental Specs:
- Operating Conditions: Functions optimally from -40°C to +65°C.
- Dimensions: Measuring 176mm x 269mm x 65mm and weighing 2.7 kg.
This device stands out in its ability to handle the infrastructure needs across various sectors such as IT, telecommunications, and security.
Technical Specifications
-
Ethernet StandardsIEEE802.3 10Base-T, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T
-
PoE StandardsIEEE802.3af, IEEE802.3at
-
PoE Power Output Pins3/6(+) and 1/2(-) for PoE, 4/5(+) and 7/8(-) for Ethernet
-
Output Voltage55V
-
Output Current550mA
-
Input AC Voltage100-240VAC
-
Input AC Current2A
-
AC Frequency50-60Hz
-
Dimensions176mm x 269mm x 65mm
-
Weight2.7 kg
-
Operating Temperature-40°C to +65°C
-
Operating HeightUp to 3048 meters
-
Operating HumidityMaximum 90%, non-condensing
-
AC Input Surge Protection6KV line-to-earth and 6KV common mode
-
PoE Surge Protection6KV common mode and 1.5KV differential mode
-
EMI ComplianceFCC CFR47 Part 15, EN55024, EN55032
-
EMS ComplianceIEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
-
Vibration ComplianceIEC60068-2-6
-
Impact ComplianceIEC60068-2-27
-
Free Fall ComplianceIEC60068-2-32
-
Protection LevelIP67
-
Fanless DesignYes
-
SFP PortYes
-
Mounting OptionsPole mounting with ALL-SGO83 pole kit
