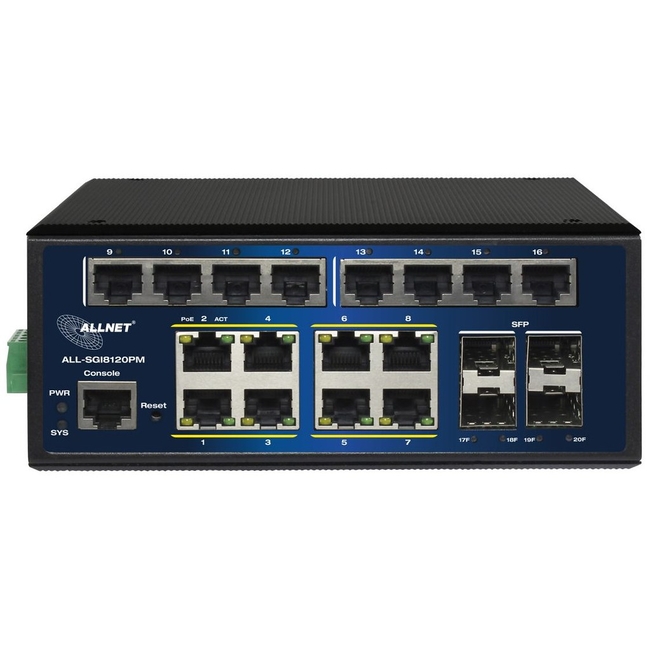

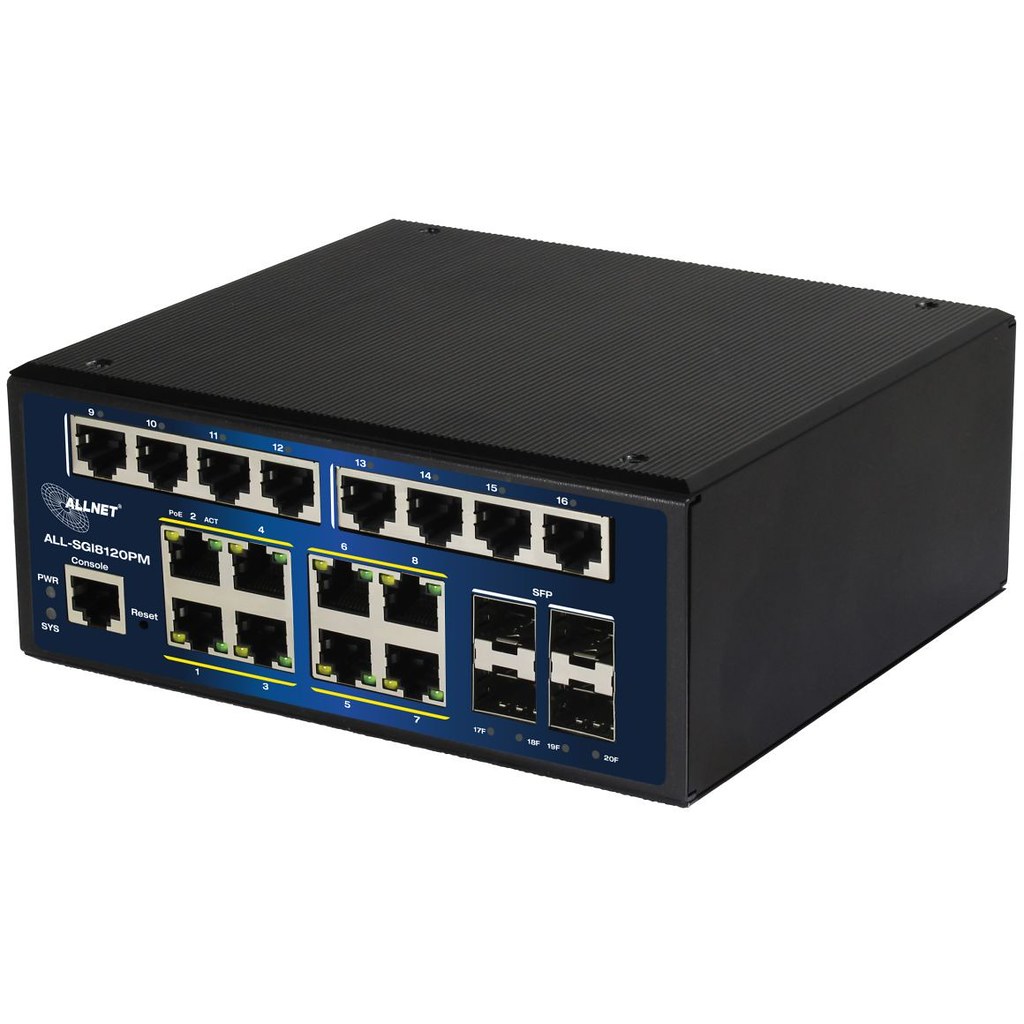

The ALLNET ALL-SGI8120PM is a high-performance, industrial-grade Layer 2+ managed Gigabit PoE switch specifically built for demanding industrial environments. It combines several advanced features and technical specifications that make it perfect for any industrial application.
Key Features:
- PoE Support: Supports up to 8 ports with IEEE 802.3af/at standards, delivering up to 30 watts per port.
- Connectivity Options: Includes 8 Gigabit RJ45 and 4 Gigabit SFP ports for versatile connectivity.
- Management Capabilities: Fully managed with advanced Layer 2+ features including VLAN, Port Isolation, and PoE Management.
- Environmental Durability: Designed with IP40 rugged case and operational temperature range of -40°C to +75°C.
- Fanless Design: Features optimized heat dissipation without cooling fans.
Performance Specifications:
- Switch Fabric: 40 Gbps non-blocking throughput
- Data Buffer: 4.1 Mb
- Dimensions: 165 x 145 x 68 mm
- Weight: 1.5 kg
The ALLNET ALL-SGI8120PM is designed to ensure continuous operation with features like dual DC power supply and advanced monitoring capabilities. This makes it an ideal choice for upgrading or expanding your industrial network infrastructure.
-
PoE Ports8
-
PoE Power per Port30 watts
-
Total PoE Budget240 watts
-
Gigabit RJ45 Ports8
-
Gigabit SFP Ports4
-
Switch Fabric Throughput40 Gbps
-
Data Buffer4.1 Mb
-
Address Table Entries8K
-
Jumbo Frame Size9216 bytes
-
SDRAM1 Gb
-
Flash Memory128 Mb
-
Operating Temperature Range-40°C to +75°C
-
Storage Temperature Range-40°C to +80°C
-
Weight1.5 kg
-
Dimensions165 x 145 x 68 mm
-
MTBF50,000 hours
-
ESD ProtectionESD Level 4
-
EMC Surge Immunity6 KV
Ratings
Description
The ALLNET ALL-SGI8120PM is a high-performance, industrial-grade Layer 2+ managed Gigabit PoE switch specifically built for demanding industrial environments. It combines several advanced features and technical specifications that make it perfect for any industrial application.
Key Features:
- PoE Support: Supports up to 8 ports with IEEE 802.3af/at standards, delivering up to 30 watts per port.
- Connectivity Options: Includes 8 Gigabit RJ45 and 4 Gigabit SFP ports for versatile connectivity.
- Management Capabilities: Fully managed with advanced Layer 2+ features including VLAN, Port Isolation, and PoE Management.
- Environmental Durability: Designed with IP40 rugged case and operational temperature range of -40°C to +75°C.
- Fanless Design: Features optimized heat dissipation without cooling fans.
Performance Specifications:
- Switch Fabric: 40 Gbps non-blocking throughput
- Data Buffer: 4.1 Mb
- Dimensions: 165 x 145 x 68 mm
- Weight: 1.5 kg
The ALLNET ALL-SGI8120PM is designed to ensure continuous operation with features like dual DC power supply and advanced monitoring capabilities. This makes it an ideal choice for upgrading or expanding your industrial network infrastructure.
Technical Specifications
-
PoE Ports8
-
PoE Power per Port30 watts
-
Total PoE Budget240 watts
-
Gigabit RJ45 Ports8
-
Gigabit SFP Ports4
-
Switch Fabric Throughput40 Gbps
-
Data Buffer4.1 Mb
-
Address Table Entries8K
-
Jumbo Frame Size9216 bytes
-
SDRAM1 Gb
-
Flash Memory128 Mb
-
Operating Temperature Range-40°C to +75°C
-
Storage Temperature Range-40°C to +80°C
-
Weight1.5 kg
-
Dimensions165 x 145 x 68 mm
-
MTBF50,000 hours
-
ESD ProtectionESD Level 4
-
EMC Surge Immunity6 KV
