OM2 multimode fiber optic patch cable with ST/UPC connectors on both ends and a length of 10 meters. Designed for network interconnects, data centers, and optical communication installations requiring reliable low-loss transmission. The cable uses 50/125 um fiber, with typical connector loss of...
More

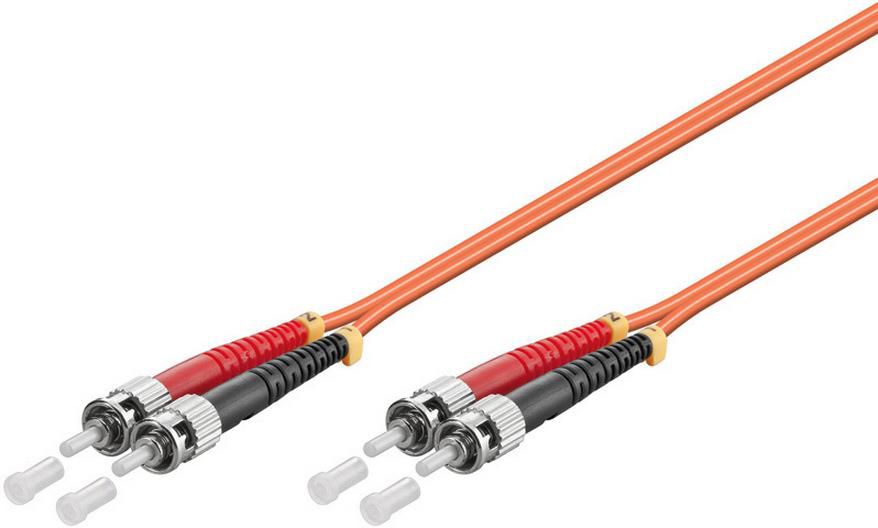

Network Cables Fiber Patch Cable ST UPC ST UPC 10m OM2 MM
Product Code: 1200654868
Available in 4 - 10 days
22,10 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
OM2 multimode fiber optic patch cable with ST/UPC connectors on both ends and a length of 10 meters. Designed for network interconnects, data centers, and optical communication installations requiring reliable low-loss transmission. The cable uses 50/125 um fiber, with typical connector loss of 0.30 dB, maximum connector loss of 0.50 dB, and typical return loss of -55 dB. Available with PVC or LSZH jacket options and typically offered in duplex construction with an outside diameter of 2.0 mm or 3.0 mm. The ferrule is zirconia ceramic, the cable is RoHS compliant, and it is manufactured to TIA 604 (FOCIS), IEC 61754, and YD/T standards. The product is 100 percent optically tested for insertion loss.
-
Fiber TypeOM2 multimode 50/125 um
-
Cable Length10 meters
-
Connector TypeST/UPC to ST/UPC
-
ConfigurationDuplex
-
Cable Outside Diameter2.0 mm or 3.0 mm
-
Jacket MaterialPVC or LSZH
-
Ferrule MaterialZirconia ceramic
-
Maximum Connector Loss0.50 dB
-
Typical Connector Loss0.30 dB
-
Typical Return Loss-55 dB
-
Attenuation at 1310 nmApproximately 0.36 dB/km
-
Minimum Bend Radius7.5 mm
-
Testing100 percent optically tested for insertion loss
-
ComplianceRoHS compliant
-
StandardsTIA 604 FOCIS, IEC 61754, YD/T
-
ApplicationData centers, network closets, optical network interconnects
-
Connector Dimensions9.8 mm H x 19.6 mm W x 59 mm D
-
Fiber Core/Cladding50/125 um
Ratings
Description
OM2 multimode fiber optic patch cable with ST/UPC connectors on both ends and a length of 10 meters. Designed for network interconnects, data centers, and optical communication installations requiring reliable low-loss transmission. The cable uses 50/125 um fiber, with typical connector loss of 0.30 dB, maximum connector loss of 0.50 dB, and typical return loss of -55 dB. Available with PVC or LSZH jacket options and typically offered in duplex construction with an outside diameter of 2.0 mm or 3.0 mm. The ferrule is zirconia ceramic, the cable is RoHS compliant, and it is manufactured to TIA 604 (FOCIS), IEC 61754, and YD/T standards. The product is 100 percent optically tested for insertion loss.
Technical Specifications
-
Fiber TypeOM2 multimode 50/125 um
-
Cable Length10 meters
-
Connector TypeST/UPC to ST/UPC
-
ConfigurationDuplex
-
Cable Outside Diameter2.0 mm or 3.0 mm
-
Jacket MaterialPVC or LSZH
-
Ferrule MaterialZirconia ceramic
-
Maximum Connector Loss0.50 dB
-
Typical Connector Loss0.30 dB
-
Typical Return Loss-55 dB
-
Attenuation at 1310 nmApproximately 0.36 dB/km
-
Minimum Bend Radius7.5 mm
-
Testing100 percent optically tested for insertion loss
-
ComplianceRoHS compliant
-
StandardsTIA 604 FOCIS, IEC 61754, YD/T
-
ApplicationData centers, network closets, optical network interconnects
-
Connector Dimensions9.8 mm H x 19.6 mm W x 59 mm D
-
Fiber Core/Cladding50/125 um
