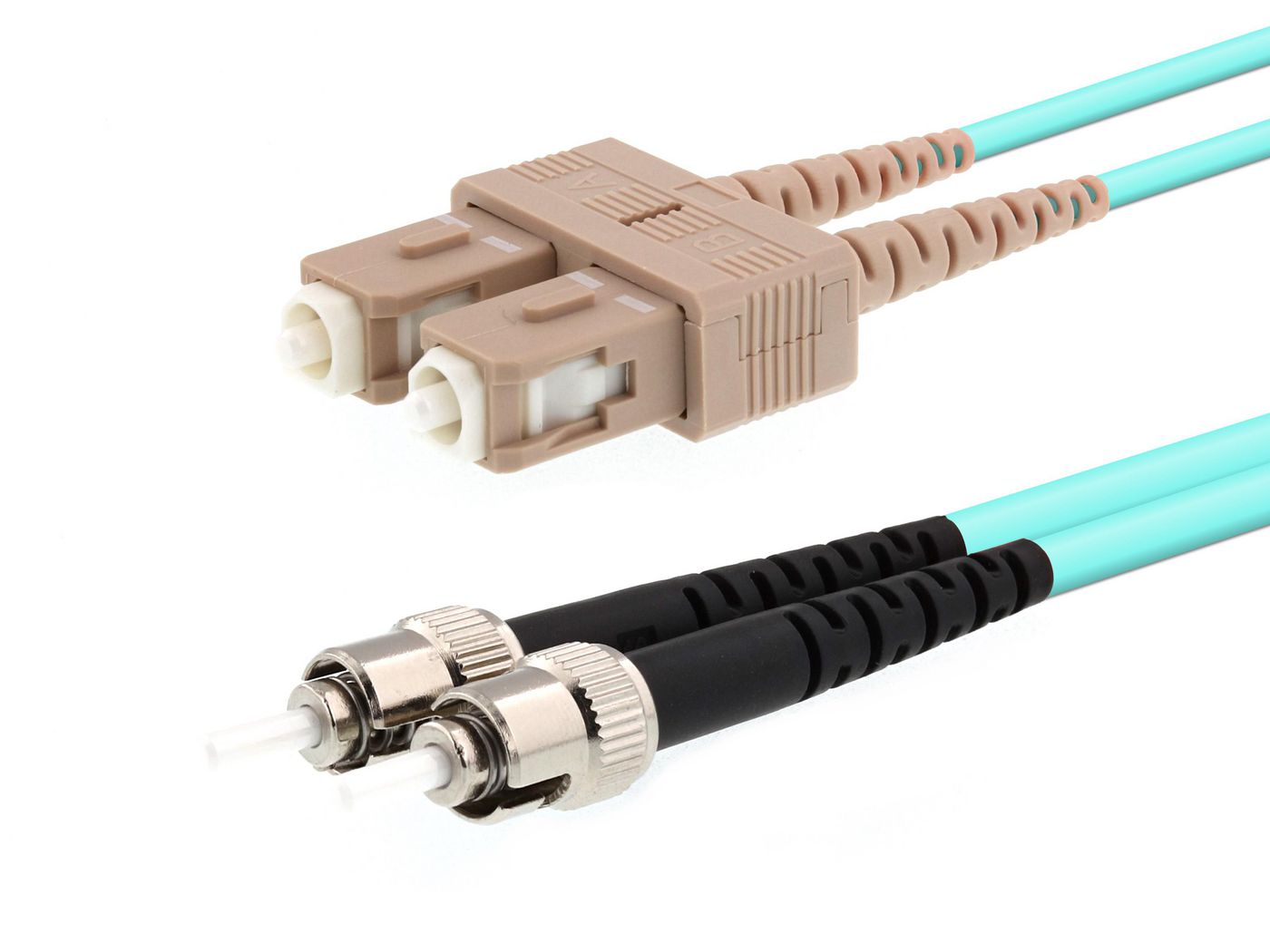

The Fiber Patch Cable ST/UPC-SC/UPC 5m OM3 MM is a duplex multimode fiber optic patch cable designed for high-speed networking and data communications. It features ST/UPC to SC/UPC connectors, a 5 meter length, and OM3 50/125 µm laser-optimized multimode fiber for 10G applications. The cable is...
More
Network Cables Fiber Patch Cable ST UPC SC UPC 5m OM3 MM
Product Code: 1200653970
Available in 4 - 10 days
13,02 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Fiber Patch Cable ST/UPC-SC/UPC 5m OM3 MM is a duplex multimode fiber optic patch cable designed for high-speed networking and data communications. It features ST/UPC to SC/UPC connectors, a 5 meter length, and OM3 50/125 µm laser-optimized multimode fiber for 10G applications. The cable is aqua colored and uses ceramic zirconia ferrules for reliable performance. Reported specifications include low insertion loss, high return loss, UPC polishing, and a riser or LSZH jacket depending on supplier variant. The product is identified by SKU and MPN FIB122005 and EAN 5704327182108, with no confirmed brand name provided in the available data.
-
Connector TypeST/UPC to SC/UPC
-
Cable TypeDuplex multimode fiber optic patch cable
-
Cable Length5 m
-
Fiber TypeOM3 multimode
-
Core Diameter50/125 µm
-
Polishing TypeUPC
-
Insertion Loss≤ 0.30 dB
-
Return Loss≥ 55 dB
-
Ferrule MaterialCeramic zirconia
-
Ferrule Diameter1.25 mm SC and 2.5 mm ST
-
Jacket MaterialOFNR or LSZH
-
Jacket ColorAqua
-
Cable Diameter2.0 mm typical duplex
-
Operating Temperature-20°C to +70°C
-
ApplicationHigh-speed 10G networking and data communications
-
CompliancesTIA 604 FOCIS and IEC 61754
-
SKUFIB122005
-
MPNFIB122005
-
EAN5704327182108
-
BrandUnbranded
Ratings
Description
The Fiber Patch Cable ST/UPC-SC/UPC 5m OM3 MM is a duplex multimode fiber optic patch cable designed for high-speed networking and data communications. It features ST/UPC to SC/UPC connectors, a 5 meter length, and OM3 50/125 µm laser-optimized multimode fiber for 10G applications. The cable is aqua colored and uses ceramic zirconia ferrules for reliable performance. Reported specifications include low insertion loss, high return loss, UPC polishing, and a riser or LSZH jacket depending on supplier variant. The product is identified by SKU and MPN FIB122005 and EAN 5704327182108, with no confirmed brand name provided in the available data.
Technical Specifications
-
Connector TypeST/UPC to SC/UPC
-
Cable TypeDuplex multimode fiber optic patch cable
-
Cable Length5 m
-
Fiber TypeOM3 multimode
-
Core Diameter50/125 µm
-
Polishing TypeUPC
-
Insertion Loss≤ 0.30 dB
-
Return Loss≥ 55 dB
-
Ferrule MaterialCeramic zirconia
-
Ferrule Diameter1.25 mm SC and 2.5 mm ST
-
Jacket MaterialOFNR or LSZH
-
Jacket ColorAqua
-
Cable Diameter2.0 mm typical duplex
-
Operating Temperature-20°C to +70°C
-
ApplicationHigh-speed 10G networking and data communications
-
CompliancesTIA 604 FOCIS and IEC 61754
-
SKUFIB122005
-
MPNFIB122005
-
EAN5704327182108
-
BrandUnbranded
