The Fiber Patch Cable with SKU W126918125 and MPN W126918125 is a 12-core MTP UPC female to MTP UPC female fiber optic patch cable designed for high-density data center interconnects. It supports 40G and 100G Ethernet applications with low insertion loss and Type B polarity. This is a multimode MPO...
More

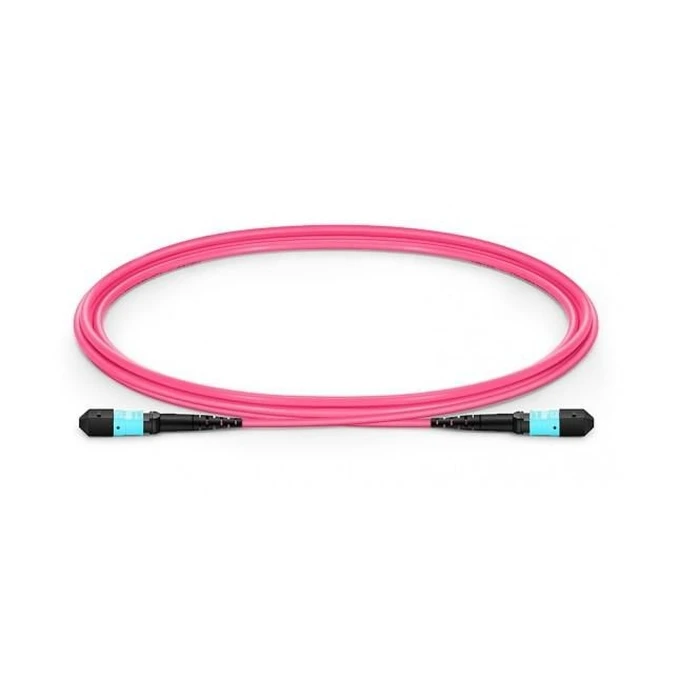

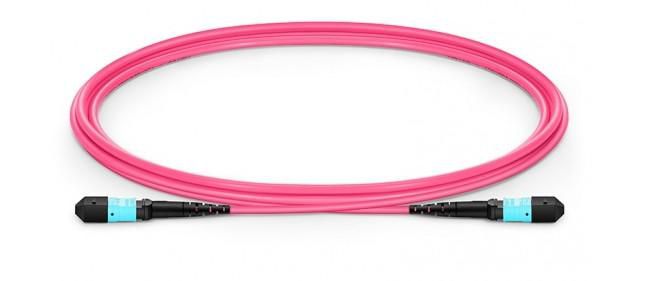

Network Cables Fiber Patch Cable 12 cores MTP UPC MTP UPC female W126918125
Product Code: 1200657838
Available in 4 - 10 days
91,85 €
or
2,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Fiber Patch Cable with SKU W126918125 and MPN W126918125 is a 12-core MTP UPC female to MTP UPC female fiber optic patch cable designed for high-density data center interconnects. It supports 40G and 100G Ethernet applications with low insertion loss and Type B polarity. This is a multimode MPO MTP patch cord intended for trunk, harness, and breakout cabling in data centers. It uses MTP MPO 12 UPC connectors with female polarity on both ends, meaning no pins, and a single push-on enclosure for quick installation. Typical construction is OM4 50/125 um or OM5 laser-optimized multimode fiber with LSZH or OFNP jacket options and an outer diameter around 3.0 mm. No official brand is identified in the available data.
-
SKUW126918125
-
MPNW126918125
-
EAN5704174870982
-
Product TypeFiber optic patch cable
-
Cable TypeMPO MTP multi-fiber optic patch cable
-
Fiber Count12 cores
-
Connector AMTP MPO 12 UPC female
-
Connector BMTP MPO 12 UPC female
-
PolarityType B
-
Fiber ModeMultimode
-
Fiber SpecificationOM4 50/125 um or OM5 laser-optimized
-
Wavelength850/1300 nm
-
Insertion LossMax 0.35 to 0.50 dB per connector
-
Typical Insertion Loss0.10 dB
-
Return Loss20 dB or greater
-
Jacket MaterialLSZH or OFNP
-
Jacket ColorLime green, aqua, or magenta depending on fiber type
-
Cable Diameter3.0 mm
-
Bend Radius10x no load, 15x loaded
-
Transmission Distances1 GbE up to 1100 m, 10 GbE up to 300 m, 40 GbE up to 100 m, 100 GbE up to 100 m
-
Operating Temperature0 C to 70 C
-
Storage Temperature-40 C to 70 C
-
Use CaseHigh-density data center interconnects
-
Applications40G Ethernet, 100G Ethernet, trunk cabling, harness cabling, breakout cabling
-
Connector PolishUPC
-
Ferrule TypePrecision UPC polish
-
ConstructionSingle push-on enclosure, plug-and-play design
-
BrandNot specified
Ratings
Description
The Fiber Patch Cable with SKU W126918125 and MPN W126918125 is a 12-core MTP UPC female to MTP UPC female fiber optic patch cable designed for high-density data center interconnects. It supports 40G and 100G Ethernet applications with low insertion loss and Type B polarity. This is a multimode MPO MTP patch cord intended for trunk, harness, and breakout cabling in data centers. It uses MTP MPO 12 UPC connectors with female polarity on both ends, meaning no pins, and a single push-on enclosure for quick installation. Typical construction is OM4 50/125 um or OM5 laser-optimized multimode fiber with LSZH or OFNP jacket options and an outer diameter around 3.0 mm. No official brand is identified in the available data.
Technical Specifications
-
SKUW126918125
-
MPNW126918125
-
EAN5704174870982
-
Product TypeFiber optic patch cable
-
Cable TypeMPO MTP multi-fiber optic patch cable
-
Fiber Count12 cores
-
Connector AMTP MPO 12 UPC female
-
Connector BMTP MPO 12 UPC female
-
PolarityType B
-
Fiber ModeMultimode
-
Fiber SpecificationOM4 50/125 um or OM5 laser-optimized
-
Wavelength850/1300 nm
-
Insertion LossMax 0.35 to 0.50 dB per connector
-
Typical Insertion Loss0.10 dB
-
Return Loss20 dB or greater
-
Jacket MaterialLSZH or OFNP
-
Jacket ColorLime green, aqua, or magenta depending on fiber type
-
Cable Diameter3.0 mm
-
Bend Radius10x no load, 15x loaded
-
Transmission Distances1 GbE up to 1100 m, 10 GbE up to 300 m, 40 GbE up to 100 m, 100 GbE up to 100 m
-
Operating Temperature0 C to 70 C
-
Storage Temperature-40 C to 70 C
-
Use CaseHigh-density data center interconnects
-
Applications40G Ethernet, 100G Ethernet, trunk cabling, harness cabling, breakout cabling
-
Connector PolishUPC
-
Ferrule TypePrecision UPC polish
-
ConstructionSingle push-on enclosure, plug-and-play design
-
BrandNot specified
