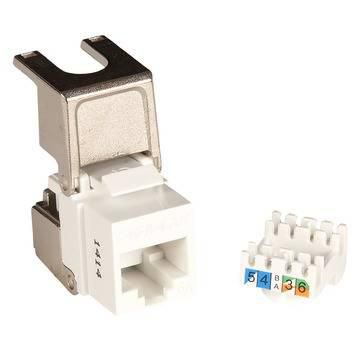

The PRO Cat6a Unshielded Flip Jack Keystone is a Cat6A UTP keystone jack module designed for high-performance Ethernet cabling. It supports up to 10GBASE-T over 100 meters and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA specifications. The module uses a toolless or flip-up IDC...
More
Network Cable PRO Cat6a Unshielded Flip Jack Keystone
Product Code: 1200653149
Available in 4 - 10 days
6,92 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PRO Cat6a Unshielded Flip Jack Keystone is a Cat6A UTP keystone jack module designed for high-performance Ethernet cabling. It supports up to 10GBASE-T over 100 meters and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA specifications. The module uses a toolless or flip-up IDC termination style for fast installation without special punchdown tools, and it accepts AWG 22-26 solid or stranded conductors. It is compatible with PoE, PoE+, and PoE++ applications up to 100W. The keystone form factor fits standard wall plates, patch panels, and surface-mount enclosures, making it suitable for structured cabling installations. Built with a PC or ABS housing and phosphor bronze contacts with gold plating, it is designed for reliable signal performance, durability, and backward compatibility with lower category cabling.
-
Product TypeCat6A UTP Keystone Jack
-
BrandPRO
-
ModelW125941387
-
SKUW125941387
-
MPNW125941387
-
EAN5704174319085
-
CategoryNetwork Cable Accessories
-
ShieldingUnshielded (UTP)
-
Termination TypeToolless Flip-Up IDC
-
Connector TypeRJ45 Female to RJ45 Female
-
Category RatingCat6A
-
StandardsANSI/TIA-568.2-D, ISO/IEC 11801 Class EA
-
Maximum Data Rate10GBASE-T
-
Maximum Channel Length100 m
-
Frequency500 MHz
-
PoE SupportPoE, PoE+, PoE++ up to 100W
-
Wire GaugeAWG 22-26
-
Cable DiameterApproximately 5-8 mm
-
Wiring SchemeT568A / T568B
-
Contact MaterialPhosphor Bronze
-
Contact PlatingGold plated
-
Housing MaterialPC or ABS
-
Operating Temperature-10°C to 60°C
-
Storage Temperature-40°C to 70°C
-
Insulation Resistance≥500 MΩ @ 500 V DC
-
Contact Resistance≤20 mΩ
-
Dielectric Withstand Voltage1000 V DC/AC peak for 1 minute
-
Current Rating1.5 A
-
Keystone Form FactorYes
-
CompatibilityWall plates, patch panels, surface-mount boxes
-
ColorWhite/Black
-
DurabilityIDC 250+ cycles, RJ45 insertion 750+ cycles
Ratings
Description
The PRO Cat6a Unshielded Flip Jack Keystone is a Cat6A UTP keystone jack module designed for high-performance Ethernet cabling. It supports up to 10GBASE-T over 100 meters and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA specifications. The module uses a toolless or flip-up IDC termination style for fast installation without special punchdown tools, and it accepts AWG 22-26 solid or stranded conductors. It is compatible with PoE, PoE+, and PoE++ applications up to 100W. The keystone form factor fits standard wall plates, patch panels, and surface-mount enclosures, making it suitable for structured cabling installations. Built with a PC or ABS housing and phosphor bronze contacts with gold plating, it is designed for reliable signal performance, durability, and backward compatibility with lower category cabling.
Technical Specifications
-
Product TypeCat6A UTP Keystone Jack
-
BrandPRO
-
ModelW125941387
-
SKUW125941387
-
MPNW125941387
-
EAN5704174319085
-
CategoryNetwork Cable Accessories
-
ShieldingUnshielded (UTP)
-
Termination TypeToolless Flip-Up IDC
-
Connector TypeRJ45 Female to RJ45 Female
-
Category RatingCat6A
-
StandardsANSI/TIA-568.2-D, ISO/IEC 11801 Class EA
-
Maximum Data Rate10GBASE-T
-
Maximum Channel Length100 m
-
Frequency500 MHz
-
PoE SupportPoE, PoE+, PoE++ up to 100W
-
Wire GaugeAWG 22-26
-
Cable DiameterApproximately 5-8 mm
-
Wiring SchemeT568A / T568B
-
Contact MaterialPhosphor Bronze
-
Contact PlatingGold plated
-
Housing MaterialPC or ABS
-
Operating Temperature-10°C to 60°C
-
Storage Temperature-40°C to 70°C
-
Insulation Resistance≥500 MΩ @ 500 V DC
-
Contact Resistance≤20 mΩ
-
Dielectric Withstand Voltage1000 V DC/AC peak for 1 minute
-
Current Rating1.5 A
-
Keystone Form FactorYes
-
CompatibilityWall plates, patch panels, surface-mount boxes
-
ColorWhite/Black
-
DurabilityIDC 250+ cycles, RJ45 insertion 750+ cycles
