Netatmo Smart Radiator Valves Starter Pack (DE)

Description

Technical Specifications

• Brand
  Netatmo
• Model / MPN
  NVP-DE
• SKU
  21178482
• EAN / Barcode
  3700730501569
• Set contents

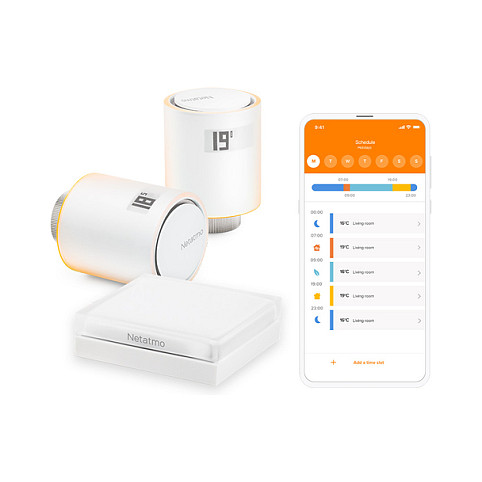

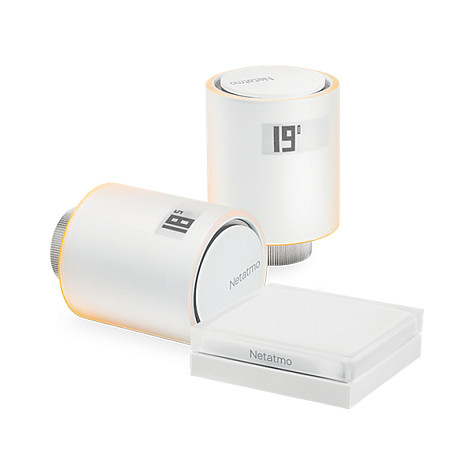

  2× Smart Radiator Thermostats, 1× Relay/Bridge, multiple valve adapters, 2× AA batteries per thermostat, 4× colour stickers
• Compatibility
  Warm-water / central heating radiators; compatible with ~90% of radiator valve types
• Communication (thermostat→relay)
  Proprietary encrypted radio (868.9–869.1 MHz / 869.7–869.9 MHz)
• Communication (relay→internet)
  Wi‑Fi 802.11 b/g/n (2.4 GHz)
• Range
  Up to 100 m between thermostat and relay (open space)
• Display
  e‑paper display showing ambient temperature and setpoint
• Sensors
  2 integrated temperature sensors
• Control algorithm
  PID algorithm for smooth temperature regulation
• Battery life
  Up to 2 years (2× AA per thermostat)
• Temperature measurement range
  0 °C to 50 °C
• Setpoint (target) range
  5 °C to 30 °C
• Setpoint step resolution
  0.5 °C
• Measurement accuracy
  ±0.5 °C
• Motor stroke (max)
  8 mm
• Noise level
  < 35 dBA
• Spring force (max)
  80 N
• Max valves per installation
  Up to 20 valves controllable
• Voice assistants supported
  Apple HomeKit, Amazon Alexa, Google Assistant
• App control
  Smartphone/Tablet/Web app (Netatmo)
• Security
  Encrypted communication between devices and relay
• Relay dimensions
  83 × 83 × 24 mm
• Thermostat dimensions
  Ø 58 mm × 80 mm length
• Thermostat weight
  186 g (including batteries)
• Relay weight
  110 g (without power adapter)
• Design
  Designed by Philippe Starck
• WLAN security supported
  Open / WEP / WPA / WPA2-Personal (TKIP and AES)
• Use case
  Suitable for apartments and houses, including buildings with collective heating
